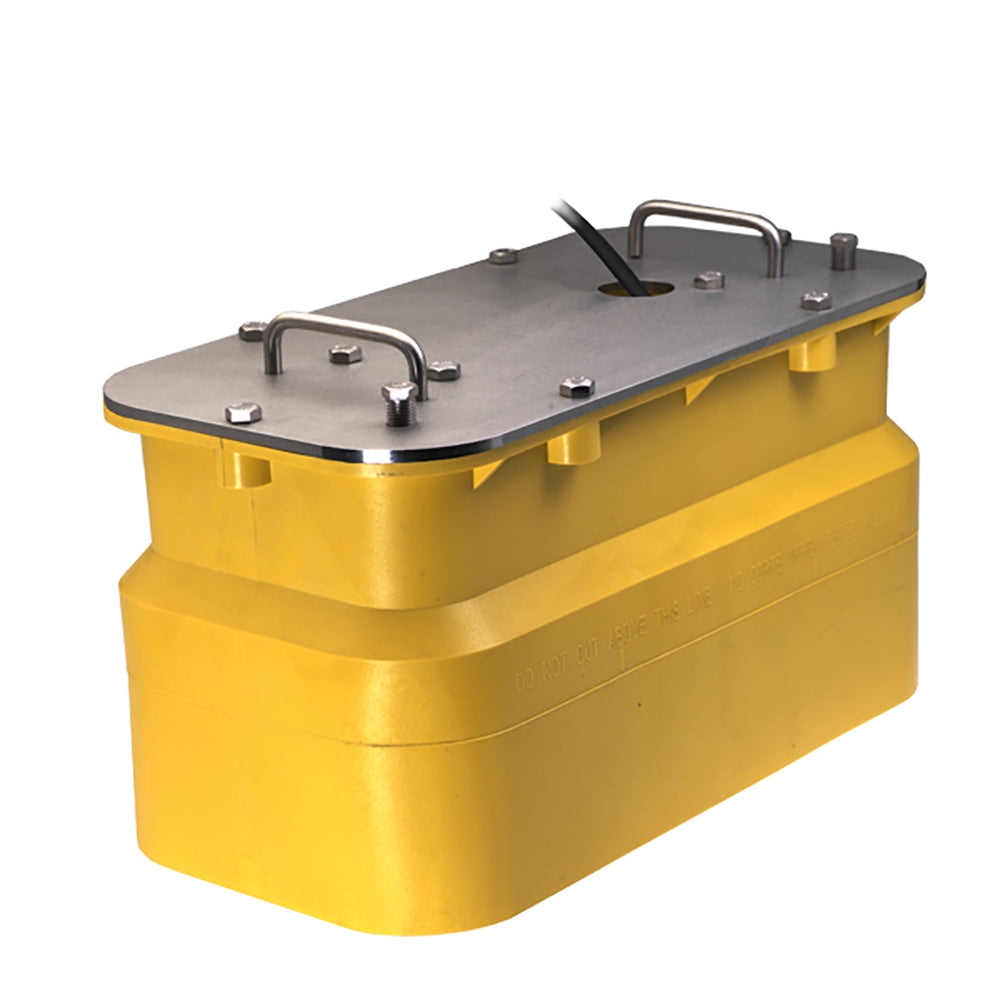

The Airmar R599LM is the elite model in the Chirp In-Hull product line, purpose-built for commercial fishermen, charter captains, and tournament anglers who demand maximum bottom-detection performance. CHIRP technology delivers 5 to 10 times greater detail and resolution compared to conventional transducers, making it possible to distinguish individual baitfish, game fish, and underwater structures down to 3,000 m (10,000 ft). A single installation provides up to 102 kHz of total bandwidth across Low Frequency (28–60 kHz) and Medium Frequency (80–130 kHz) bands, and Airmar's exclusive Xducer ID® technology ensures seamless sounder recognition.

Specifications:

• Frequency Bands: Low 28–60 kHz / Medium 80–130 kHz
• Technology: CHIRP broadband
• Power: 2–3 kW
• Internal Ceramics: 25
• Acoustic Window: Epoxy/urethane
• Hull Deadrise: 0° to 22°
• Mounting: All hardware included, tank included
• Weight: 19.7 kg (43.4 lb)
• Output: Depth only
• Special Feature: Exclusive Xducer ID® technology
• Cable Termination: Bare wire

Resources:

• Installation Guide (PDF)

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
