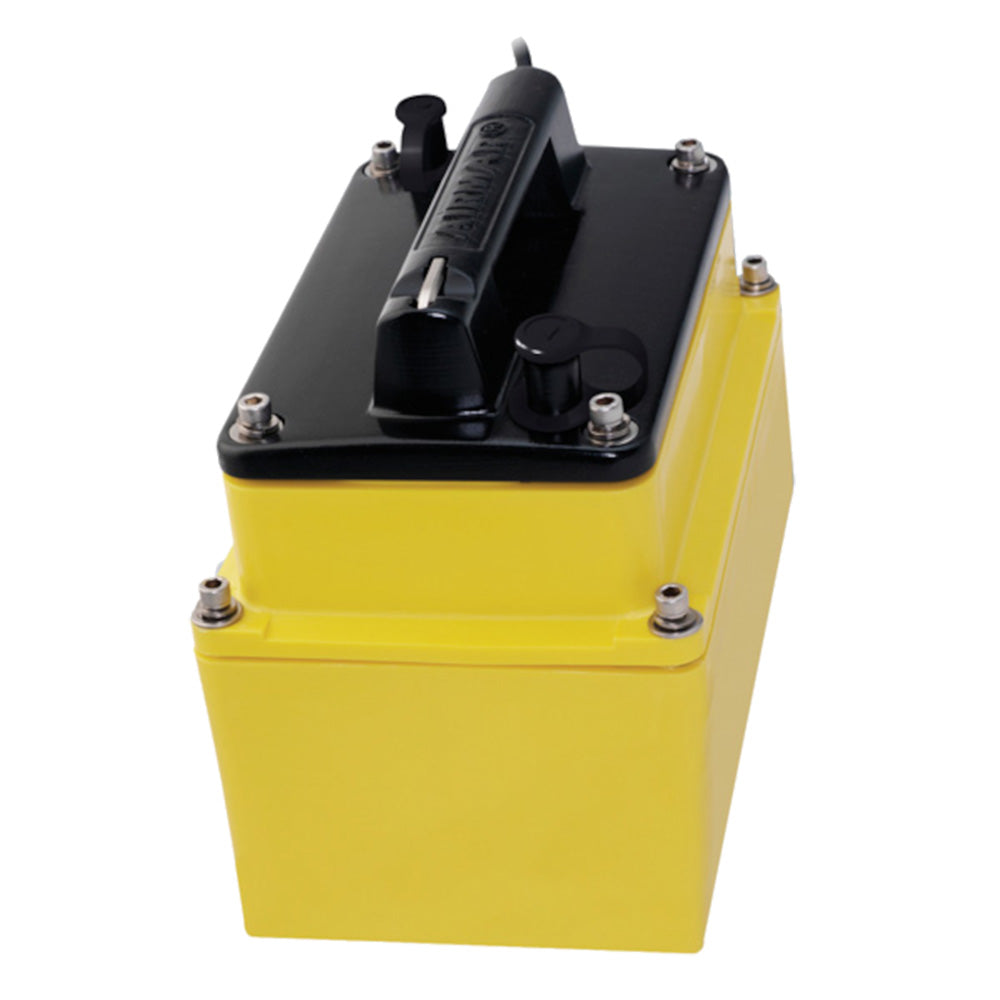

The Airmar M265LH covers 103 kHz of total bandwidth from a single in-hull transducer, targeting the precise frequencies that matter most — 60 kHz for bluefin tuna, 133 kHz for squid, 175 kHz for cod — along with everything else within its low and high bands. A seven-element low-frequency array operates from 42 to 65 kHz for deep-water reach, while the high-frequency ceramic element spans 130 to 210 kHz with a tight 10° to 6° beamwidth for precise structure and fish separation. Installation uses the included mounting tank, which is trimmed to the hull's deadrise angle and bonded inside the hull — no through-hull drilling required, making it well-suited for trailered or lifted vessels. A Mix & Match Cable is required and sold separately.

Features:

• Depth-only function
• 1 kW power output for strong deep-water performance
• Low frequency: 42–65 kHz, 25° to 16° beamwidth, maximum depth 914 m (3,000 ft)
• High frequency: 130–210 kHz, 10° to 6° beamwidth, maximum depth 304 m (1,000 ft)
• 103 kHz of total bandwidth from a single transducer
• Covers 50 kHz and 200 kHz fishing frequencies plus full bandwidth in between
• Plastic transducer housing and mounting tank included
• Patented Xducer ID® technology

Specifications:

• Mounting Style: In-Hull
• Frequency Band: Low-High CHIRP-Ready Dual-Band
• Low Frequency: 42–65 kHz
• High Frequency: 130–210 kHz
• Low Frequency Beamwidth: 25°–16°
• High Frequency Beamwidth: 10°–6°
• Max Depth — Low Frequency: 914 m (3,000 ft)
• Max Depth — High Frequency: 304 m (1,000 ft)
• Power Rating: 1 kW
• Functions: Depth
• Material: Plastic
• Acoustic Window: Urethane
• Hull Material Compatibility: Solid fiberglass only
• Deadrise Range: 0° to 22°
• Max Deadrise Angle: 30° (with longest side of tank installed parallel to the centerline/keel)
• Max Vessel LOA: Up to 11 m (36 ft)
• Sensor Connector: MMC
• Display Connector: Mix and Match Cable (required, sold separately)
• Cable Length: 9 m (30 ft)
• Weight: 5.2 kg (11.5 lb)
• Country of Origin: USA
