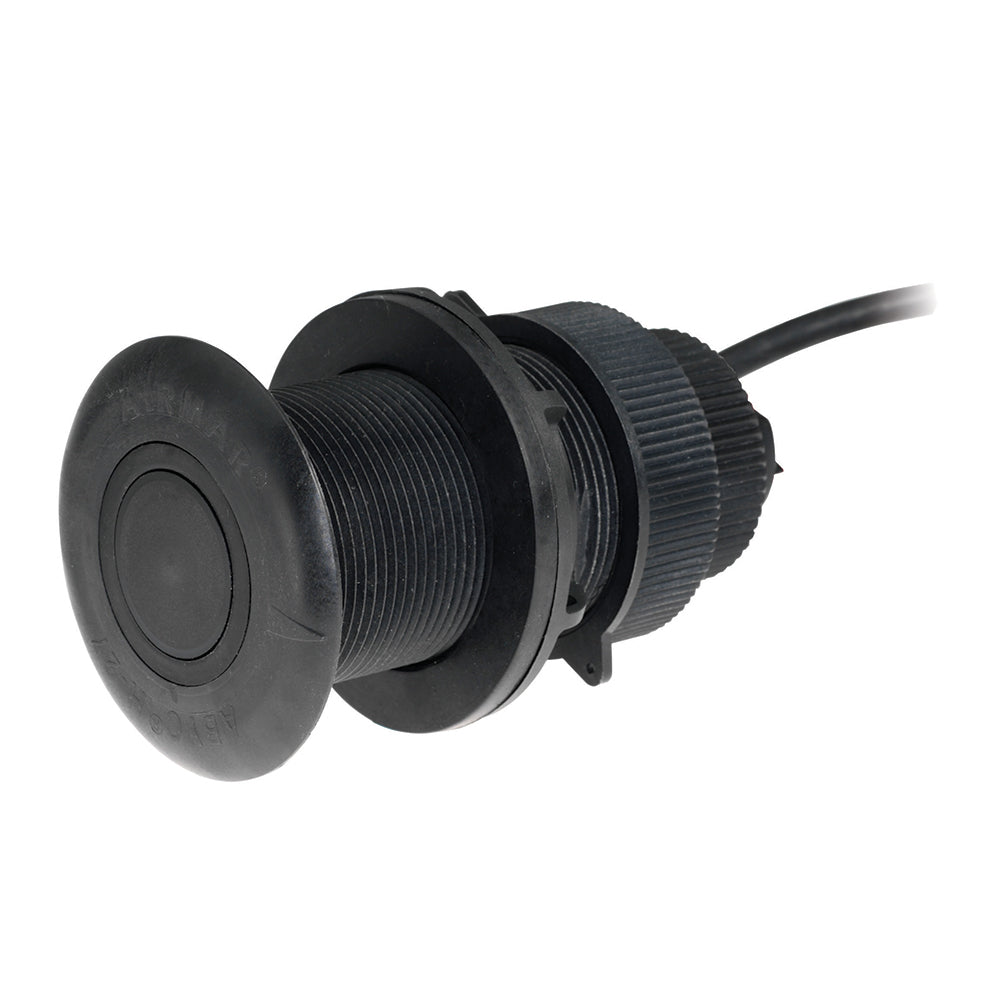

The Airmar DT812PV-235-N2 is a low-profile, retractable thru-hull Smart Sensor operating at 235 kHz — a frequency that runs interference-free alongside onboard 50/200 kHz fishfinders. Embedded microelectronics place the transducer element and signal processor millimeters apart, so depth and temperature data are fully processed inside the sensor before traveling a single cable to any compatible NMEA 2000 display. The 12° fixed tilt aligns the beam straight down on hulls with 8°–15° deadrise, while the broadband urethane-faced ceramic delivers reliable readings from as shallow as 0.5 m (1.6') down to 180 m (594'). A retractable insert with a self-closing valve keeps water out of the vessel during removal for cleaning or service.

Specifications:

• Frequency: 235 kHz
• Cone angle: 12°
• Maximum depth range: 180 m (594')
• Minimum depth range: 0.5 m (1.6')
• Power: 100 W RMS
• Fixed tilt: 12° (suited for 8°–15° deadrise hulls)
• Tilt options available across DT800 line: 0°, 12°, and 20°
• Output protocol: NMEA 2000
• Compatible with NMEA 0183 and NMEA 2000 displays
• Cable: 6 m (19.8') NMEA 2000 DeviceNet cable and connector
• Housing material: Plastic
• Housing diameter: 51 mm (2")
• Usable shaft length: 57 mm (2.25")
• Maximum hull thickness accommodation: 54 mm (2-1/8")
• Minimum hull thickness accommodation: 6.3 mm (0.25")
• Urethane face for enhanced sensitivity and high-speed performance
• Retractable insert with self-closing valve for easy serviceability
• Measures depth and temperature
• Blanking plug included

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
