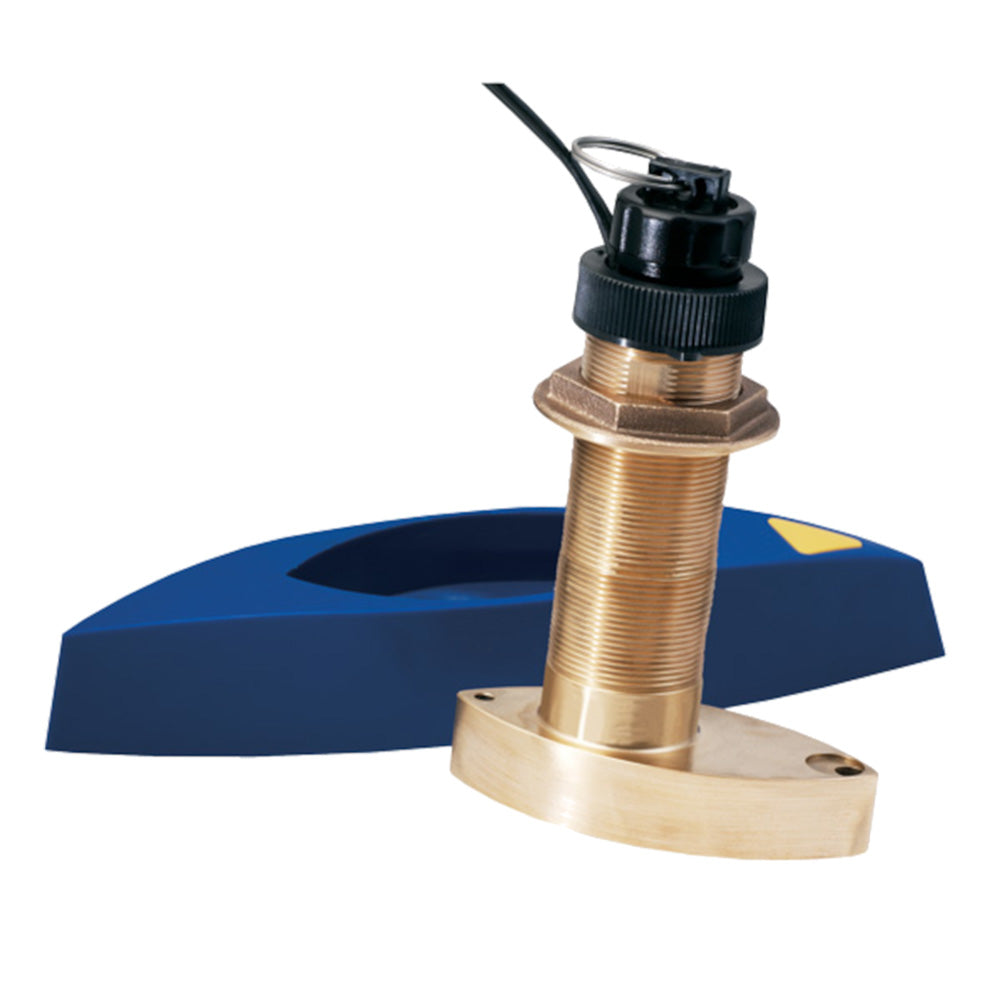

The Airmar B744VL is a TRIDUCER® Multisensor that combines depth, speed, and fast-response water temperature into a single bronze thru-hull housing. Its dual-frequency ceramic element operates at 50 kHz for wide-coverage deep-water tracking and 200 kHz for sharp target detail in shallower water. The extended stem is engineered for steep-deadrise hulls or thick cored-fiberglass and wood construction, and the included High-performance Fairing supports reliable bottom tracking at speeds up to 30 knots. A self-closing water valve keeps water intake minimal when swapping the paddlewheel for the blanking plug, while side fins on the paddlewheel cavity improve accuracy in cross-flow conditions.

Specifications:

• Functions: Depth, Speed, Temperature
• Power Rating: 600 W
• Frequency: Dual — 50 kHz (45° beamwidth) / 200 kHz (12° beamwidth)
• Max Depth: 50 kHz — 366 m (1,200'); 200 kHz — 206 m (700')
• Housing Material: Bronze
• Acoustic Window: Urethane
• Mounting Style: Thru-Hull with High-performance Fairing
• Retractable Housing: Yes
• Tilted Element: No
• Hull Material Compatibility: Fiberglass or Wood
• Max Vessel LOA: Up to 9 m (30')
• Max Deadrise Angle: 24° (with fairing)
• Hole Size: 51 mm (2")
• Usable Shaft Length: 140 mm (5.50")
• Connector: 8-Pin
• Common Use: Leisure/Yachting, Fishing
• Weight: 2.5 kg (5.5 lbs.)
