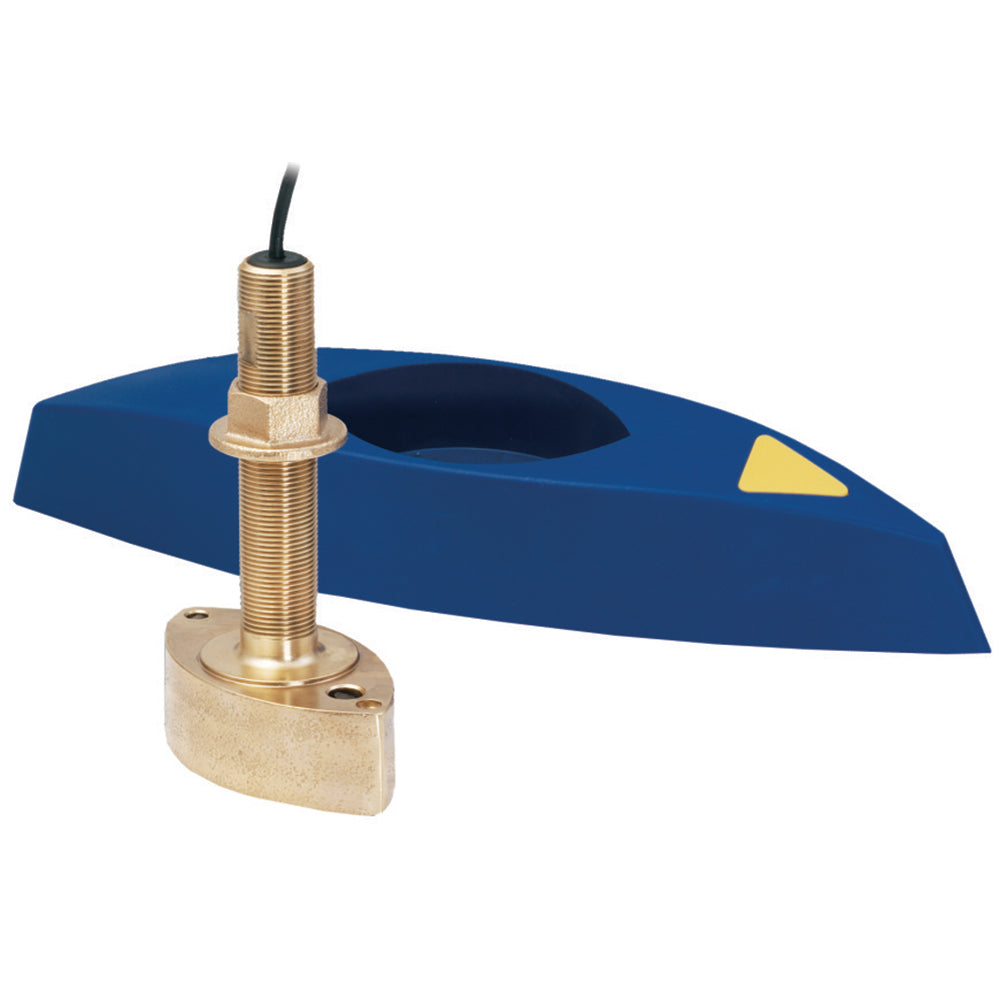

The Airmar B45-DT-HB is the smallest and most economical dual-frequency bronze stem transducer in the B45 lineup. Its streamlined profile pairs with an included High-Performance fairing block that channels aerated water away from the transducer face, delivering strong return echoes and clean display images. Wired with a Humminbird #9 connector, this unit measures both depth and water temperature and is sized for planing-hull powerboats and cruising sailboats up to 9 m (30').

Specifications:

• Housing material: Bronze
• Measurements: Depth and Temperature
• Recommended vessel type: Planing-hull powerboats and cruising sailboats up to 9 m (30')
• RMS Power: 600 W
• Frequency: 50/200 kHz dual-frequency
• Maximum depth range at 50 kHz: 235 m to 353 m (800' to 1,200')
• Maximum depth range at 200 kHz: 118 m to 206 m (400' to 700')
• Cone angle: 50 kHz — 45°, 200 kHz — 12°
• Usable shaft length: 92 mm (3.62")
• Temperature sensor accuracy: ±0.2°C (±0.1°F) fast-response
• High-Performance fairing block included
• Connector: Humminbird #9
