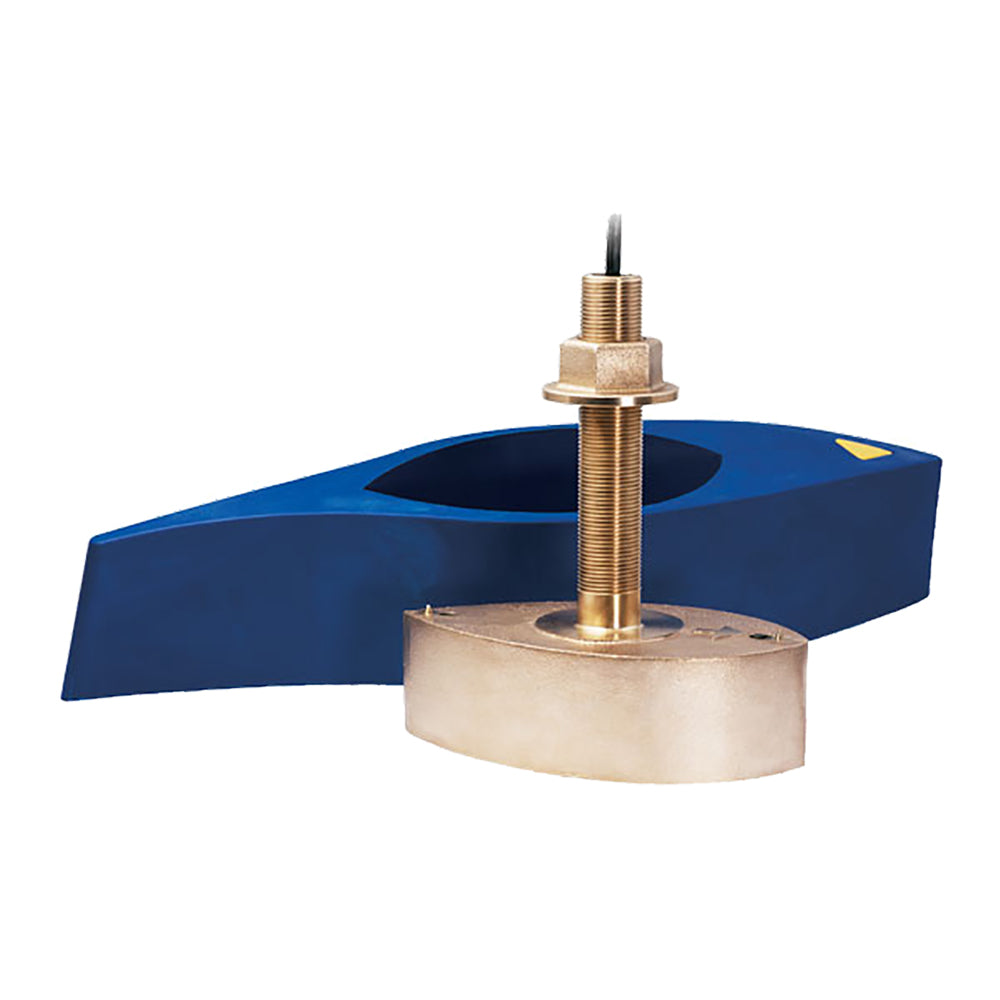

The Airmar B265LM is a bronze thru-hull CHIRP transducer built for serious offshore and deep-water fishing. Operating across a combined 73 kHz of bandwidth in two frequency bands — low (42–65 kHz) and medium (85–135 kHz) — it covers popular fishing frequencies of 50, 88, and 107 kHz from a single unit. At 1 kW of power, it delivers precise target separation, bottom discrimination, and bait and gamefish identification across a wide range of depths. The included High-Performance Fairing Block maintains broadband performance at speeds exceeding 30 knots (34 MPH). A Mix & Match cable is required and sold separately.

Specifications:

• Transducer type: Bronze thru-hull CHIRP
• Power: 1 kW
• Low frequency range: 42–65 kHz
• Low frequency beamwidth (port-starboard): 25° to 16°
• Low frequency maximum depth: 3,000 ft (914 m)
• Medium frequency range: 85–135 kHz
• Medium frequency beamwidth: 16° to 11°
• Medium frequency maximum depth: 1,500 ft (457 m)
• Total bandwidth: 73 kHz
• Covers 50, 88, and 107 kHz fishing frequencies plus full in-band coverage
• Sensors: Depth and fast-response water temperature
• Hull deadrise: Up to 20° with fairing
• Acoustic window: Urethane
• Weight: 7.3 kg (16 lb)
• Hull type: Fiberglass or wood
• Recommended boat size: 8 m (25 ft) and above
• Includes High-Performance Fairing Block
• Features Exclusive Xducer ID® technology
• Also available in Transom Mount (TM265LM), Pocket Mount (PM265LM), Cavity Mount (CM265LM), and In-Hull (M265LM)
• Mix & Match cable required, sold separately

Resources

• Owner's Manual (PDF)
• Product Brochure (PDF)

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
