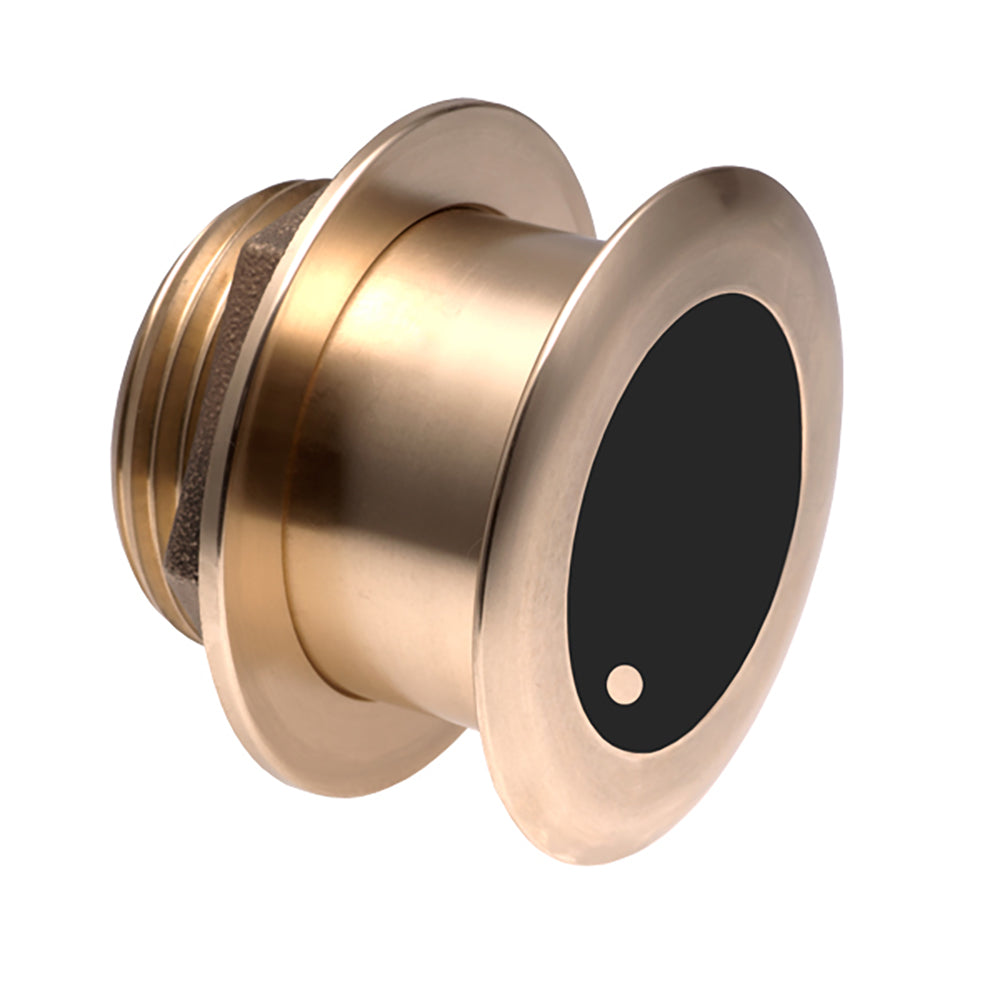

The Airmar B164 is a 1kW bronze thru-hull transducer built around Airmar's Tilted Element™ technology, designed specifically for center-console and trailered sportfishing boats where a high-performance fairing isn't an option. Internally tilted ceramic arrays deliver a true vertical beam directly beneath the hull, while the flush-mount bronze housing protrudes less than 6.35 mm (0.25") — low enough to rest on trailer rollers and bunks without damage. Compatible with any 600W or 1kW echosounder and fitted with a 14-pin Humminbird plug, this transducer pairs depth capability with a fast-response water-temperature sensor in one compact package.

Specifications:

• Power: 1kW
• Frequencies: 50/200 kHz, multiple-ceramic array
• Plug: 14-pin Humminbird
• Deadrise angle: 12°
• Hull deadrise compatibility: Up to 28°
• Housing material: Bronze
• Acoustic window: Urethane
• Hull protrusion: Less than 6.35 mm (0.25")
• Compatible with: 600W or 1kW echosounders
• Sensors: Depth and fast-response water temperature
• Recommended boat size: 8M to 11M (25' to 35')
• Weight: 2.7 kg (6 lb)

Resources:

• Owner's Manual (PDF)
• Quick Start Guide (PDF)
• Product Brochure (PDF)

Note: This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
