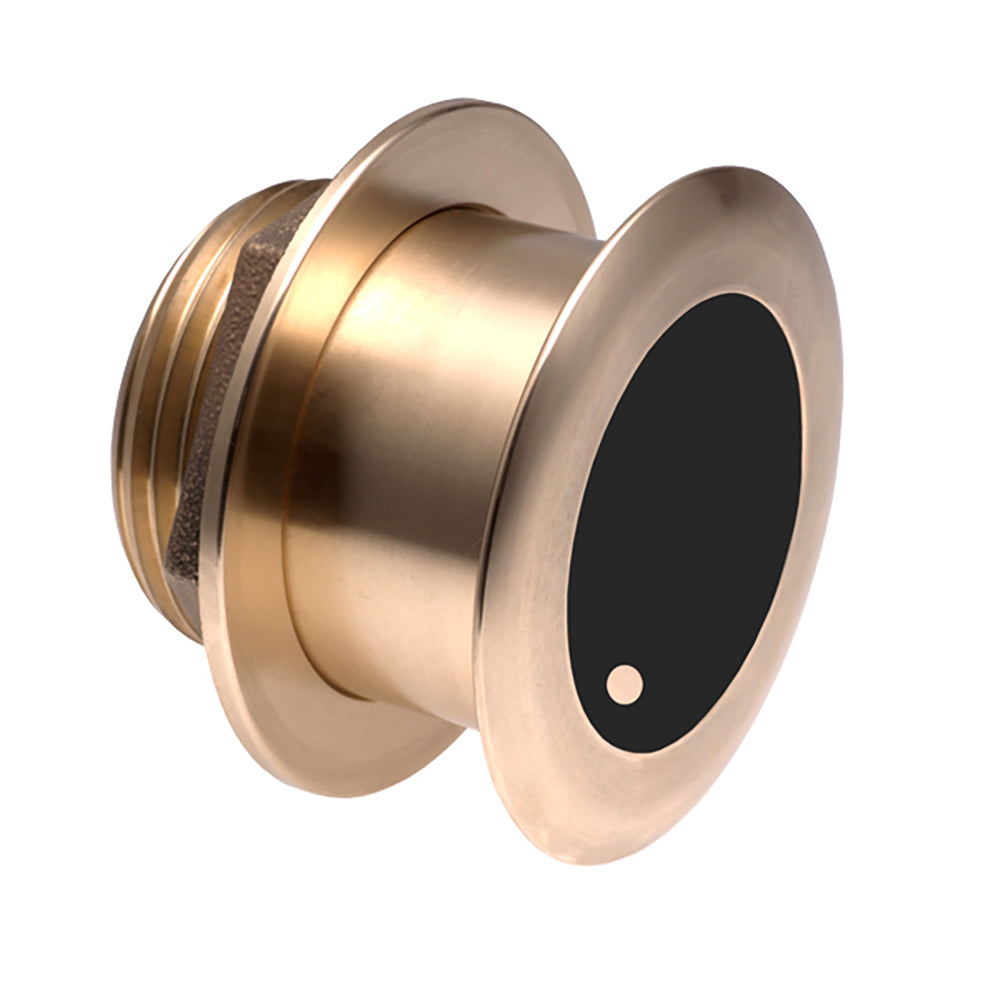

The Airmar B164 Bronze Thru-Hull Transducer brings 1kW Tilted Element™ technology to center-console and trailered sportfishing boats that can't accommodate a high-performance fairing. Internal ceramic arrays are angled within the flush-mount bronze housing to project a true vertical beam directly beneath the hull, while the housing itself protrudes less than 6.35 mm (0.25") — low enough to rest on trailer rollers and bunks without damage. Compatible with any 600W or 1kW echosounder, it adds a depth and fast-response water-temperature sensor without affecting running performance.

Specifications:

• Power: 1 kW
• Frequencies: 50/200 kHz, multiple ceramics
• Connector: Humminbird 14-pin plug
• Deadrise Angle: 0°
• Hull Deadrise Compatibility: Up to 28°
• Acoustic Window: Urethane
• Housing Material: Bronze
• Hull Protrusion: Less than 6.35 mm (0.25")
• Recommended Boat Size: 8 m to 11 m (25 ft to 35 ft)
• Sensors: Depth, fast-response water temperature
• Compatible Echosounders: 600W or 1 kW units
• Weight: 2.7 kg (6 lb)

Note: This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
