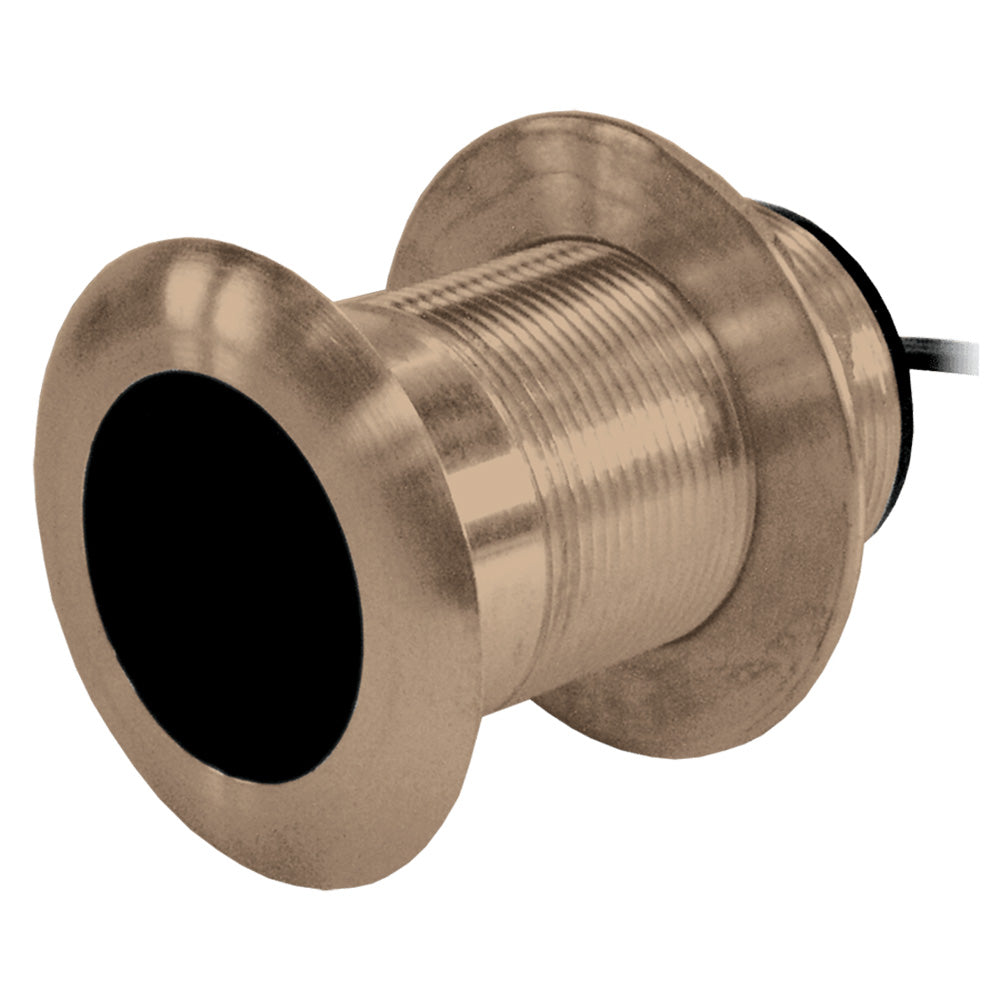

The Airmar B150C-M brings broadband CHIRP technology into a bronze-hulled package built for fiberglass or wood hulls. Sweeping a 60 kHz bandwidth from 95 to 155 kHz, it covers the widely used 107 kHz fishing frequency and everything in between, delivering expanded beam coverage and sharper fish target resolution at medium and shallow depths. Compatible with Garmin xs series fishfinders via an 8-pin connection, this transducer suits recreational anglers focused on inland and freshwater environments.

Specifications:

• Frequency Range: Medium CHIRP, 95–155 kHz
• Total Bandwidth: 60 kHz from a single transducer
• Beamwidth: 26° at 95 kHz to 17° at 155 kHz
• Covers the popular 107 kHz fishing frequency plus the full bandwidth
• Maximum Depth: Up to 2,500 feet (varies by target strength and sea conditions)
• Power Output: 300W
• Tilt Angle: 12 degrees
• Connector: 8-pin for Garmin xs series
• Sensing: Depth and fast-response water temperature
• Internal Element: 1 ceramic
• Housing Material: Bronze (B619)
• Compatible Hull Types: Fiberglass or wood
• Supported Deadrise/Transom Angle: 0–7°
• Fishing Profile: Recreational, medium depths, inland, freshwater
