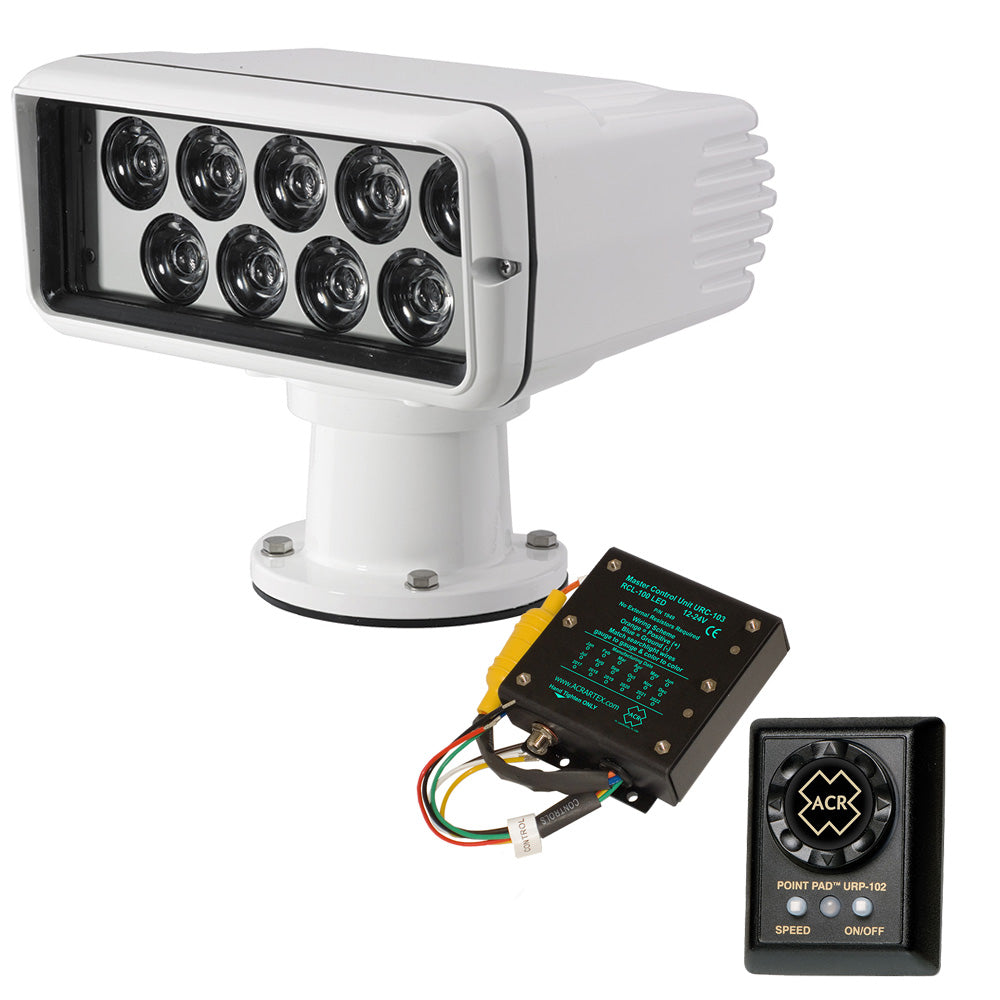

The ACR RCL-100 LED Searchlight Kit puts 220,000 peak candela to work through a 9-LED array, suited for sport yachts, mega-yachts, sport fishers, and light commercial vessels. The 518 die-cast aluminum housing is triple-primed and finished with a UV stabilizer for durability in saltwater conditions. An enclosed internal elevation mechanism delivers precise beam pitch control, and the proprietary XRCiZ™ function automatically rotates the light assembly every 30 days from initial activation — keeping bearing surfaces corrosion-free and electrical contacts operational. Controller electronics provide protection against most power surges, and the kit ships with both a URP-102 Point Pad™ dash-mount controller and a URC-103 Master Controller for multi-point operation. LED technology translates to more than 40,000 hours of service life with lower power draw than conventional searchlights.

Specifications:

• Color: White
• Material: 518 die-cast aluminum
• Operation: Dash-mount Point Pad™
• Voltage Input: 12/24 VDC
• Rotation: 360° continuous
• Light Pattern: Spot
• Light Distance: 4,501 ft (1,372 m)
• Peak Candela: 220,000+
• LED Service Life: 40,000+ hours
• Compatible with up to three remote Point Pad™ units
• Dimensions (H x W x D): 8" x 9" x 8" (20.3 x 22.9 x 20.3 cm)
• Footprint Diameter: 4.75" (12.7 cm)
• Weight: 7.2 lb (3.2 kg)

In the Box:

• RCL-100 LED Searchlight (12/24V)
• URP-102 Dash-Mount Point Pad™ Controller
• URC-103 Master Controller
• Instruction Manual

Resources:

• Owner's Manual (PDF)
• Installation Guide (PDF)
• Product Brochure (PDF)
