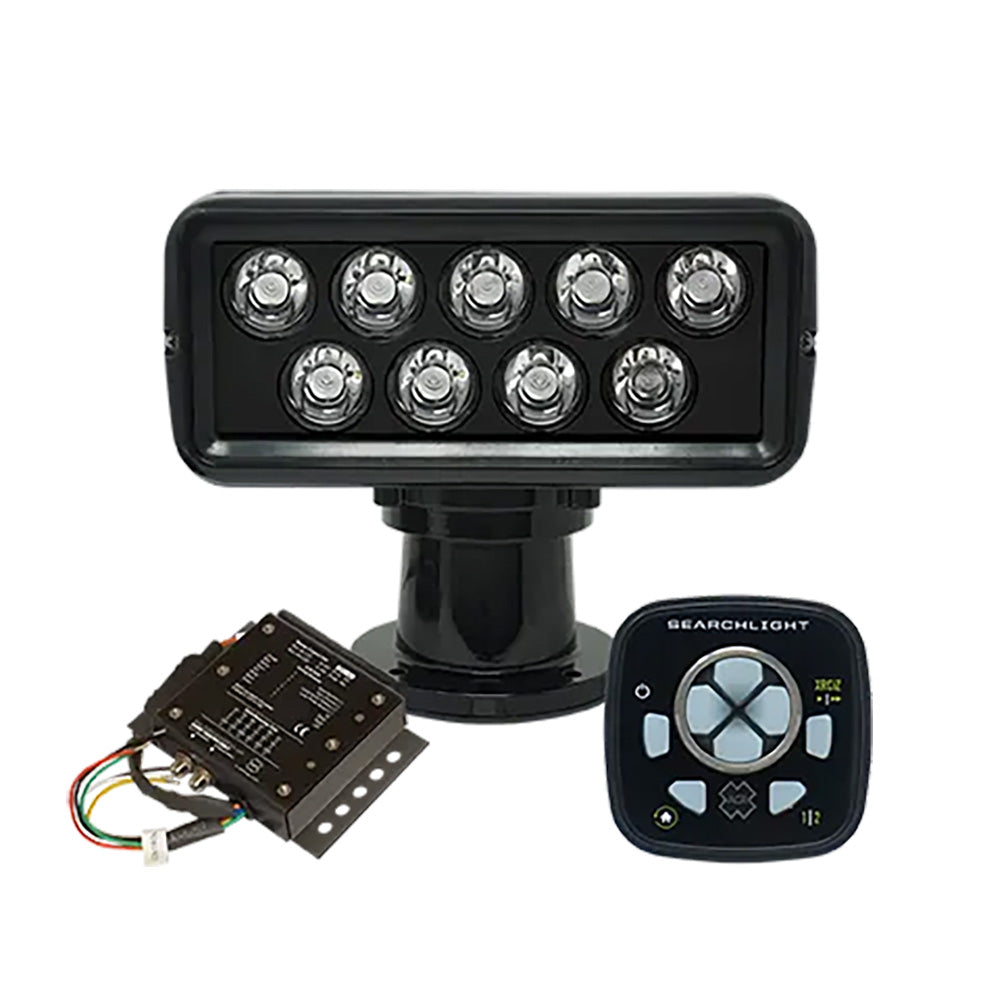

ACR RCL-100 LED Black Searchlight w/URP-103 Wired Point Pad, URC-104 Master Controller

The ACR RCL-100 LED Searchlight kit delivers 220,000 peak candela through a 9-LED array, giving sport yachts, mega-yachts, sport fishers, and light commercial vessels reliable high-intensity illumination in darkness and low-visibility conditions. The die-cast aluminum housing is triple-primed, painted with UV stabilizer, and built to endure the demands of the marine environment over the long term. Enclosed internal elevation mechanisms keep the pitch-control components protected while allowing precise beam adjustment. The exclusive XRCiZ™ feature automatically rotates and exercises the light assembly every 30 days from activation, keeping bearing surfaces corrosion-free and electrical contacts fully functional. This kit pairs the RCL-100 LED with the URP-103 Wired Point Pad and the URC-104 Master Controller — the hub that enables seamless remote operation from multiple control points and supports compatibility with the URH-103 Handheld Wireless Remote.

Specifications:

• Color: Black
• Material: 518 die-cast aluminum
• Operation: Dash-mount Point Pad™
• Voltage input: 12/24 VDC
• Peak candela: 220,000
• LED array: 9 LEDs
• LED operating life: 40,000+ hours
• Light pattern: Spot
• Light distance: 4,501 ft (1,372 m)
• Rotation: 360° continuous
• Dimensions (H x W x D): 8" x 9" x 8" (20.3 x 22.9 x 20.3 cm)
• Footprint diameter: 4.75" (12.7 cm)
• Weight: 7.2 lb (3.2 kg)
• XRCiZ™ auto-exercise: rotates light assembly every 30 days from activation
• Compatible with up to three remote Point Pad™ units
• Controller includes surge-protection electronics

URP-103 Wired Point Pad:

The URP-103 Point Pad features updated styling and a contemporary aesthetic designed to integrate cleanly with modern marine dashboards and control panels, making it well suited for new installs and refits alike.

URC-104 Master Controller:

Intended for behind-dash mounting, the URC-104 Master Controller is the central hub for remote operation of the RCL-100 LED and RCL-50 LED searchlights. It enables full functionality of both the URP-103 Point Pad and the URH-103 Handheld Wireless Remote.
