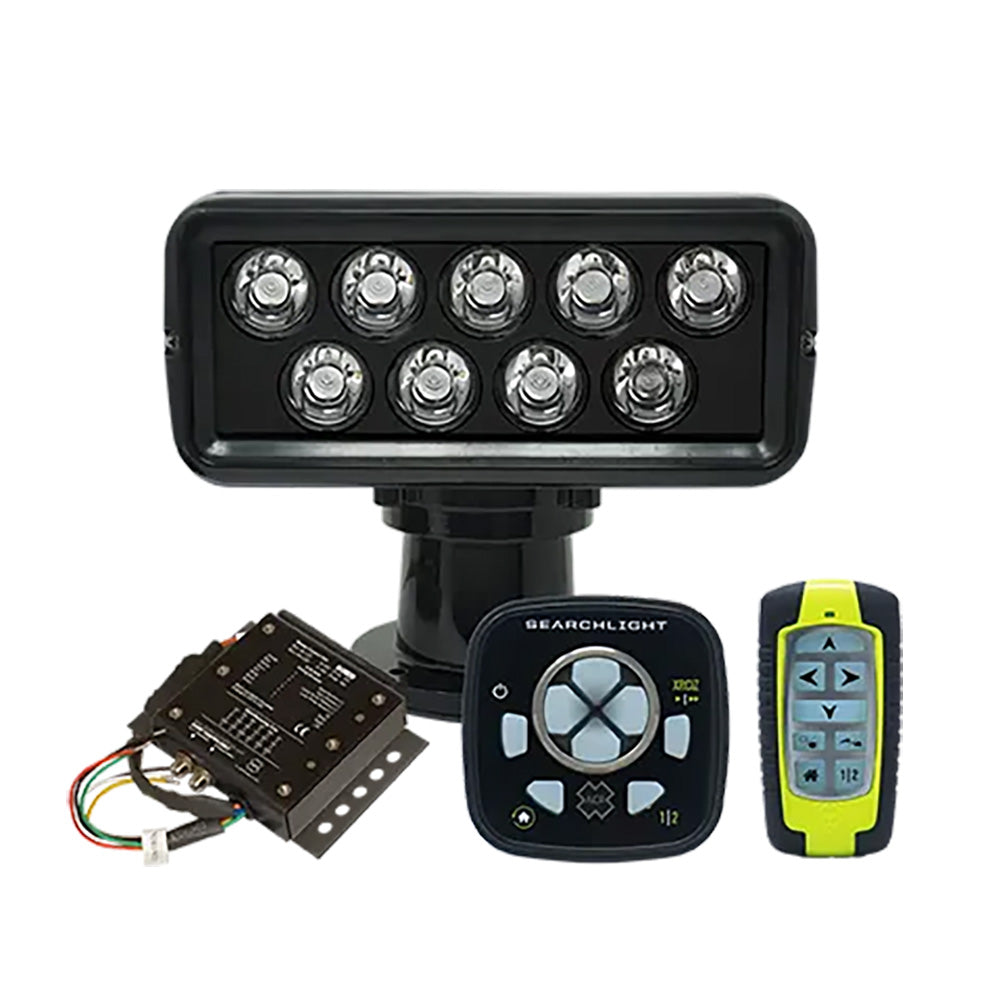

ACR RCL-100 LED Black Searchlight w/URP-103 Wired Point Pad, URC-104 Master Controller & URH-103 Wireless Handheld Remote

The ACR RCL-100 LED Searchlight bundles the high-output RCL-100 head with three distinct control interfaces: the URP-103 Wired Point Pad for a clean dashboard integration, the behind-dash URC-104 Master Controller as the central hub for all remote operation, and the URH-103 Wireless Handheld Remote — a backlit, ergonomic option designed for fingertip control in low-light conditions and a first for the RCL-100 LED platform. The nine-LED array produces over 220,000 peak candela with a reach of 4,501 feet, while the 518 die-cast aluminum housing — triple-primed, sealed, and UV-stabilized — is engineered for long-term saltwater exposure. Internal elevation mechanics keep pitch control precise and shielded from the elements, and the proprietary XRCiZ™ auto-exercise feature rotates the light assembly every 30 days from activation to prevent bearing corrosion and confirm that all electrical contacts remain functional. LEDs are rated for more than 40,000 operating hours, and surge protection electronics are built into the controller.

Specifications:

• Color: Black
• Material: 518 die-cast aluminum
• Operation: Dash Mount Point Pad™
• Voltage Input: 12/24 VDC
• Peak Candela: 220,000+
• Light Distance: 4,501 ft (1,372 m)
• Light Pattern: Spot
• Rotation: 360° continuous
• LED Array: 9 LEDs
• LED Rated Life: 40,000 operating hours
• XRCiZ™ Auto-Exercise: Rotates light assembly every 30 days from activation
• Compatible Remote Point Pad Units: Up to 3
• Dimensions (H x W x D): 8" x 9" x 8" (20.3 x 22.9 x 20.3 cm)
• Footprint Diameter: 4.75" (12.7 cm)
• Weight: 7.2 lb (3.2 kg)

In the Box:

• RCL-100 LED Searchlight (Black)
• URP-103 Wired Point Pad
• URC-104 Master Controller
• URH-103 Wireless Handheld Remote
