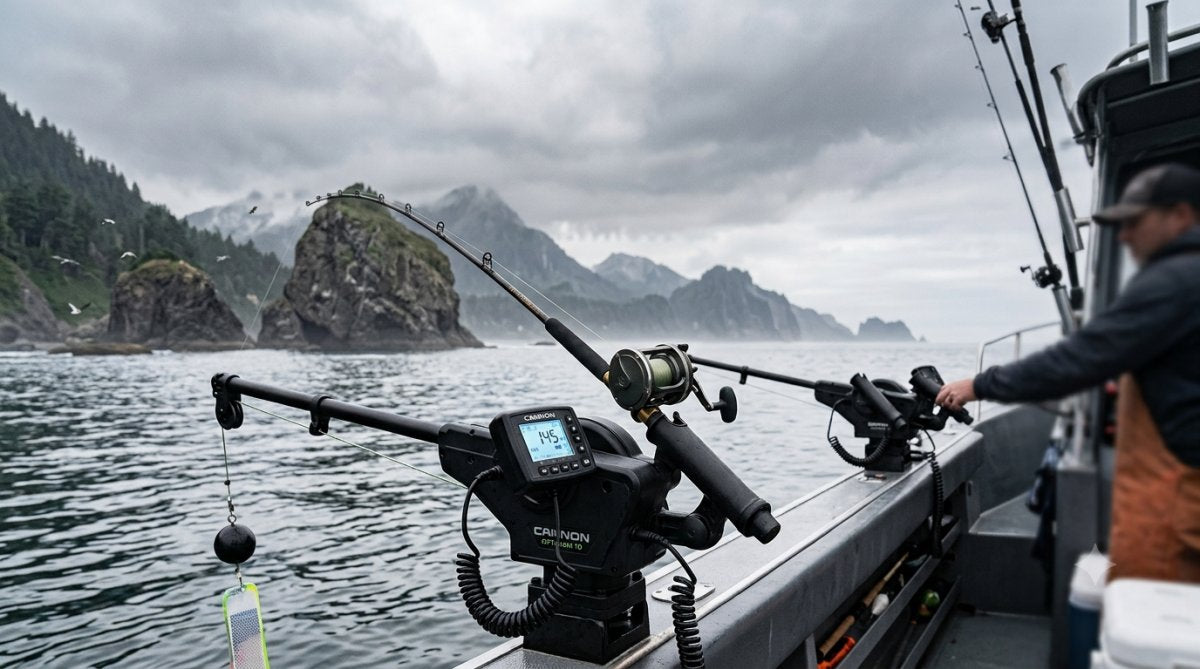

Cannon Optimum 10 Downrigger: Features, Setup, and Performance

Last Updated: July 30, 2026

The Cannon Optimum 10 Downrigger represents a significant leap forward for serious saltwater anglers targeting salmon and halibut in Pacific Northwest waters. This electric downrigger combines precision depth control with modern marine electronics integration, making it the choice for charter captains and experienced recreational fishermen who demand reliability. The Optimum 10 Tournament Series (TS) stands out for its build quality and practical functionality without the complexity of older systems.

The key appeal is straightforward: tournament-grade performance with stainless steel construction that handles saltwater corrosion better than previous generations, Bluetooth connectivity for fish finder integration, and Bottom Tracking technology that keeps your lure at the exact depth where fish are feeding. Whether running a single downrigger or networked multiple units, the Optimum 10 delivers consistent results across a full day on the water.

Cannon Optimum 10 Downrigger: Key Features and Specifications

The Optimum 10 Tournament Series design eliminates friction points that plague older systems. Cannon engineered this unit with saltwater professionals in mind, every component, from the clutch mechanism to the digital display, handles extended exposure to harsh marine environments.

Tournament Series (TS) Design and Stainless Steel Construction

The Tournament Series commitment to durability under continuous use sets it apart. Stainless steel cable, swivel base, and mounting hardware resist corrosion far better than chrome-plated alternatives, meaning less maintenance and longer intervals between replacement parts. This matters on the Pacific Northwest coast, where saltwater spray is relentless and downtime costs money.

The telescoping boom extends to 37 inches and retracts fully, giving flexibility in boat configuration. The swivel base allows 360-degree rotation without moving the entire unit. The clutch system uses a positive ion control mechanism that prevents cable slip during the fight, keeping your lure at target depth even when a large king salmon pulls hard against the line.

The boom is designed to flex slightly under load, reducing shock to the mounting base during sudden depth changes. This engineering choice extends system lifespan and prevents binding when running networked downriggers.

Cannon Optimum 10 Tournament Series specifications

Bottom Tracking and Depth Precision Technology

Bottom Tracking (BT) maintains a fixed distance above the lake or ocean floor, adjusting automatically as bottom contour changes. For trolling over rocky reefs or kelp beds where depth fluctuates constantly, this feature saves countless hours of manual adjustment.

Depth precision is accurate to within 1 foot, critical when targeting a specific thermocline or structure. The digital display shows real-time depth, cable out, and battery status. Set your target depth and let the system hold it, whether fishing 40 feet down or 200 feet. The Positive Ion Control (PIC) system works with Bottom Tracking, ensuring the cable stays taut and responsive.

The Optimum 10 remembers your depth settings across multiple trolling passes. Find fish at 85 feet and return to that exact depth automatically on the next pass without guessing.

Bluetooth Connectivity and Digital Display

Bluetooth integration with modern fish finders eliminates the need to glance at a separate display mounted on the boom. View depth data and control the downrigger directly from your Fish Hawk X4D or compatible electronics.

The digital display is bright enough to read in direct sunlight, with large numbers and intuitive menu navigation. Battery status, cycle depth, and current cable position display simultaneously with quick response times.

Firmware updates via USB connection allow Cannon to push improvements without hardware replacement, keeping your downrigger current with the latest features and compatibility improvements.

Electric Downrigger Installation Guide for the Cannon Optimum 10

Correct installation determines performance and longevity. Poor installation creates vibration, accelerates corrosion, and causes the boom to bind during operation.

Mounting Base and Swivel Base Setup

Select a mounting location on your gunwale that places the boom at least 18 inches from the transom corner and clear of other rigging. The mounting base bolts through the rail using stainless steel hardware, never use standard steel bolts, which corrode within weeks in saltwater.

Drill pilot holes carefully. The base requires four 3/8-inch bolts with backing plates on the interior side of the rail. Use marine-grade washers and nylon lock nuts to prevent vibration loosening. Tighten in a cross pattern (diagonal sequence) to distribute pressure evenly and prevent base warping.

Attach the swivel base assembly and test rotation before proceeding. A stiff swivel causes premature wear on motor bearings.

Power Cable and Control Integration

Run the power cable from the downrigger to your boat's battery using marine-grade 10-gauge wire with a 30-amp inline fuse positioned within 18 inches of the battery positive terminal. This fuse protects against shorts and prevents catastrophic electrical damage.

Route the cable along the gunwale, securing it every 2 feet with cable clips. Keep it away from moving parts, sharp edges, and areas where it might get stepped on. Consider running the cable through split conduit for extra protection against corrosion.

Connect the negative lead directly to the battery negative terminal or a verified ground point on the engine block. Poor grounding causes intermittent operation and digital display glitches.

Route the control cable separately from the power cable to minimize electrical interference. Test the motor in both directions before taking the boat out.

Marine electrical system best practices

Fish Hawk X4D Integration With the Cannon Optimum 10

The Fish Hawk X4D monitors speed at the lure, water temperature, and depth. When networked with the Optimum 10, it creates a closed-loop system where all trolling data synchronizes in real time.

Networked System Setup and Trolling Data Synchronization

The X4D connects to the Optimum 10 via Bluetooth or hardwired network cable. Once paired, the system displays trolling speed, lure depth, and water temperature on a single screen, eliminating the need to cross-reference multiple devices.

This integration is particularly valuable when running multiple downriggers. See which rod is at target depth, which is producing, and which needs adjustment without walking the deck. For charter operations with 4-6 rods in the water, this visibility translates directly to more hookups and efficient time on the water.

Trolling data syncs automatically. Mark a waypoint where you caught fish at 75 feet in 48-degree water, and the system logs all three variables. When you return to that location, the X4D reminds you of previous settings, cutting setup time dramatically.

The integration tracks cycle depth and auto-up functions. Set the downrigger to drop to 80 feet, hold for a programmed interval, then return to 30 feet automatically. This pulsing presentation triggers aggressive strikes from salmon. The X4D monitors each cycle, so you know exactly when the lure is moving versus stationary.

Downrigger Maintenance Tips for Long-Term Durability

Saltwater is relentless. Without consistent maintenance, even stainless steel components will pit and corrode.

Seasonal Care and Corrosion Prevention in Saltwater

After every saltwater outing, rinse the entire downrigger with fresh water. Pay special attention to the cable, swivel base, and boom joints where salt accumulates. Use a soft brush to remove visible salt deposits, then spray with fresh water until clean.

Once dry, apply a light coat of marine grease to the swivel base and exposed metal joints. This protective layer prevents salt from bonding to the steel surface. Avoid heavy grease, which attracts dirt and becomes a corrosion accelerant.

At season's end, inspect the cable for fraying, kinks, or discoloration. Deep pitting or significant corrosion indicates cable replacement is needed. Check the clutch mechanism quarterly, it should engage smoothly without grinding or slipping. If sticky, clean with fresh water and apply light penetrating oil.

Clutch System and Cable Management

The clutch system controls cable tension, prevents slip during the fight, and determines how smoothly the boom moves. Proper clutch adjustment is the single biggest factor in long-term reliability.

The Optimum 10 uses a manual clutch lever with detent positions. The neutral position disengages the cable completely, allowing free spooling. The engaged position locks the cable to the motor. Test the clutch regularly by moving the lever through all positions and confirming smooth, decisive engagement.

Always spool cable neatly on the drum, layer by layer. Crossed or bunched cable creates friction, accelerates wear, and can jam during operation. Check cable tension periodically, it should have minimal slack when fully retracted but shouldn't strain the motor.

Saltwater Trolling Techniques With the Cannon Optimum 10

The Optimum 10 is a tool whose effectiveness depends on how you use it.

Cycle Depth, Auto-Up Functions, and Lure Presentation

Cycle depth programming is one of the most underutilized features on modern downriggers. Program the Optimum 10 to drop to 80 feet, hold for 30 seconds, then rise to 40 feet over a 20-second interval, then drop again automatically. This pulsing presentation mimics baitfish behavior and triggers aggressive strikes from king salmon and halibut.

Auto-up is your safety net. Program automatic cable retraction when a fish strikes to prevent slack line and ensure solid hooksets. Most anglers program auto-up to trigger at 30 feet, deep enough to avoid snagging but shallow enough that the hook is already set.

Lure presentation matters more than depth alone. A 4-inch spoon trolled at 2.5 knots looks different at 60 feet than at 40 feet. Experiment with different lure weights and profiles until you find what works in your home waters.

Speed at the Lure and Water Temperature Monitoring

Speed at the lure is not the same as boat speed. The Fish Hawk X4D measures actual lure speed through the water column, critical information for effective trolling.

Most salmon and halibut prefer lure speeds between 2.0 and 3.5 knots. Speeds below 2.0 knots look unnatural and trigger fewer strikes. Speeds above 4.0 knots cause many lures to spin or flutter unnaturally.

Water temperature is the second critical variable. Salmon actively feed in water between 48 and 58 degrees Fahrenheit. Above 60 degrees, they become lethargic and move deeper. Below 45 degrees, they slow down and require slower presentations. The X4D displays temperature in real time, allowing depth and speed adjustments based on actual conditions.

When water temperature exceeds 62 degrees, drop your downriggers an additional 15-20 feet to find cooler water where fish concentrate.

Performance Analysis and Real-World Results

The Cannon Optimum 10 has earned its reputation through consistent performance across many saltwater conditions. Charter captains operating out of Westport, Ilwaco, and Neah Bay rely on this system because it delivers results day after day.

Reliability is exceptional. Downtime due to mechanical failure is rare when properly maintained. The digital display rarely glitches, and Bluetooth connectivity is stable, important because a dropped connection mid-troll is frustrating and costly.

Bottom Tracking proves its value in variable bottom conditions. Rocky reefs, kelp beds, and sandy flats all present different challenges. The Optimum 10 adapts automatically, maintaining your lure in the strike zone regardless of bottom contour.

Stainless steel construction genuinely extends system lifespan. Compared to older chrome-plated models, the Optimum 10 shows significantly less surface corrosion after a full season of saltwater use, translating to lower maintenance costs and higher resale value.

Saltwater fishing equipment durability standards

Serious saltwater anglers deserve equipment that performs under pressure. The Cannon Optimum 10 Downrigger delivers precision depth control, reliable electronics integration, and construction that stands up to Pacific Northwest saltwater conditions. Elliott's Tackle & Rigging stocks the Cannon Optimum 10 Tournament Series (TS) with Bottom Tracking and all essential accessories, cables, swivel bases, and mounting hardware selected by our captain with forty years of field experience. Get started with a system trusted by charter captains and experienced recreational fishermen, and spend less time troubleshooting gear and more time fighting fish.
