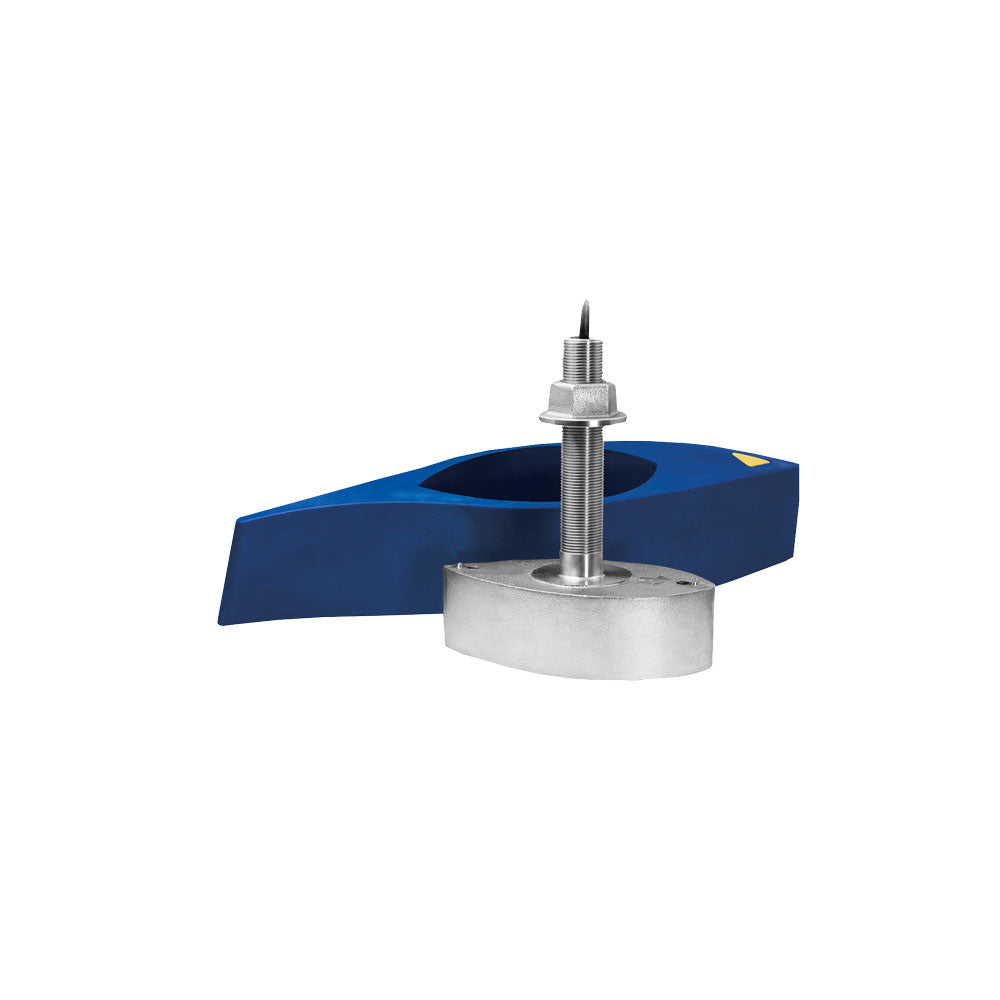

The Furuno SS260 is a stainless steel thru-hull transducer built for serious depth work with 1 kW echosounders. Separate 50 kHz and 200 kHz elements operate with a diplexer to deliver exceptional deep-water range alongside precise bottom and water-column detail. The narrow beam angles make it especially capable when reading fishing shelves, complex bottom structures, and wrecks. A high-speed fairing block and temperature sensor are included, and the 10-pin connector integrates cleanly with compatible Furuno units.

Specifications:

• Power: 1,000 Watts
• Frequencies: 50/200 kHz with Diplexer
• Beam Angles: 20° (50 kHz) / 6° (200 kHz)
• Construction: Stainless Steel Thru-Hull
• Temperature Sensor: Included
• Connector: 10-Pin
• High-Speed Fairing Block: Included

Resources:

• Installation Guide (PDF)
• Product Brochure (PDF)

Note: This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
