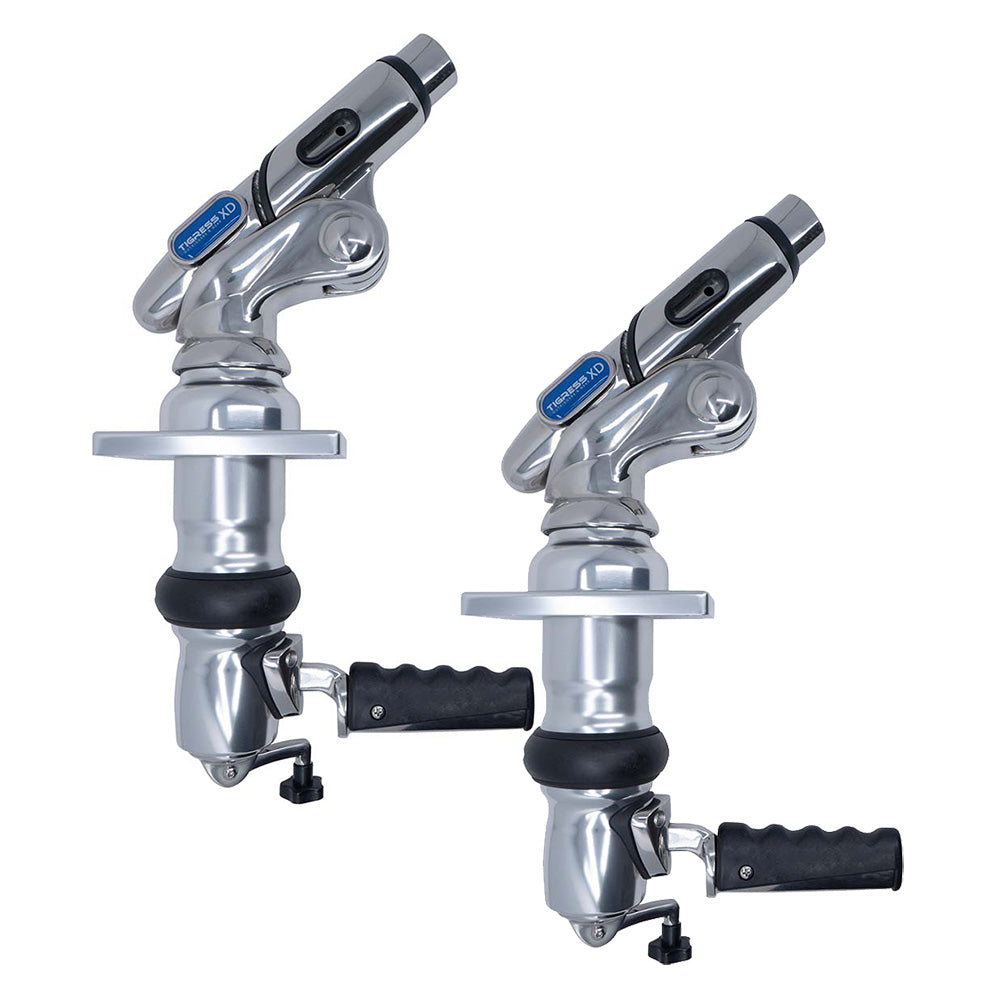

XD Crank Top Mount

Features:

• For use on sport fishing boats up to 50 feet
• Adjustable Upper Arm with ‘Run’ & ‘Laydown’ position Stops
• User-friendly Folding Crank Handle with Integrated Drive Brake
• Upper-Arm adjusting Ball-bearing drive system, with Integrated Balance Spring-assist
• Extreme Duty Top Plate, Upper Arm, and Housings for Outriggers up to 22ft in length
• Stainless-Steel & Bronze bushed Head pivot for Maximum trolling strength & durability
• Unique invertible Tigress handle design for use on both soft and hard tops over 2” thick
• Accepts all Tigress XD 1-1/2” butt diameter outriggers and XD 1-1/8” butts using an adapter
• Fits Tigress and other industry-standard 4” x 6” mounting plates (four 5/16” diameter fasteners)
• Extreme-duty 316L Stainless Steel and anodized aluminum and sealed construction with UV protection
• 24 adjustable/locking system positions featuring Tigress XD 316L Stainless Steel design
• Ergonomic 316 Stainless Steel mirror-polished lever design with inverting ability for extra hand clearance on the thickest tops
• User-friendly underside lever actuation, with 8 optional indexable set-up positions
• Fits through all standard 3” diameter mounting plates and hardtop holes
• Sold as pair
• 3-Year Limited Warranty
