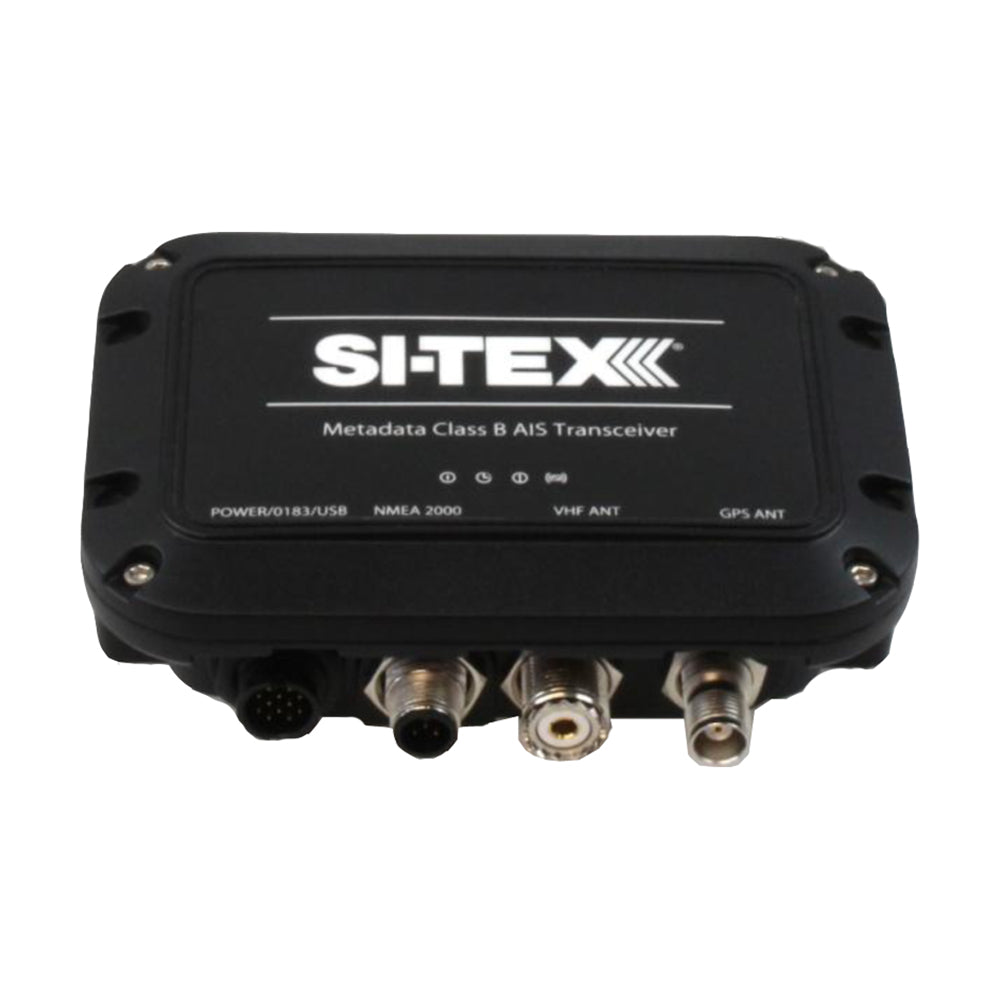

The SI-TEX MDA-1 is a compact Class B AIS transceiver built around an Rmax Class B engine for extended range and efficient real-time processing of all AIS message types. Its IPx7-rated housing measures just 5.5" x 3.9" x 1.9", allowing flexible mounting locations aboard recreational or commercial vessels. An integrated 50-channel GPS smart antenna removes the need for a separate GPS antenna in most installations — the unit simply requires a clear view of the sky. NMEA 0183, NMEA 2000, and USB interfaces support straightforward plug-and-play integration with existing onboard electronics.

FCC Programming Requirement: All units sold in the US must be programmed by a qualified technician as required by the FCC. Please submit the programming form at the time of purchase. A copy of your MMSI Registration or FCC Ship Station License, along with the vessel master or owner's signature on the completed form, is required. Click here to download the programming form.

Specifications:

• Dimensions: 5.5" x 3.9" x 1.9"
• Waterproof rating: IPx7
• Internal GPS: 50-channel smart antenna (requires clear sky view)
• AIS class: Class B (Rmax engine)
• Power supply: 12–24V DC
• Power consumption: 150mA @ 12VDC, <2W average
• USB interface
• NMEA 2000 interface
• IEC61162-1 (NMEA 0183) output: 38,400 baud
• IEC61162-1 (NMEA 0183) input: 4,800 baud
• Silent mode switch input

In the Box:

• 2m power and NMEA 0183 cable
• User manual and quick start guide
• Product CD
• Fixing screws

Note: This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
