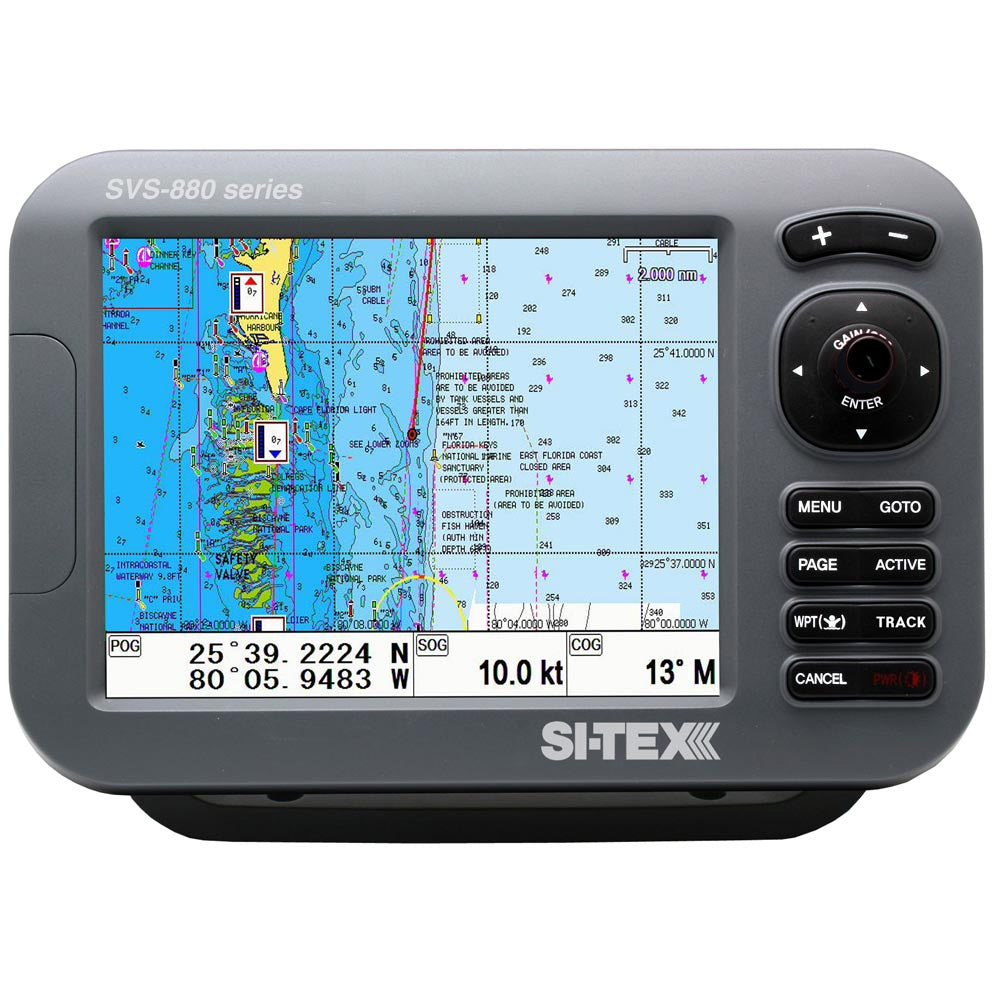

The SI-TEX SVS-880CF+ combines a large 8-inch color LCD chartplotter with a dual-frequency 600W sonar into a single compact unit suited for center console skiffs, sailboats, and light commercial vessels. Powered by an updated Android processor and paired with a C-MAP 4D cartridge, it includes a built-in 52-channel GPS antenna so no external antenna mount is required. Video input support adds flexibility for underwater or on-deck cameras.

Differences between SVS-880CF and SVS-880CF+:

The SVS-880CF+ uses an updated Android processor and is compatible exclusively with C-MAP 4D cartridges.

Specifications:

• Display: 8-inch color LCD with LED backlight, SVGA resolution (800 x 600 pixels)
• Power Supply: DC 12V–36V (±10%); 4W without sonar / 6W with sonar
• Operating Temperature: Display unit -15°C to +50°C; Antenna unit -25°C to +70°C
• Performance Standard: IMO Resolution MSC.112(73)
• Internal GPS antenna included — no separate antenna mount needed
• 52-channel GNSS receiver: GPS L1 C/A, GLONASS L1OF, QZSS L1 C/A, Galileo E1B/E1C/L1
• Horizontal Positioning Accuracy: Autonomous 2.5m (CEP 50%)
• GPS Sensitivity: Acquisition -148 dBm, Tracking -165 dBm, Reacquisition -162 dBm
• GPS Update Rate: 1Hz / 5Hz
• DGPS/SBAS Support: EGNOS, WAAS, MASA, GAGAN
• Chartplotter Display Method: Mercator Projection
• Display Modes: True Motion, N/S/E/W Up, Course Up, Head Up
• Latitude Limits: 85°N to 85°S
• Map Scale: 0.05 nm to 1,500 nm
• Map Datum: WGS-84
• Waypoints: 20,000 points; 16 colors and 16 icons selectable per point with 6-character alphanumeric name tag
• Track Points: 50,000 points (2 types)
• Routes: Up to 100 routes, 20 waypoints per route, each with 8-character alphanumeric name tag
• Draw Points: 1,000 points
• Area Names: 1,000 points
• Data Input/Output: NMEA-0183
• Alarms: Arrival, Anchor, XTE, Interval Timer, Userline
• Sonar Frequency: 50 kHz and 200 kHz (single or dual)
• Sonar Output Power: 600W
• Sonar Range: 2.5m – 600m
• Sonar Display Modes: Normal (single/dual-frequency), Bottom-lock, Bottom-zoom, A-scope
• Image Speed: 8 fixed speeds (4/1, 2/1, 1/1, 1/2, 1/4, 1/8, 1/16, 1/32) plus stop
• Interference Rejection: 3 levels; Noise Rejection: 4 levels
• Sonar Functions: Gain (auto/manual), Range (auto/manual), Shift (auto/manual), White/Black line; supports speed sensor and water temperature sensor
• Video input for underwater or on-deck cameras
• Brilliant LED backlighting for sunlight readability
• Cartography: C-MAP 4D
