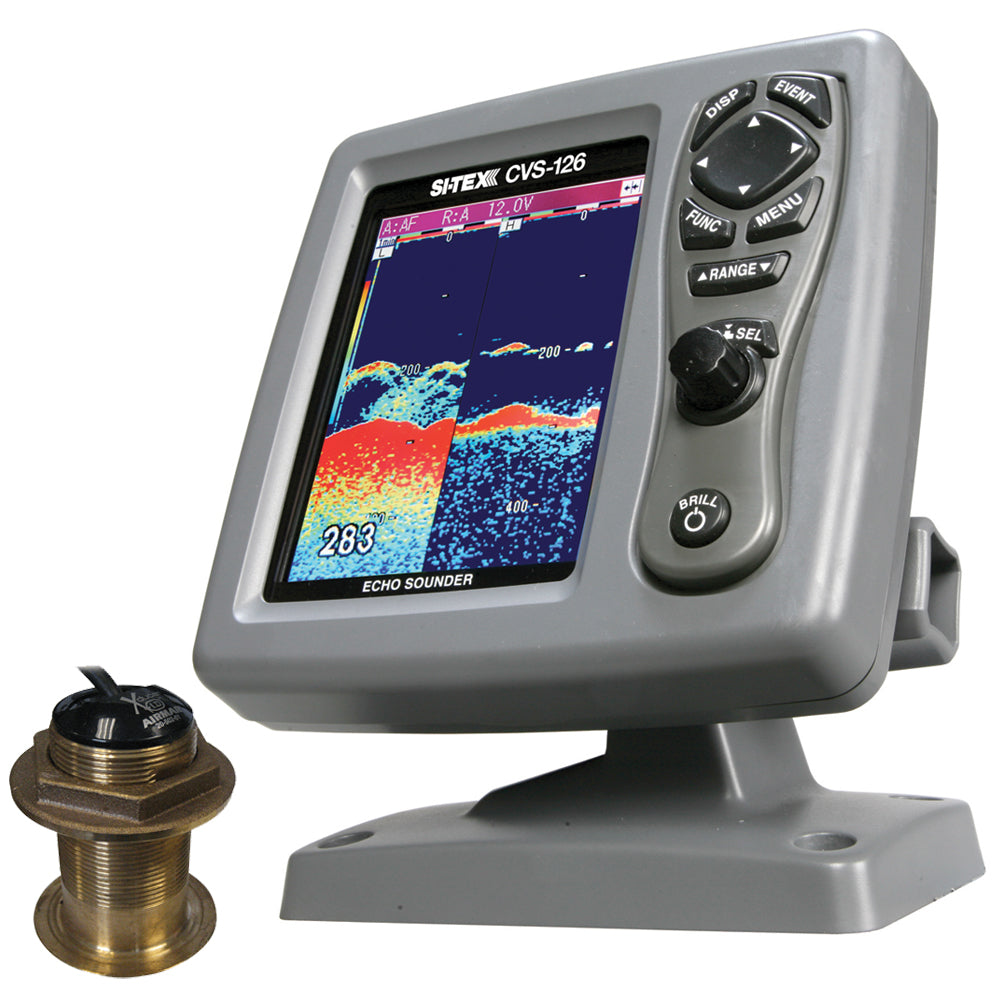

The SI-TEX CVS-126 is a 5.7" dual-frequency color LCD echo sounder built around a digital signal processor (DSP) that filters noise, sharpens fish targets, and makes it easier to distinguish baitfish, larger fish, schools of fish, and the sea floor at both shallow and deep depths. The bundled B60-12-CX transducer is a low-profile tilted-element model matched to 8°–15° deadrise hulls, delivering 600 watts across both 50 and 200 kHz frequencies.

CVS-126 Echo Sounder Specifications:

• 5.7" dual-frequency color LCD display
• Operating frequencies: 50/200 kHz
• DSP (digital signal processing) with advanced filtering to eliminate clutter and enhance fish target detail
• Differentiates baitfish, larger fish, schools of fish, and the sea floor
• Sona-Tone: exclusive audio feature that produces distinct sounds for individual fish vs. schools, alerting you when away from the screen
• Auto Function mode automatically selects optimal Gain, Range, and Shift settings for best performance
• Stores up to 10 screen images in built-in memory, recallable with one-touch access
• Fishing Hot Spots: returns you to saved positions using input from an optional GPS sensor
• Keypad includes dedicated function keys and a rotary knob for Gain/Selection control with on-screen menus
• Display supports 8, 16, or 64 color levels with anti-reflective coating for direct-sunlight readability

B60-12-CX Transducer Specifications:

• Model: B60-12-CX
• Beam angle: 12° tilted element, low-profile design
• Compatible hull deadrise: 8° to 15°
• Power output: 600 watts
• Frequencies: dual 50/200 kHz
