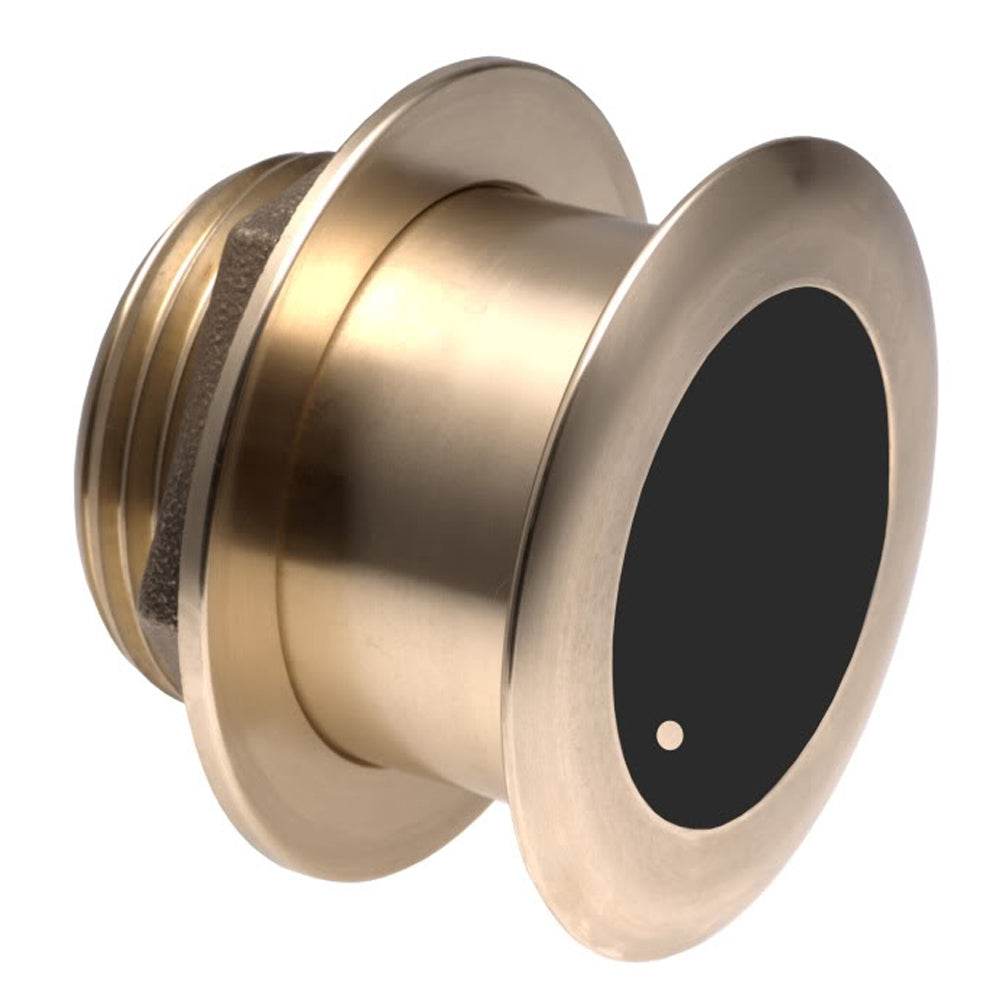

The SI-TEX B-164-12-CX is a bronze 1kW transducer designed for use with the CVS-128 and CVS-1410 depth sounders. Its 12-degree tilt element accommodates hull deadrise angles from 8 to 15 degrees, and the integrated temperature sensor adds water temp data without a separate fitting. The 8-pin connector delivers dual-frequency coverage for both shallow and deep-water performance.

Specifications:

• Compatible with: SI-TEX CVS-128, CVS-1410
• Power: 1kW
• Housing material: Bronze
• Tilt element: 12 degrees
• Hull deadrise range: 8 degrees to 15 degrees
• Beam angle: 22 degrees @ 50kHz
• Beam angle: 6 degrees @ 200kHz
• Temperature sensor: Yes
• Connector: 8-pin
