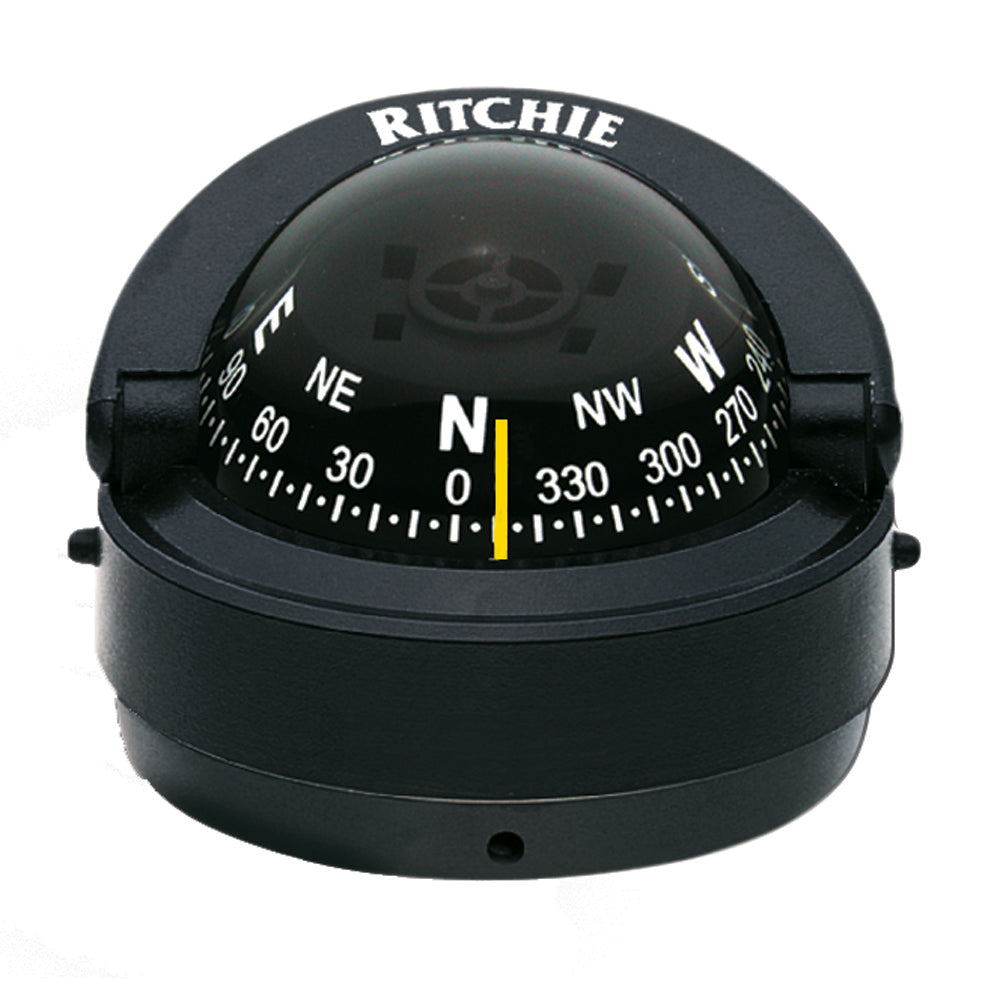

The Ritchie S-53 Explorer is a surface-mount compass built for boaters who need reliable heading data in a compact, low-profile package. A quick push-button release lets you remove the compass module for off-season storage or security, while built-in compensators make deviation adjustment straightforward. Standard 12V green night illumination keeps the dial visible after dark, and the high-temperature composite housing extends the operating range across demanding conditions.

Specifications:

• Dial: 2 3/4" (70 mm) direct-reading, easy-to-read format
• Mount style: surface mount, compact low-profile design
• Compass module removal: quick push-button release for storage and security
• Night illumination: internal green lighting, standard 12V (6V and 24V options available)
• Deviation adjustment: built-in compensators
• Dial movement: scientifically matched sapphire jewel and hardened steel pivot
• Magnets: powerful DirectiveForce magnets for fast heading lock-on
• Sun shield: movable
• Housing: high-temperature composite construction for extended operating range
• Serviceability: 100% repairable
• Warranty: exclusive 5-year Ritchie warranty
• Approximate shipping weight: 1 lb (454 g)
• Color: Black

Note: Some custom-built OEM models may have different lighting configurations.
