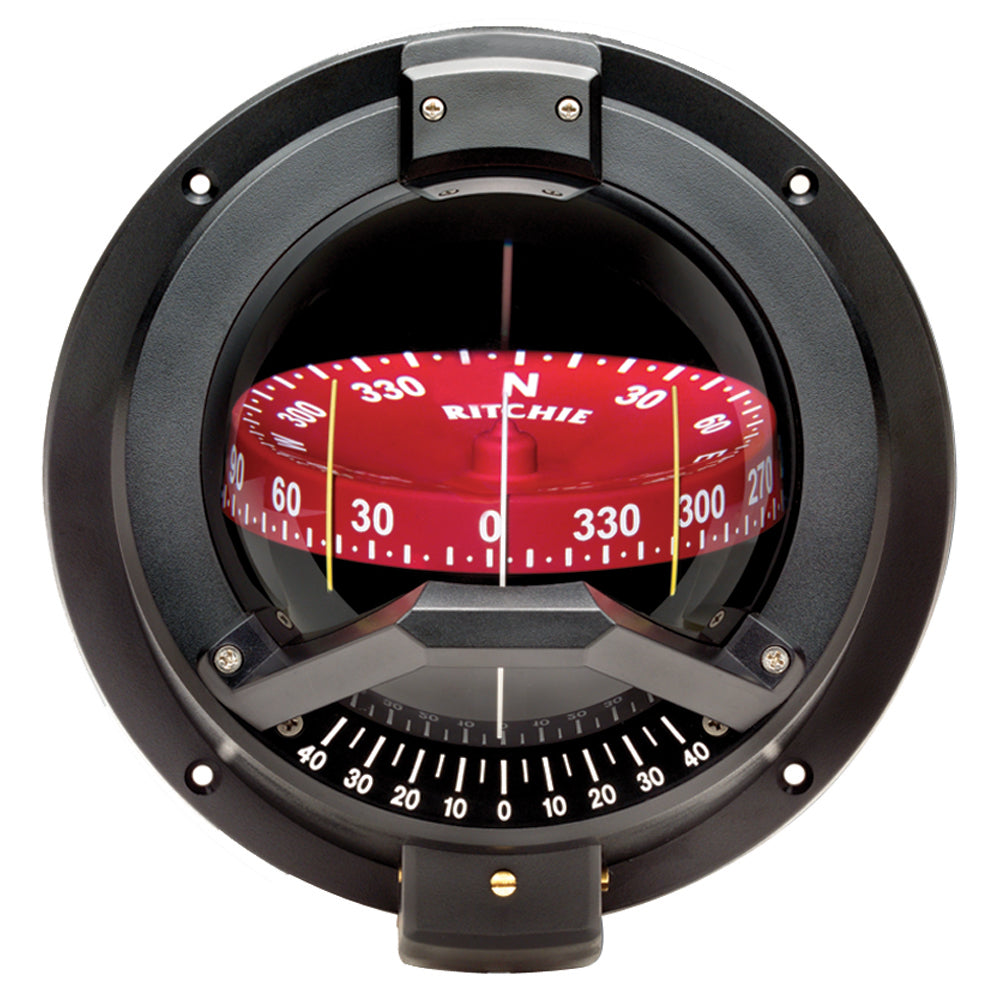

The Ritchie BN-202 Navigator Compass delivers reliable heading readings from a bulkhead-mounted position, combining a large CombiDial with a built-in inclinometer for situational awareness underway. The internal gimbal system keeps the card stable through pitch and roll, while sapphire jewel and hardened steel pivot movement ensures long-term accuracy. Amber LED backlighting, built-in deviation compensators, and a fully repairable design round out a compass built to work hard in Pacific Northwest waters.

Specifications:

• Dial: 4-1/2 in (115 mm) Ritchie CombiDial with built-in inclinometer

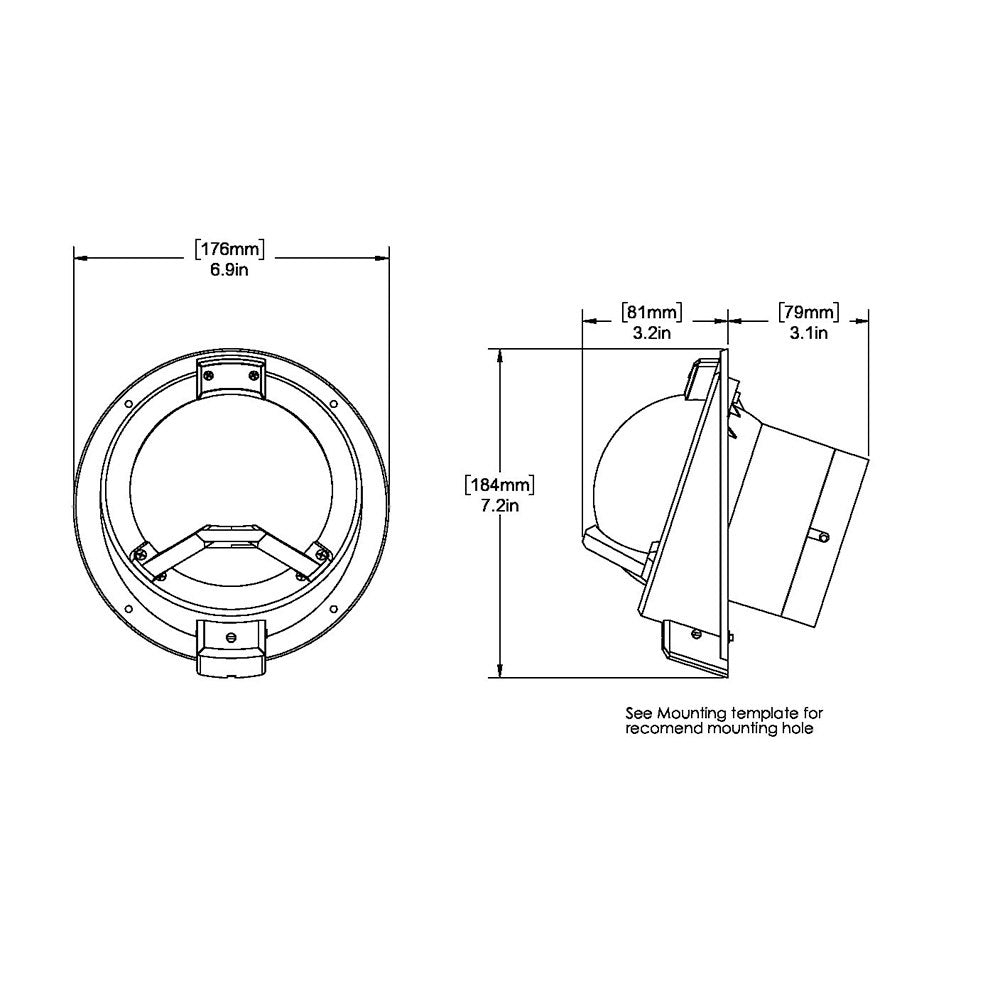

• Mounting: Bulkhead mount; fits 5.75 in (146 mm) mounting hole
• Fairing block required when bulkhead is not perpendicular (90°) to the boat centerline or not vertical (90°) to the waterline
• Gimbal: Internal gimbal system for maximum stability in adverse pitch and roll conditions
• Dial movement: Scientifically matched sapphire jewel and hardened steel pivot
• Bowl construction: Fiberglass reinforced
• Lubber lines: 45-degree
• Lighting: Exclusive built-in 12V amber LED; 24V and 32V lighting options available
• Compensators: Built-in compensators for deviation adjustment
• Serviceability: 100% repairable
• Warranty: Exclusive 5-year Ritchie warranty
• Approx. shipping weight: 2 lbs 5 oz (1.05 kg)
