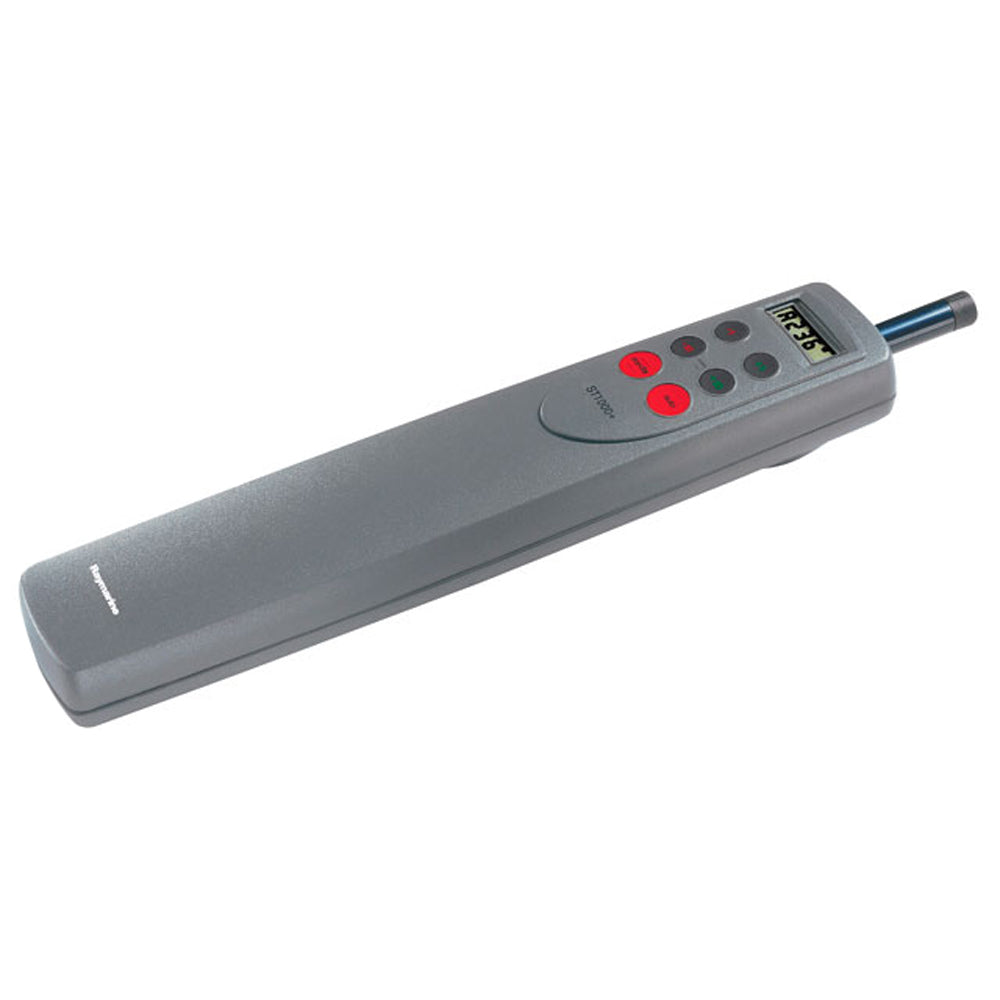

The Raymarine ST1000 Plus Tiller Pilot is a compact autopilot designed for tiller-steered sailing vessels up to 6,600 lbs (3,000 kg) displacement. When calculating vessel suitability, account for fully laden displacement weight, which is typically around 20% higher than the designed displacement figure.

Specifications:

• Designed for tiller-steered sailing vessels
• Maximum vessel displacement: 6,600 lbs (3,000 kg)
• Note: Always use fully laden displacement weight when sizing — commonly 20% above designed displacement

In the Box:

• Instruction Manual
• Tiller Pilot 12V Socket
• Tiller Pin
• Mounting Socket

Resources:

• Quick Start Guide (PDF)
