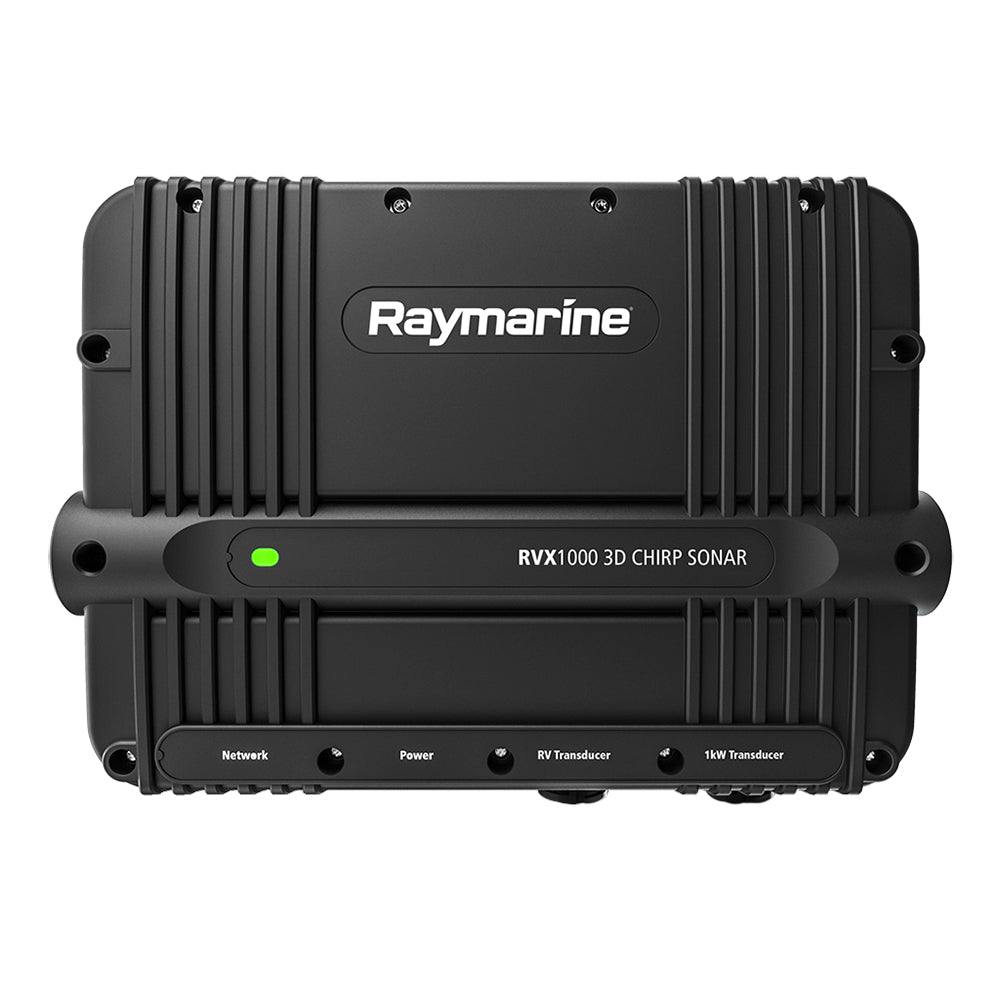

The Raymarine RVX1000 is a remotely mounted black box sonar module that brings the full sonar capability of the Axiom Pro platform to any compatible LightHouse 3 multifunction display. Five sonar channels — RealVision 3D, CHIRP DownVision, CHIRP SideVision, high-frequency CHIRP, and 1kW high-power CHIRP — are processed simultaneously by a quad-core processor with no lag. Gyro stabilization keeps the 3D imagery steady through boat movement, and dual transducer ports support both RealVision 3D and Airmar 1kW CHIRP transducers. Compatible with all LightHouse 3 enabled MFDs running software version 3.4 or higher, the RVX1000 suits both inshore and offshore fishing applications.

Features:

• 5-channel sonar: RealVision 3D, CHIRP DownVision, CHIRP SideVision, high-frequency CHIRP, and 1kW high-power CHIRP
• RealVision 3D with GPS Track integration
• Sonar Scroll Back — rewind, pause, and replay recorded sonar history
• TrueZoom™ magnification technology
• RealVision 3D gyro stabilization compensates for vessel movement for life-like 3D imaging
• Dual transducer connections supporting RealVision 3D and Airmar CHIRP 1kW transducers
• Fast quad-core processor renders 3D, CHIRP, DownVision, and SideVision simultaneously without delay

Specifications:

• Connections: 1x RVX Port (25-pin RealVision connector) | 1x 1kW Port (11-pin 1kW connector) | 1x Power connection | 1x Raynet connection
• Sonar Channels: RealVision 3D (CHIRP SideVision, CHIRP DownVision, High-Frequency CHIRP, 3D Sonar) + 1kW High-Power CHIRP
• Sonar Depth — High-Frequency CHIRP: 900 ft | DownVision: 600 ft | SideVision: 300 ft port and starboard | 1kW: 5,000 ft
• Nominal Supply Voltage: 12 V and 24 V DC
• Operating Voltage: 10.8 V to 31.2 V DC
• Power Consumption: 10.4 W maximum
• Current: 2.4 A peak; 1.2 A RMS
• Fuse/Breaker Rating: 5 A
• Waterproof Rating: IPX6/IPX7
• Operating Temperature: -25°C (-13°F) to +55°C (+131°F)
• Storage Temperature: -30°C (-22°F) to +70°C (+158°F)

In the Box:

• RVX1000 Sonar Module (1)
• Power Cable, 1.5 m (1)
• Fixing Screws, #8 (4)
• Documentation Pack (1)
• RayNet Network Cable, 2 m (1)

Resources:

• Installation Guide (PDF)
