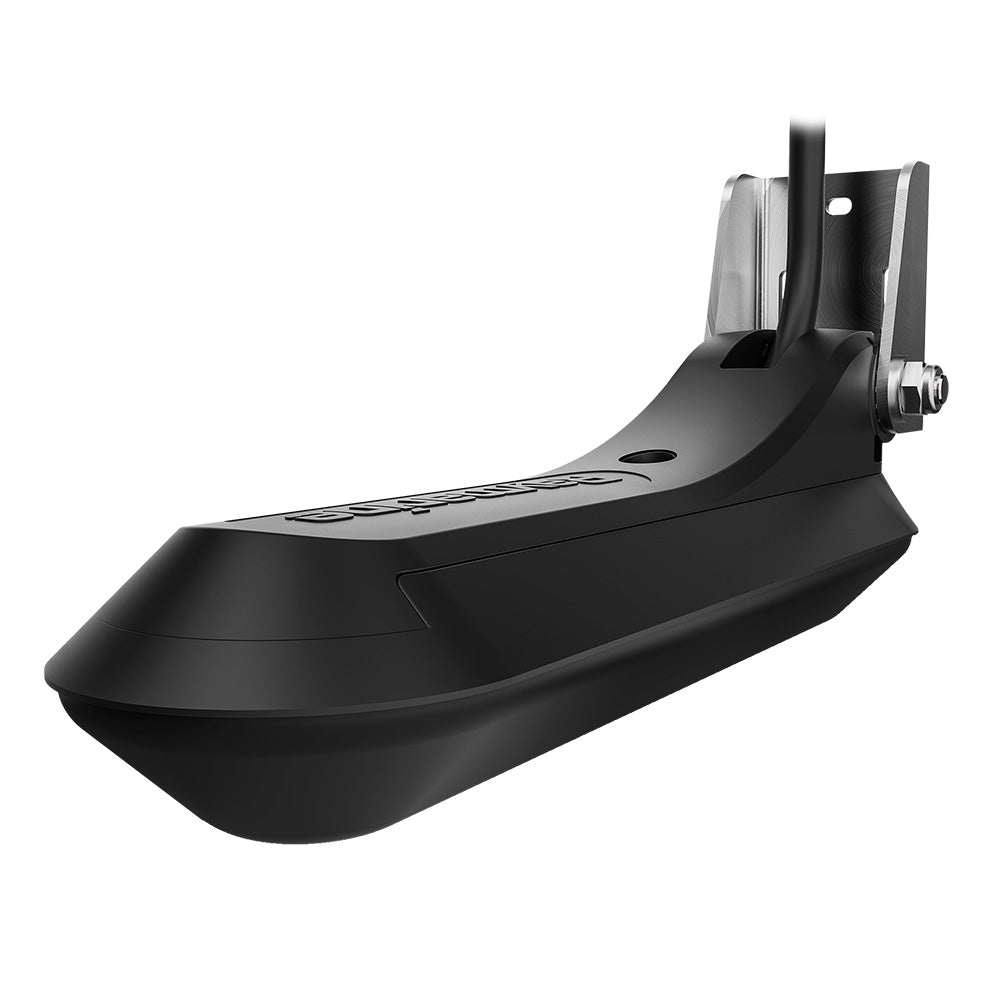

The Raymarine RVM-100 is a 4-channel, Wide Spectrum CHIRP transom mount transducer built for RealVision MAX compatible sonar modules and RealVision MAX-equipped chartplotters. It integrates DownVision, SideVision, high-frequency CHIRP fish targeting, and 3D sonar into a single unit, delivering detailed, life-like imagery of underwater structure and fish. A built-in AHRS (attitude and heading reference system) actively stabilizes 3D sonar returns to compensate for vessel motion, eliminating distortions from waves, swells, and maneuvering. A fast-response water temperature sensor is also built in. The stainless steel transom bracket includes an integrated kick-up feature that protects the transducer on impact with debris, rocks, or stumps. Compatible with the Axiom 2 Pro RVM series and RVM1600 Sounder Module. An optional stainless Jack-Plate mounting bracket (A80480) and spacer kit (A80482) are available for bass boats, flats boats, and skiffs.

Specifications:

• Transducer type: 4-channel, Wide Spectrum CHIRP
• Sonar modes: DownVision, SideVision, high-frequency CHIRP fish targeting, 3D sonar
• Power output: 600 watts (traditional CHIRP)
• Built-in AHRS for 3D sonar image stabilization
• Built-in fast-response water temperature sensor
• Mount type: Transom mount, designed for outboard-powered motorboats
• Mounting bracket: Marine-grade stainless steel with integrated kick-up feature
• Cable length: 8 meters
• Compatible with: Axiom 2 Pro RVM series, RVM1600 Sounder Module
• Optional accessories: Jack-Plate mounting bracket (A80480), spacer kit (A80482)
