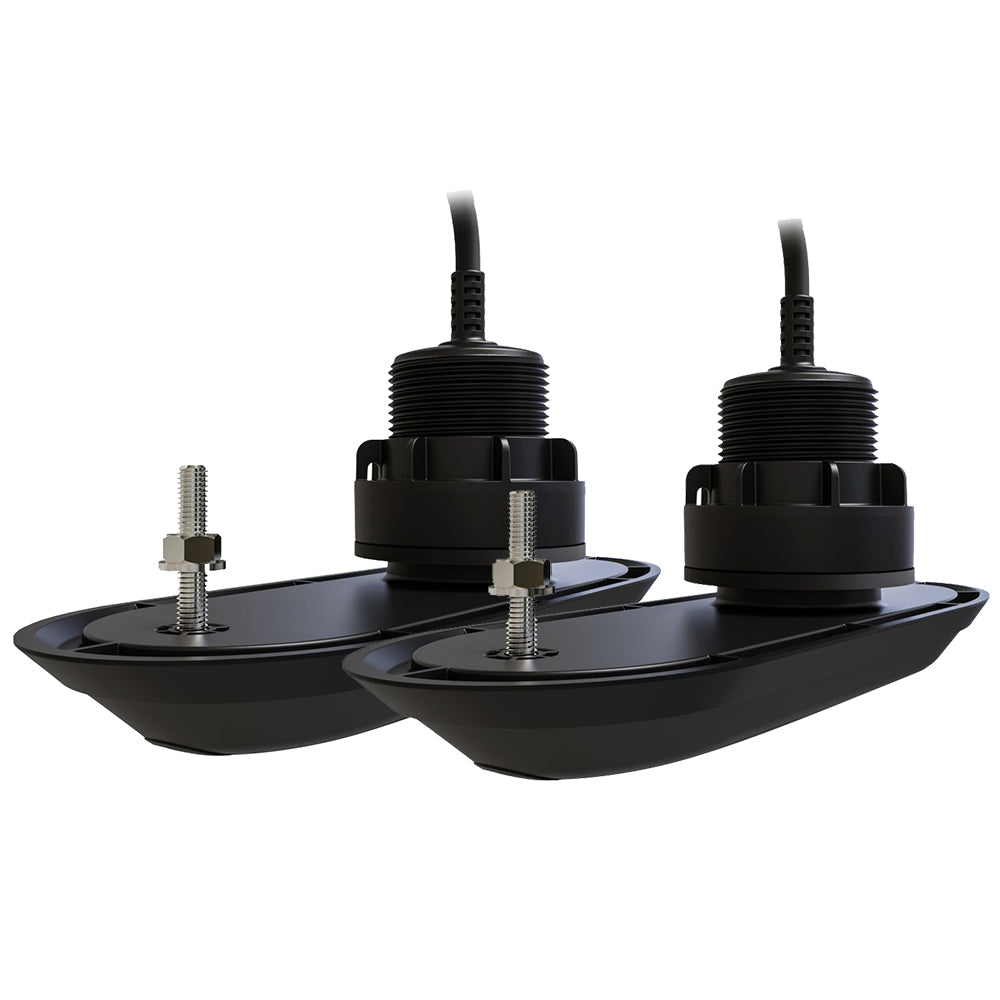

The Raymarine RV-320 Plastic Thru-Hull Transducer Pack brings RealVision 3D™ sonar to inboard and outboard boats via a 4-channel Wide Spectrum CHIRP system that combines DownVision™, SideVision™, high-frequency CHIRP fish targeting, and a built-in AHRS attitude and heading reference system that stabilizes imagery through waves, swells, and maneuvers. Internal offset engineering accommodates hull deadrise angles from 14° to 26°, eliminating the need for fairing blocks entirely, while the low-profile, near-flush design prevents drag and cavitation — making it equally capable on trailered vessels. A pair of plastic thru-hull transducers — one ported, one starboard — each transmit and receive in their respective direction plus downward, delivering a full 180° of underwater coverage even on boats with deep keels or underwater protrusions. A built-in fast-response water temperature sensor rounds out the feature set.

Specifications:

• Transducer type: 4-channel Wide Spectrum CHIRP
• Sonar modes: DownVision™, SideVision™, high-frequency CHIRP fish targeting, RealVision 3D™
• Built-in AHRS (attitude and heading reference system) for motion-stabilized imagery
• Built-in fast-response water temperature sensor
• Deadrise compensation: 14° to 26° (internal offset; no fairing blocks required)
• Coverage: 180° underwater (port transducer covers port and down; starboard transducer covers starboard and down)
• Hull compatibility: fiberglass, steel, or aluminum
• Low-profile, near-flush design; suitable for trailered boats
• Each transducer features a 2-meter pigtail
• Includes Y-cable joining connector and 8-meter (26 ft) extension cable
• Total cable length: 10 meters (33 feet)

In the Box:

• RV-320P Plastic Port Transducer with 2-meter cable
• RV-320S Plastic Starboard Transducer with 2-meter cable
• RealVision 3D Transducer Y-Cable
• RealVision 3D 8-meter (26-foot) Transducer Extension Cable
• Anti-rotation bolt kit
• Installation instructions
