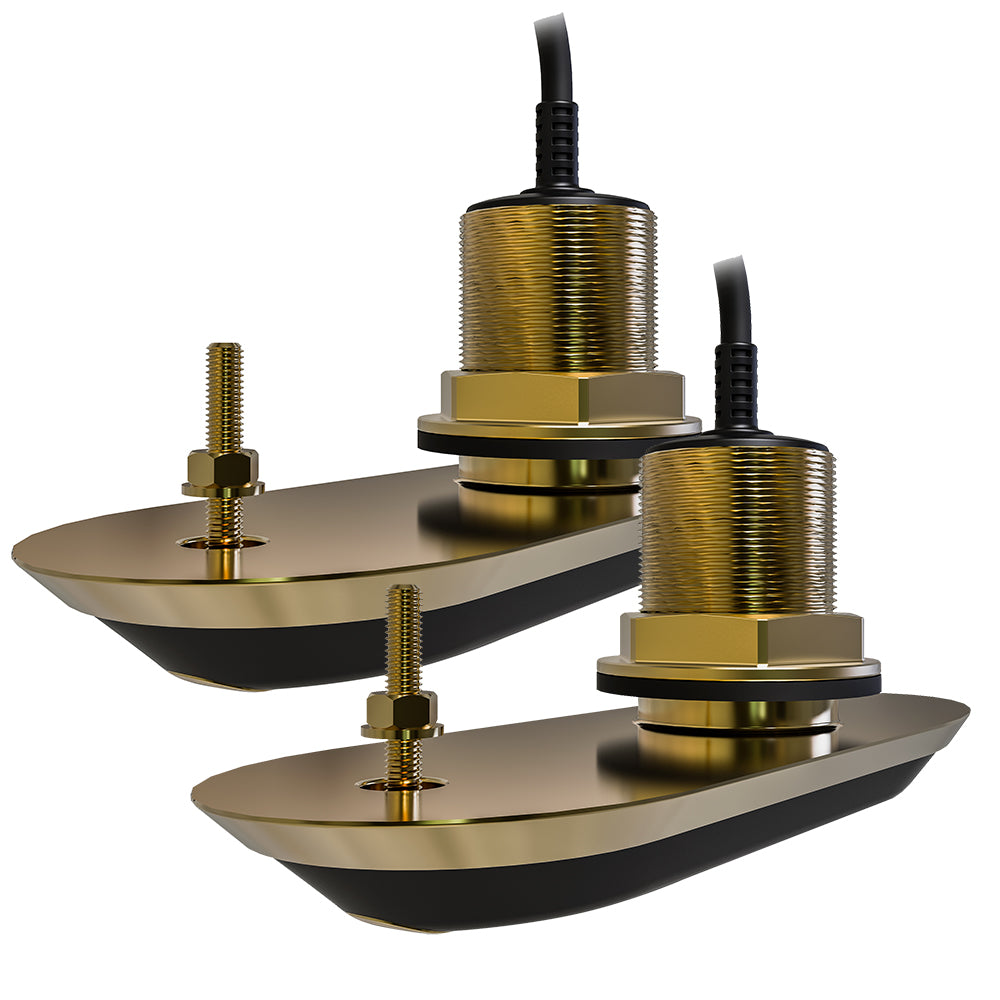

The Raymarine RV-220 RealVision 3D Bronze Thru-Hull Transducer Pair Pack delivers 4-channel, Wide Spectrum CHIRP sonar in a rugged cast-bronze through-hull package sized for inboard or outboard vessels. Internal offset built into each transducer accommodates hull deadrise angles from 13° to 20°, eliminating the need for fairing blocks entirely. A built-in AHRS stabilizes imagery through waves, swells, and turns, while one transducer covers port and downward and the other covers starboard and downward — providing a full 180° of underwater coverage even around deep keels or other protrusions. The low-profile, near-flush design creates no meaningful drag or cavitation, making it equally at home on trailered boats.

Specifications:

• Model: RV-220 Bronze Thru-Hull Transducer Pair Pack
• Deadrise angle accommodation: 13° to 20° (internal offset — no fairing blocks required)
• Sonar technologies: RealVision 3D™, DownVision™, SideVision™, high-frequency CHIRP fish targeting
• Channels: 4-channel Wide Spectrum CHIRP
• Coverage: Full 180° underwater — port transducer covers port and down; starboard transducer covers starboard and down
• Built-in AHRS: Yes — automatic vessel motion compensation for stable imagery
• Built-in water temperature sensor: Fast-response for quick, accurate readings
• Hull material compatibility: Fiberglass or wood
• Transducer body material: Rugged cast bronze
• Cable configuration: 2M pigtail per transducer + Y-cable + 8M extension cable = 10M (33') total overall length
• Compatible vessels: Inboard and outboard boats, including trailered boats

In the Box:

• RV-220P Bronze Port Transducer with 2M cable
• RV-220S Bronze Starboard Transducer with 2M cable
• RealVision 3D Transducer Y-Cable
• RealVision 3D 8M (26') Transducer Extension Cable
• Anti-rotation bolt kit
• Installation instructions
