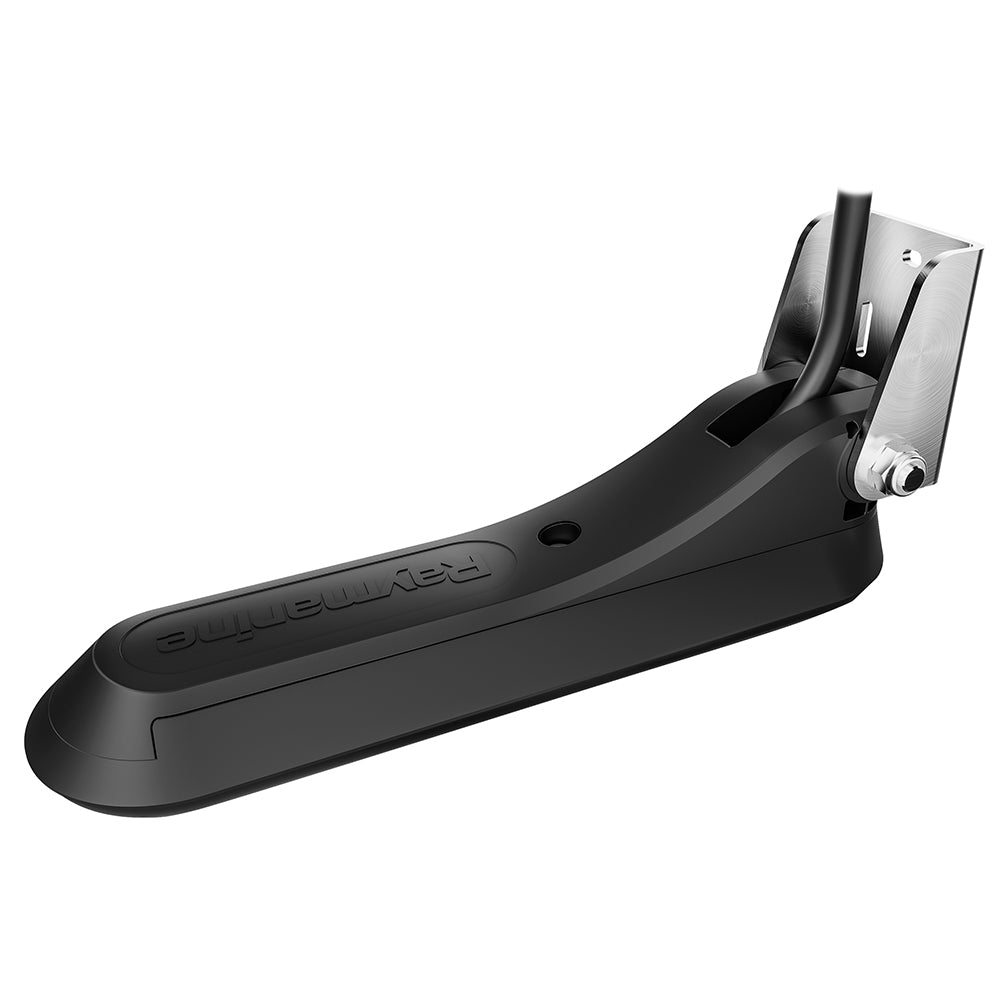

The Raymarine RV-100 packs four sonar technologies into a single transom-mount housing — DownVision, SideVision, Wide Spectrum CHIRP fish targeting, and RealVision 3D — giving you detailed, life-like underwater imagery from one unit. A built-in AHRS (attitude and heading reference system) actively compensates for vessel pitch and roll, keeping sonar images stable through waves, swells, and tight maneuvers. A fast-response water temperature sensor delivers quick, accurate surface readings alongside your sonar data. The rugged stainless steel mounting bracket includes an integrated kick-up mechanism that protects the transducer if it contacts debris, rocks, or stumps. The RV-100 can also be removed from the transom bracket and fitted to the optional stainless Jack-Plate bracket (sold separately) for bass boats, flats boats, and skiffs, or to the optional stainless step-mounting bracket (sold separately) for stepped-hull vessels.

Specifications:

• Transducer type: 4-channel, Wide Spectrum CHIRP All-In-One
• Sonar technologies: RealVision 3D, DownVision, SideVision, high-frequency CHIRP fish targeting
• Mount style: Transom mount (outboard-powered motor boats)
• Stabilization: Built-in AHRS (attitude and heading reference system) for motion compensation
• Water temperature sensor: Built-in, fast-response
• Bracket material: Marine-grade stainless steel with integrated kick-up protection
• Cable length: 8 meters (26 feet)
• Optional accessories: Stainless Jack-Plate bracket (sold separately), stainless steel step-mounting bracket (sold separately)

In the Box:

• RV-100 All-In-One Transom Mount Transducer with 8-meter (26-foot) cable
• Transom bracket
• Mounting hardware
• Installation instructions
