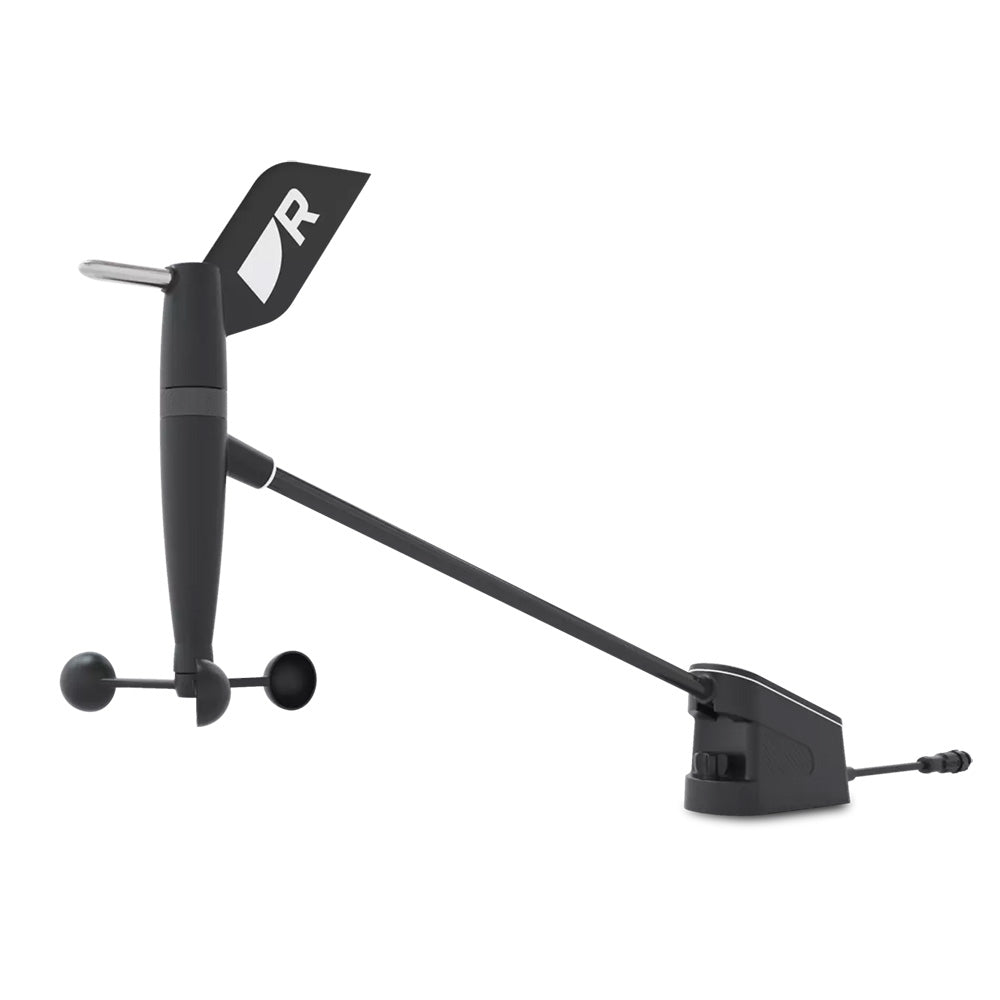

The Raymarine RSW Wired Smart Performance Wind Transducer delivers professional-grade wind speed and direction data straight from the masthead, no separate processors or complex calibration required. Wind tunnel-tested and precision-balanced, it pairs seamlessly with Raymarine Alpha Performance Displays and Axiom Chartplotters via SeaTalkNG, giving sailors reliable True Wind data on a 30-meter mast cable included as standard.

Specifications:

• Wind transducer length (including cable): 657.762 mm (25.90 in)
• Wind transducer length (excluding cable): 540.712 mm (21.29 in)
• Wired gateway length: 155.61 mm (6.13 in)
• Wind transducer width: 46.96 mm (1.85 in)
• Wired gateway width: 47.38 mm (1.88 in)
• Wind transducer height: 305.86 mm (12.04 in)
• Wired gateway height: 30.61 mm (1.21 in)
• Nominal supply voltage: 12 V dc (via SeaTalkNG)
• Operating voltage range: 9 V to 16 V dc
• Power consumption: <100 mW
• Fuse rating: SeaTalkNG backbone must be protected by a 5 A fuse
• NMEA 2000 LEN (based on nominal 9 V rating): 1
• Operating temperature range: -25°C to +55°C (-13°F to +131°F)
• Storage temperature range: -30°C to +70°C (-22°F to +158°F)
• Relative humidity: masthead 100% / below deck up to 93% @ 40°C
• Waterproof rating: wind transducer IPx6/IPx7; wired gateway IPx3
• Wind rating: 115 mph (185 kph)
• Vibration standard: EN 60945:2002 (exposed)

In the Box:

• Wind transducer
• Smart Wind wired gateway
• Mast cable, 30 m (98.43 ft) reel
• SeaTalkNG to DeviceNet adaptor cable, 120 mm (4.72 in)
• No. 10 x 3/4 in self-tapping screws x 4 (wind transducer mounting)
• No. 7 x 3/4 in self-tapping screws x 2 (gateway mounting)
• 40 mm (1.57 in) heat shrink tube (for insulating ground wire when shortening mast cable)
• Ring crimp terminal (for additional ground connection when gateway is not mounted on a metal surface)
• Documentation
