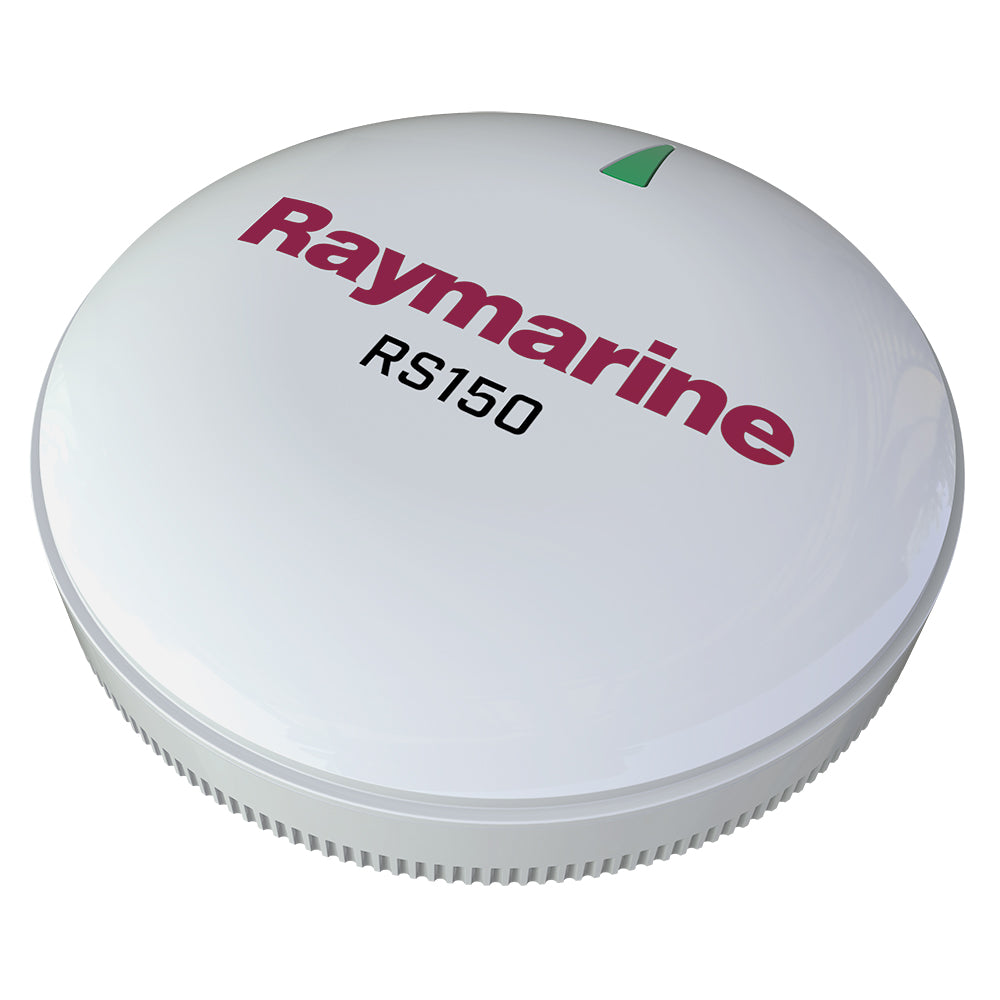

The Raymarine RS150 is a remotely mounted, 72-channel GPS and GLONASS receiver built for Raymarine chartplotters and navigation systems. With 10Hz position updates, SBAS augmentation, and dual-constellation GNSS support, it delivers fast, accurate positioning in a low-profile waterproof housing compatible with SeaTalkng and NMEA 2000 networks.

Specifications:

• 72-channel GPS receiver
• Positioning systems: GPS and GLONASS (GNSS receiver)
• Update rate: 10Hz position updates
• Satellite Differential GPS compatible; SBAS enabled with WAAS (United States), EGNOS (Europe), MSAS (Japan), and GAGAN (India) support
• Differential acquisition: Automatic
• Position accuracy (95%): <15 m
• Position accuracy with SDGPS (95%): <5 m
• Speed accuracy (95%): <0.3 kt
• Sensitivity: High-sensitivity acquisition down to -163 dBm
• Time to first fix, cold start: <2 minutes (typically <45 seconds)
• Time to first fix, hot start: <8 seconds; 72-hour holdover battery enables hot start
• Geodetic datum: WGS84
• Nominal supply voltage: 12V DC, powered by N2K bus
• Operating voltage range: 8–32V DC
• Power consumption: 30 mA max (NMEA LEN = 1)
• Operating temperature: -13°F to 131°F (-25°C to +55°C)
• Relative humidity: 93% max
• Waterproof rating: IPX6/7
• Supported protocols: SeaTalkng; NMEA 2000 certified (via DeviceNet adapter cable)
• Mounting: Low-profile surface mount or optional pole mount
