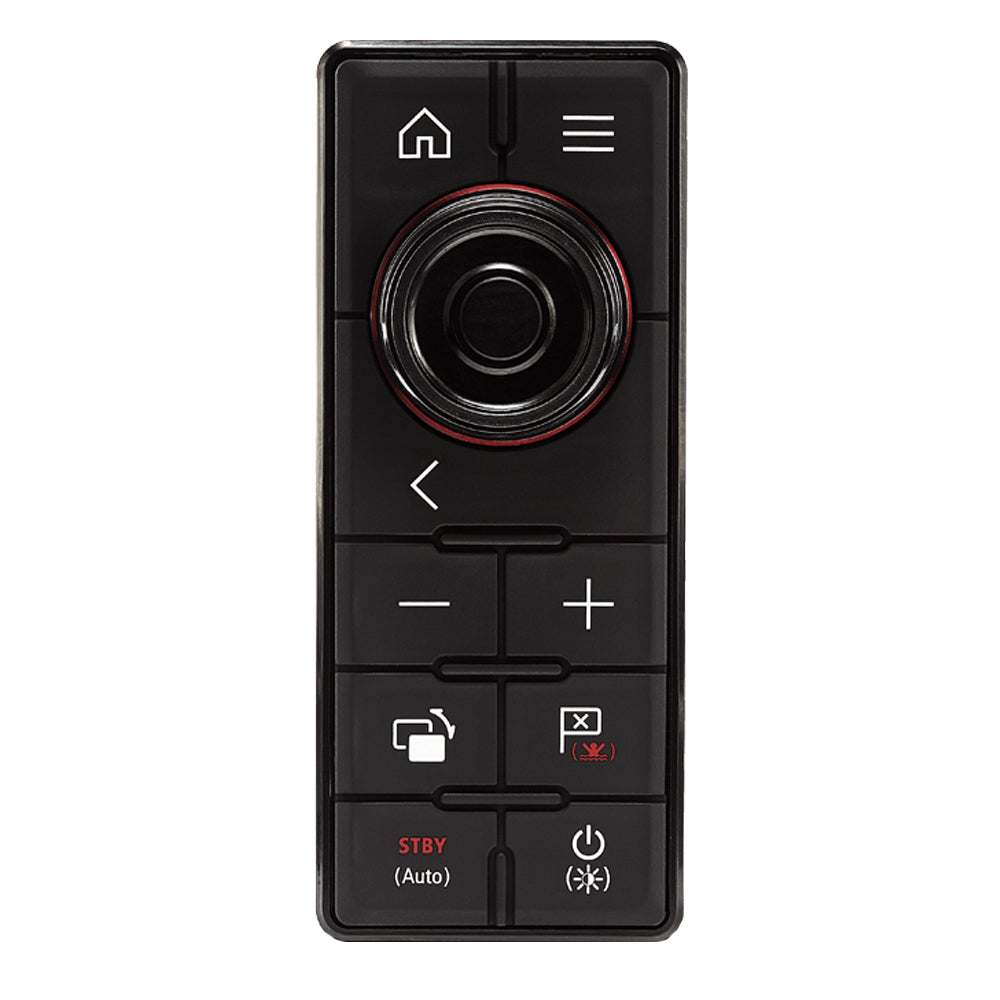

The Raymarine RMK-10 is an ultra-compact wired keypad that puts full control of compatible Raymarine multifunction displays at any helm position or mounting location. Fully backlit dedicated keys cover home, menu, zoom in/out, window management, waypoint entry, power/brightness, and Evolution autopilot functions. The same multifunction rotary controller with integrated cursor pad found on eS Series MFDs is built right in. Surface or flush mounting is supported, and key mats for both horizontal and vertical orientations give maximum placement flexibility — including helm chair arms, overhead electronics boxes, below-deck nav tables, and salon screens connected via VGA or HDMI output. RayNet high-speed networking allows the RMK-10 to manage a single display or multiple displays at the same helm with seamless switching. On aSeries and gS Series Multitouch displays, it enables full HybridTouch™ capability, letting operators navigate by touch, keypad, or any combination through the LightHouse II interface.

Specifications:

• PoE Class: Class 1
• Nominal supply voltage: 12 / 24 V DC
• Operating voltage range: 10.8 V DC to 31.2 V DC
• Power consumption: 3.84 W

Environmental:

• Operating temperature: -25°C to +55°C (-13°F to 131°F)
• Storage temperature: -30°C to +70°C (-22°F to 158°F)
• Relative humidity: Maximum 75%
• Waterproof rating: IPX6

Wired Connections:

• Network / power: 1 x RayNet connector — gS Series: 1000 Mb/s plus PoE; aSeries, cSeries, eSeries: 100 Mb/s
• Alternate power: 1 x power connector
