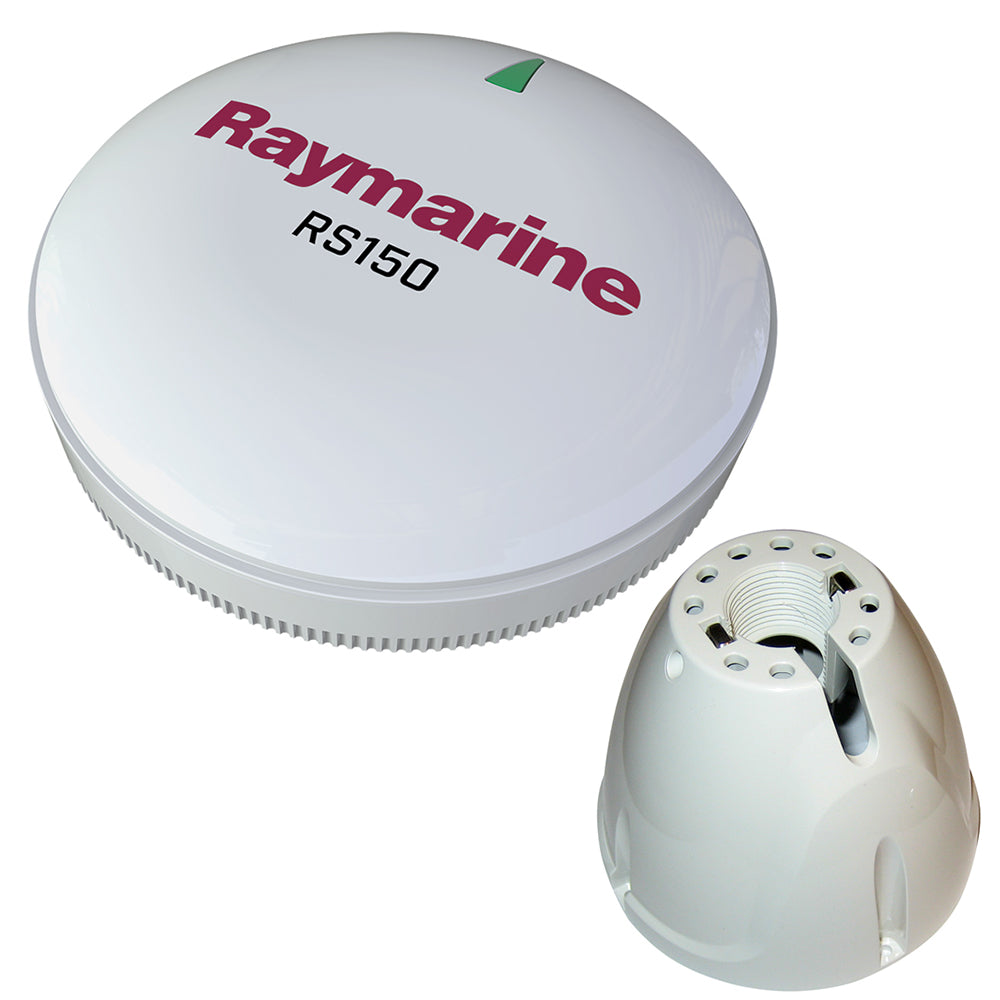

The Raymarine RayStar 150 (RS150) is a 72-channel GPS/GNSS sensor built for remote mounting on Raymarine navigation systems. It delivers fast 10Hz position updates, dual GPS and GLONASS satellite support, and automatic SBAS differential correction via WAAS, EGNOS, MSAS, and GAGAN. This bundle includes the RS150 sensor along with the dedicated pole mount accessory designed specifically for it, giving you a clean, elevated installation option in addition to standard low-profile surface mounting.

Features:

• 72-channel GPS receiver
• 10Hz position update rate for fast, responsive positioning
• GNSS receiver with GLONASS compatibility alongside GPS
• SBAS-enabled with automatic differential acquisition — supports WAAS (US), EGNOS (Europe), MSAS (Japan), and GAGAN (India)
• SeaTalkng and NMEA 2000 certified (DeviceNet adapter cable required for NMEA 2000)
• Low power draw: 30mA max (1 LEN)
• Designed for low-profile surface mounting or pole mounting
• Includes dedicated RS150 pole mount

Specifications:

• Nominal supply voltage: 12V DC, powered via N2K bus
• Operating voltage range: 8–32V DC
• Power consumption: 30mA max (NMEA LEN = 1)
• Operating temperature: -13°F to 131°F (-25°C to +55°C)
• Relative humidity: 93% max
• Waterproof rating: IPX6/7
• Connection protocols: SeaTalkng; NMEA 2000 certified (via DeviceNet adapter)
• Sensitivity: High sensitivity — acquisition down to -163dBm
• Number of channels: 72
• Positioning systems: GPS and GLONASS
• Satellite differential type: WAAS, EGNOS, MSAS, GAGAN
• Differential acquisition: Automatic
• Position accuracy (95%): <15m
• Position accuracy with SDGPS (95%): <5m
• Speed accuracy (95%): <0.3kt
• Time to first fix, cold start: <2 minutes (typically <45 seconds)
• Time to first fix, hot start: <8 seconds — 72-hour holdup battery enables hot start
• Geodetic datum: WGS84
