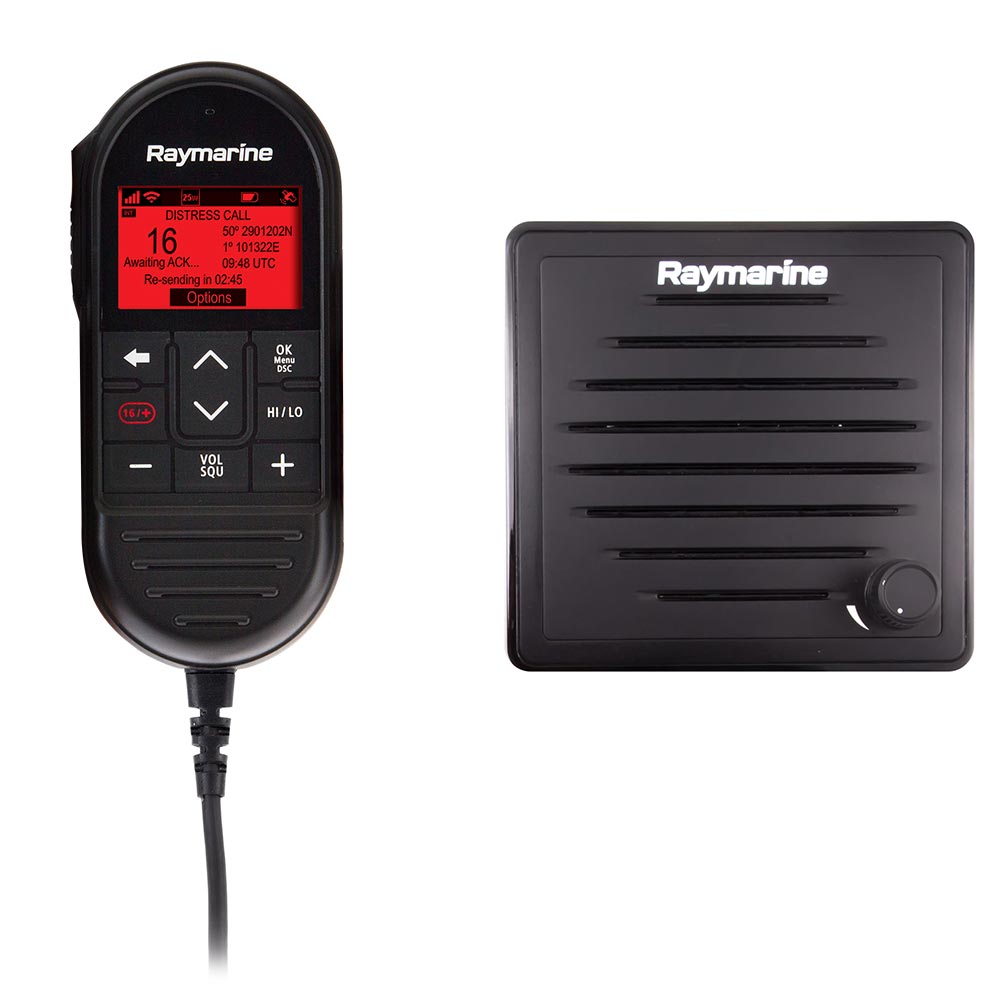

The Raymarine Ray90 Wired Second Station Kit delivers everything needed to add a fully functional second station to an existing Ray90 system. This kit pairs a passive speaker, a RayMic wired handset, and a 10M RayMic extension cable, giving you clear audio and complete radio control at a secondary helm position. The Ray90's black-box architecture keeps the transceiver hidden while the ergonomic RayMic handset handles all operations — scanning, DSC calling, loudhailer, and fog signal — with oversized backlit keys built for real on-water use.

Specifications:

• Kit includes: passive speaker, RayMic wired handset, and 10M RayMic extension cable
• Black-box, multi-station capable VHF radio design
• Expandable to 2 handsets total
• 25-watt transmitter with commercial-grade electronics
• Class D Digital Selective Calling (DSC) with integrated GPS
• MMSI number input for full DSC safety and calling setup
• Position tracking for up to 5 nearby DSC-equipped vessels
• Vessel position data automatically shared with Raymarine MFD
• ATIS system support on navigable inland waterways (Europe)
• Built-in loudhailer and fog signal generator
• 30-watt audio output via optional hailing horn connection
• 2-way talkback capability through loudhailer
• Automatic fog signal modes for power and sailing vessels underway and at anchor
• Transceiver unit cast in solid aluminum for shock/vibration resistance and heat dissipation
• RayMic handset features super-bright backlighting and oversized keys
• Channel scanning, dual-watch, tri-watch, and weather alert standard
• Optional external GPS compatible (GA150 passive GPS antenna required for GPS operation)
• NMEA 2000 and NMEA 0183 networking

Resources:

• Installation Guide (PDF)
