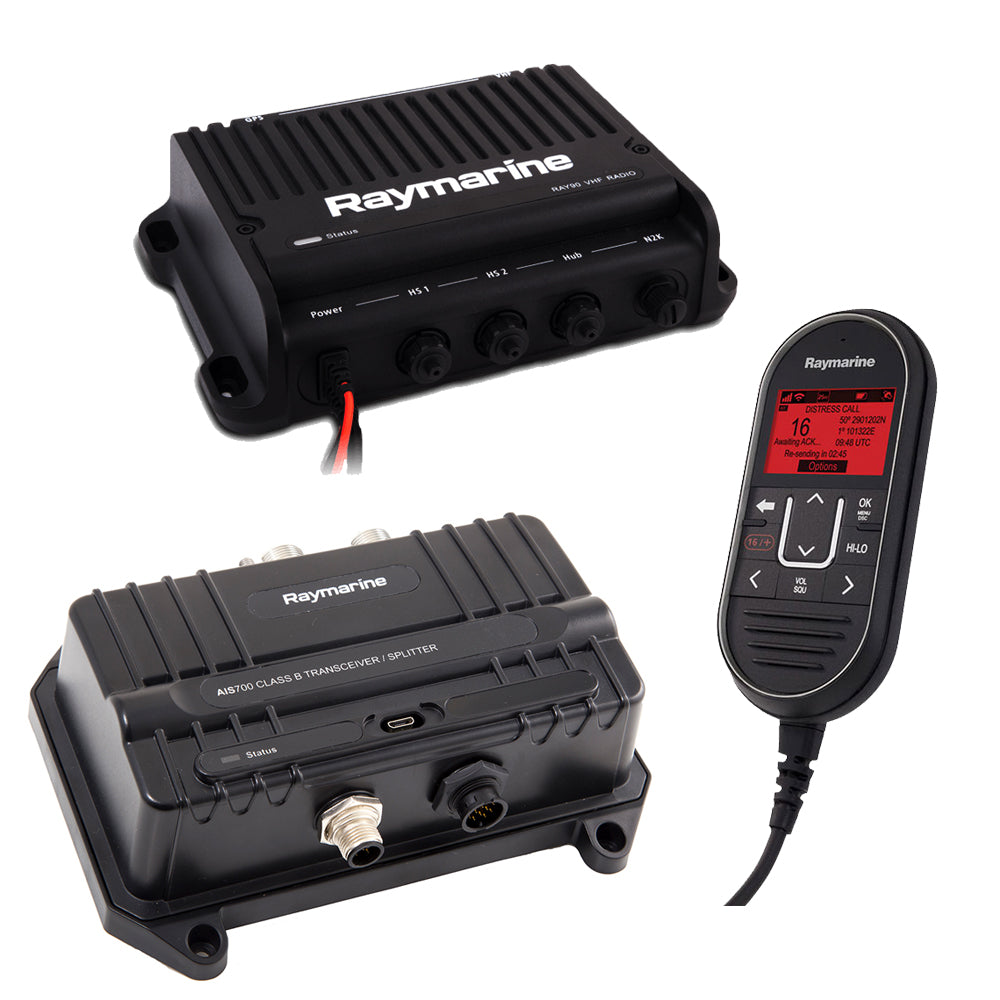

The Raymarine Ray90 VHF Radio and AIS700 Bundle pairs a modular black-box VHF radio system with a Class B AIS transceiver and antenna splitter, delivering advanced communications, DSC safety calling, position tracking, and AIS vessel awareness in a single integrated package built for serious offshore and coastal use.

Ray90 VHF Radio

The Ray90 uses a hidden transceiver unit paired with the RayMic wired handset and passive speaker for full-featured radio control without a cluttered helm. The cast aluminum transceiver resists shock, vibration, and heat, while the RayMic handset features super-bright backlighting and oversized keys for reliable operation in all conditions. A 25-watt transmitter and commercial-grade electronics deliver long-range, dependable performance. Channel scanning, dual-watch, tri-watch, and weather alert are all standard. Class D DSC with integrated GPS simplifies safety setup — enter your MMSI number and you're operational. For GPS functionality, the optional GA150 passive GPS antenna is required.

The built-in loudhailer delivers 30 watts of audio output to an optional hailing horn, with two-way talkback capability. The fog signal generator can automatically sound required signals for power and sailing vessels underway or at anchor. Position tracking lets you monitor up to five nearby DSC-equipped vessels, with positions automatically shared to a compatible Raymarine MFD. The system supports NMEA 2000 and NMEA 0183 networking and is expandable to two handsets. In European inland waterways, the Ray90 also supports the ATIS system.

AIS700 Class B AIS Transceiver with Antenna Splitter

The AIS700 is a Class B AIS transceiver designed to integrate with Raymarine systems, providing vessel transmit and receive capability along with an included antenna splitter for shared VHF/AIS antenna use.

Important — FCC Programming Requirement: All units sold in the US must be programmed by a qualified technician as required by the FCC. A copy of your MMSI registration or FCC Ship Station License, along with the vessel master or owner's signature on the completed programming form, is required at time of purchase. Download the programming form here.

Specifications:

• Radio type: Black-box modular VHF DSC radio (Class D)
• Transmit power: 25 watts (VHF); 30 watts audio output (loudhailer)
• Handset: RayMic wired handset with super-bright backlighting and oversized keys
• Speaker: Passive speaker included
• Expandable: Up to 2 RayMic handsets supported
• Wireless handset and active speaker available as optional accessories
• Features: Channel scanning, dual-watch, tri-watch, weather alert
• Loudhailer: Built-in with fog signal generator; 2-way talkback; optional hailing horn required for external audio
• Position tracking: Up to 5 nearby DSC-equipped vessels; auto-shares to Raymarine MFD
• GPS: Integrated (optional GA150 passive GPS antenna required for operation)
• Networking: NMEA 2000 and NMEA 0183
• Construction: Cast aluminum transceiver for shock, vibration, and heat resistance
• ATIS support: Yes (Europe, navigable inland waterways)
• AIS unit: AIS700 Class B AIS Transceiver with antenna splitter

In the Box:

• Ray90 / Ray91 VHF DSC Radio (including fitted power and data cable)
• RayMic handset cradle
• RayMic handset
• RayMic handset adaptor cable (12-pin female to 12-pin male with RCA audio)
• Passive speaker
• Passive speaker mounting gasket
• Passive speaker mounting screws (x4)
• VHF radio mounting screws (x4)
• Handset cradle mounting screws (x4)
• DeviceNet to SeaTalkng® adaptor
• Documentation
• AIS700 Class B AIS Transceiver with antenna splitter
