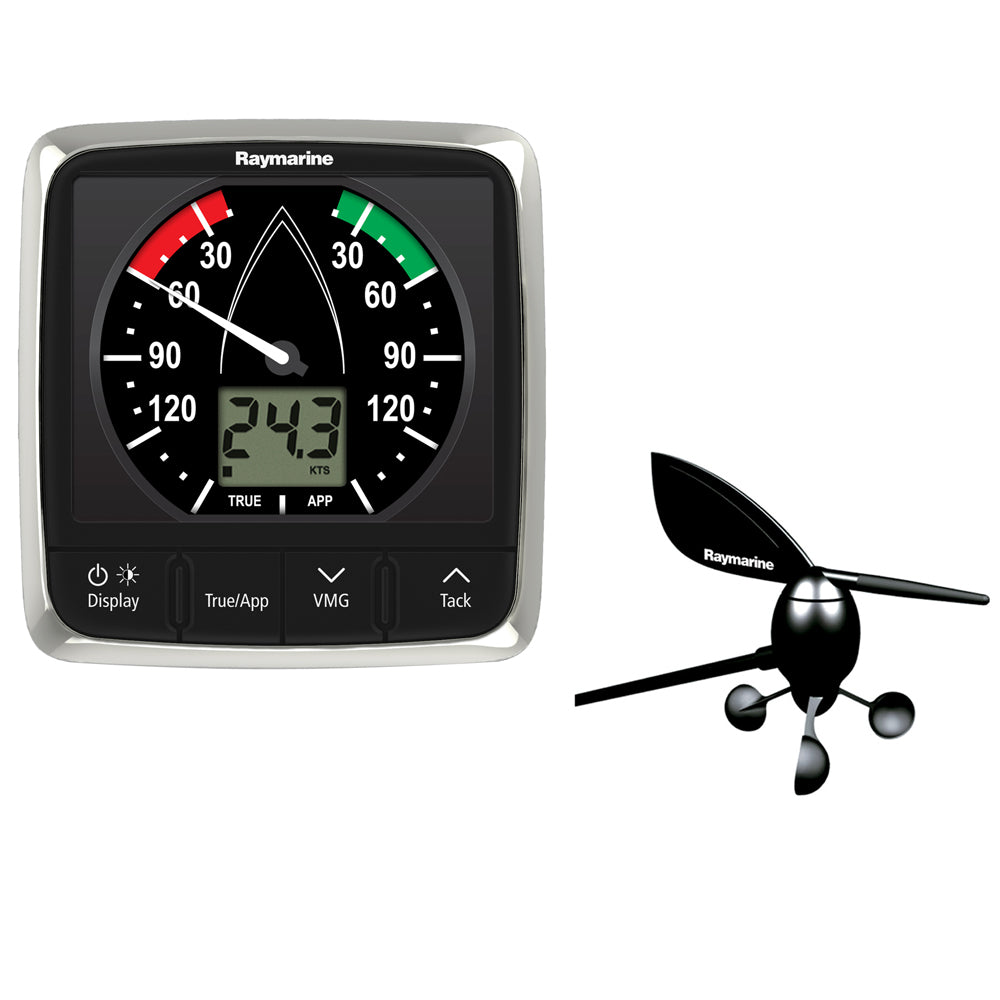

The Raymarine i60 Wind Display System pairs a full-featured analog wind instrument with a masthead wind vane transducer, giving cruising and racing sailboat sailors a clean, readable helm display optimized for both daylight and night conditions. SeaTalk^ng networking keeps wiring straightforward, while backward compatibility with SeaTalk 1 makes it easy to upgrade existing Raymarine installations without a full rewire.

Specifications:

• SeaTalk^ng (NMEA 2000/CANBUS) and SeaTalk 1 networking supported
• Analog dial wind display with high-contrast LCD text and graphics
• Red LED backlighting for night-time visibility
• Large, crisp LCD digits for easy reading in all light conditions
• Displays: wind speed, wind direction, Beaufort scale, max wind speed, VMG, and tack
• Alarms: high and low apparent wind angle, low true wind speed, maximum true wind speed
• Apparent wind display standard; true wind available when integrated with a compass or autopilot and speed instrument
• Short-arm wind vane transducer included with 30 m (97.5 ft) cable
• Compatible with Raymarine masthead transducer (recommended for sailboats)
• 110 mm x 115 mm footprint — matches Raymarine ST60+ instrument cutout for straightforward upgrades
• Operating voltage: 12V DC
• Power draw: less than 1W as a repeater; 2.4W when hosting a transducer
• Waterproof rating: IPX6
• Compatible with i70 Color Multifunction Instrument, p70 and p70R Color Autopilot controllers
• Compatible with Raymarine a-Series, c-Series, and e-Series Multifunction Displays
• Includes low-profile surface mounting kit and silicone rubber sun cover
• Optional bracket mounting kit available separately
• Warranty: 2 years standard; upgradeable to 3 years at no charge when registered online within 90 days of purchase

Resources:

• Owner's Manual (PDF)
