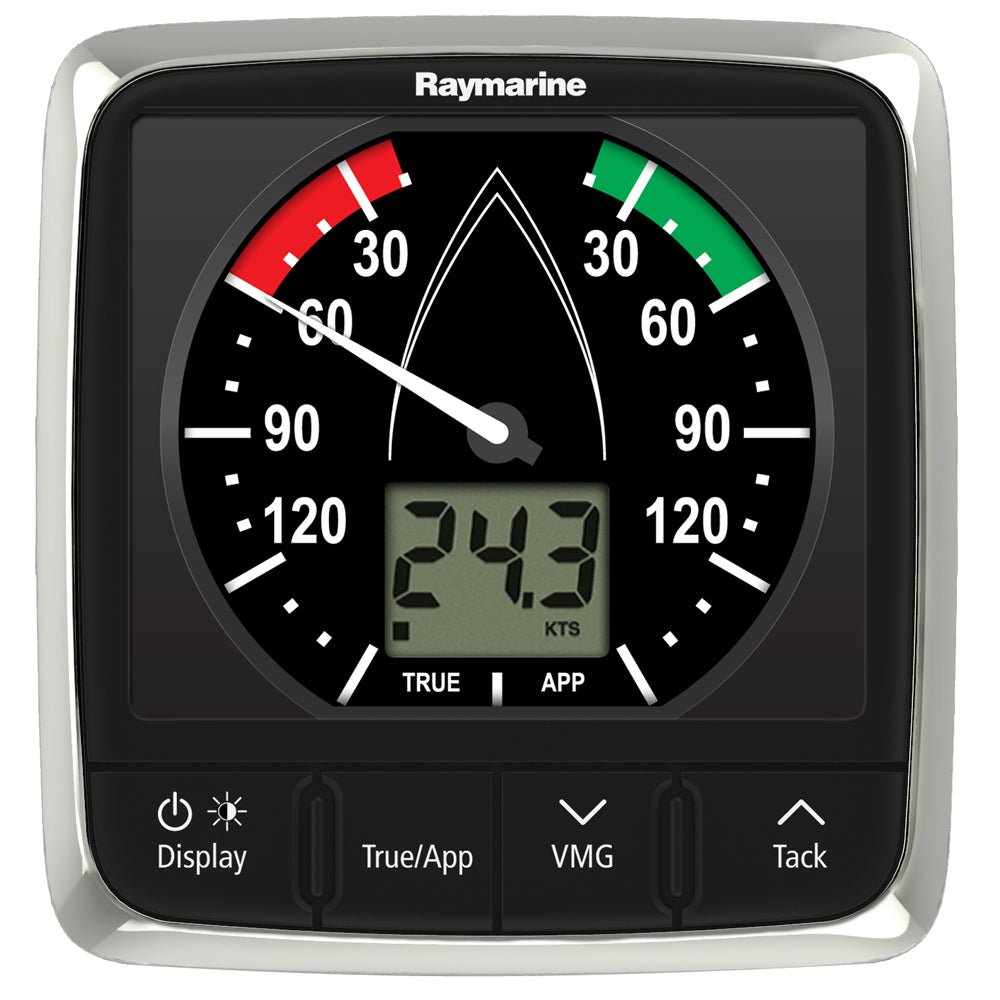

The Raymarine i60 Wind Display System brings full-featured wind instrumentation to cruising and racing sailboats, combining an analog dial with a high-contrast LCD, SeaTalk^ng NMEA 2000 networking, and compatibility across Raymarine's current instrument and multifunction display lineup. Its 110 mm × 115 mm footprint matches the legacy ST60+ footprint, so swapping out older gear requires minimal re-drilling or hardware changes.

i60 Wind Features:

• Compatible with Raymarine's masthead transducer (recommended for sailboats) or the Rotavecta transducer (recommended for powerboats)
• Displays wind speed, wind direction, Beaufort scale, maximum wind speed, VMG, and tack
• Alarms for high and low apparent wind angle, low true wind speed, and maximum true wind speed
• Shows apparent wind at all times; true wind available when integrated with a compass or autopilot and a speed instrument

Key Features:

• Ultra-modern styling complements Raymarine a-Series, c-Series, and e-Series multifunction displays and instrument systems
• Extra-large, razor-sharp LCD digits with high contrast for excellent visibility in all lighting conditions
• Red backlighting for outstanding nighttime visibility
• SeaTalk^ng NMEA 2000 / CANBUS networking plus SeaTalk 1 networking for maximum flexibility and easy upgrades from older systems
• Fully compatible with i70 color multifunction instruments, p70 and p70R color autopilot controllers
• 110 mm × 115 mm footprint matches older Raymarine ST60+ instrumentation for straightforward upgrades
• Stand-alone or fully networked installation supported
• Connect analog wind transducers directly to the display, or use it as a SeaTalk^ng smart-transducer repeater

Specifications:

• Operating voltage: 12V DC
• Power consumption: less than 1W (repeater mode); 2.4W (hosting a transducer)
• Waterproof rating: IPX6
• Display type: analog dial with high-contrast LCD text and graphics
• Backlight color: red
• Footprint: 110 mm × 115 mm
• Networking: SeaTalk^ng (NMEA 2000 / CANBUS) and SeaTalk 1
• Warranty: 2-year Raymarine warranty, upgradeable to 3 years at no charge when registered online within 90 days of purchase
• Included accessories: low-profile surface mounting kit, silicone rubber sun cover
• Optional accessory: bracket mounting kit (sold separately)

Resources:

• Owner's Manual (PDF)
