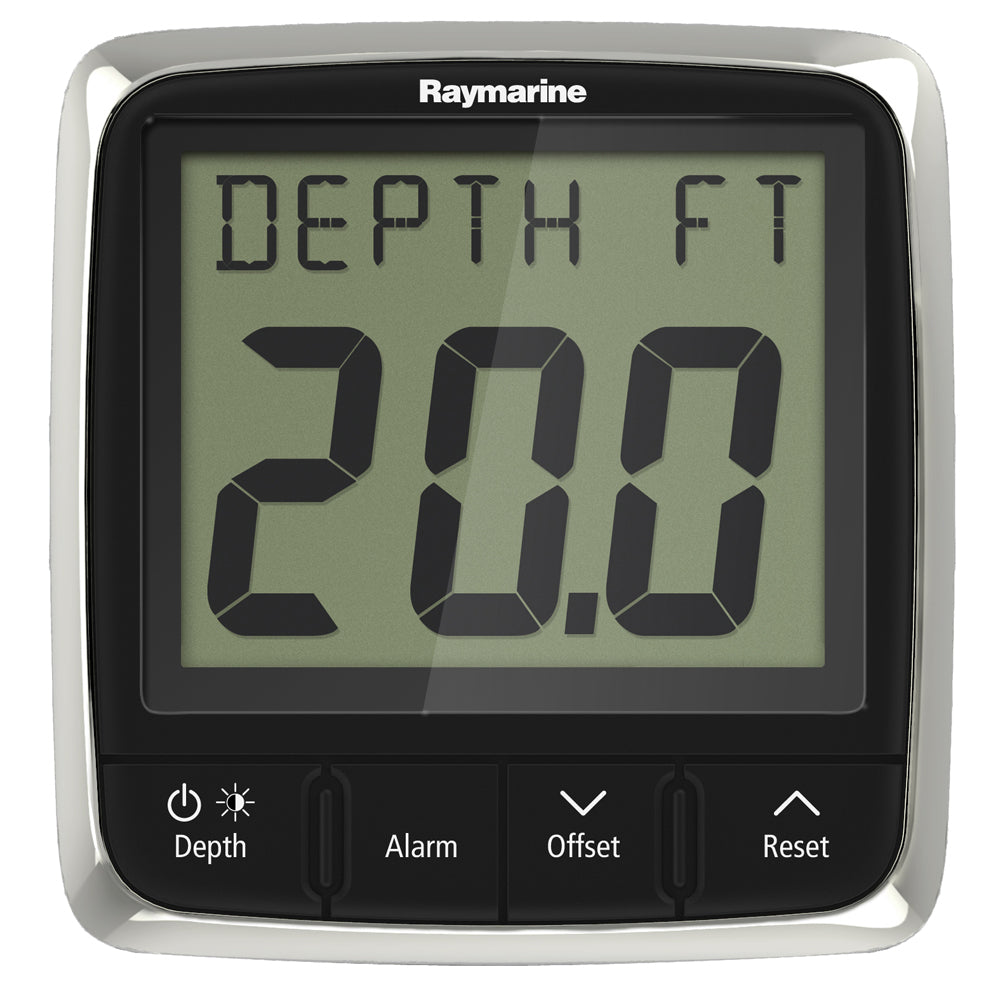

The Raymarine i50 Depth Display System pairs a sharp monochrome LCD instrument with a nylon thru-hull transducer, delivering accurate depth readings alongside max/min depth tracking and shallow or deep anchor and depth alarms. SeaTalk^ng NMEA 2000 CANBUS networking and legacy SeaTalk 1 compatibility make it straightforward to integrate into new builds or upgrade older ST60+ installations. The 110 mm × 115 mm footprint matches Raymarine's ST60+ series directly, and the instrument works as either a standalone display hosting its own transducer or a repeater on a broader SeaTalk^ng network. Compatibility extends to the i70 color multifunction instrument, as well as p70 and p70R autopilot controllers.

Specifications:

• Displays depth, max depth, and minimum depth
• Shallow and deep depth alarms; shallow and deep anchor alarms
• Large, high-contrast LCD with extra-large digits for clear readability
• Red backlighting for low-light and night-time visibility
• SeaTalk^ng (NMEA 2000 CANBUS) and SeaTalk 1 networking
• Compatible with Raymarine i70, p70, and p70R color instruments and autopilots
• Supports additional i50 depth displays on the same network
• Built-in depth transducer connection
• 110 mm × 115 mm footprint — direct replacement for Raymarine ST60+ instruments
• Complements Raymarine a-Series, c-Series, and e-Series multifunction displays
• Operating voltage: 12 V DC
• Power consumption: under 1 W as a repeater; 2.4 W when hosting a transducer
• Waterproof rating: IPX6
• Includes low-profile surface mounting kit and silicone rubber sun cover
• Optional bracket mounting kit available separately
• 2-year warranty; upgradeable to 3 years at no charge with online registration within 90 days of purchase
