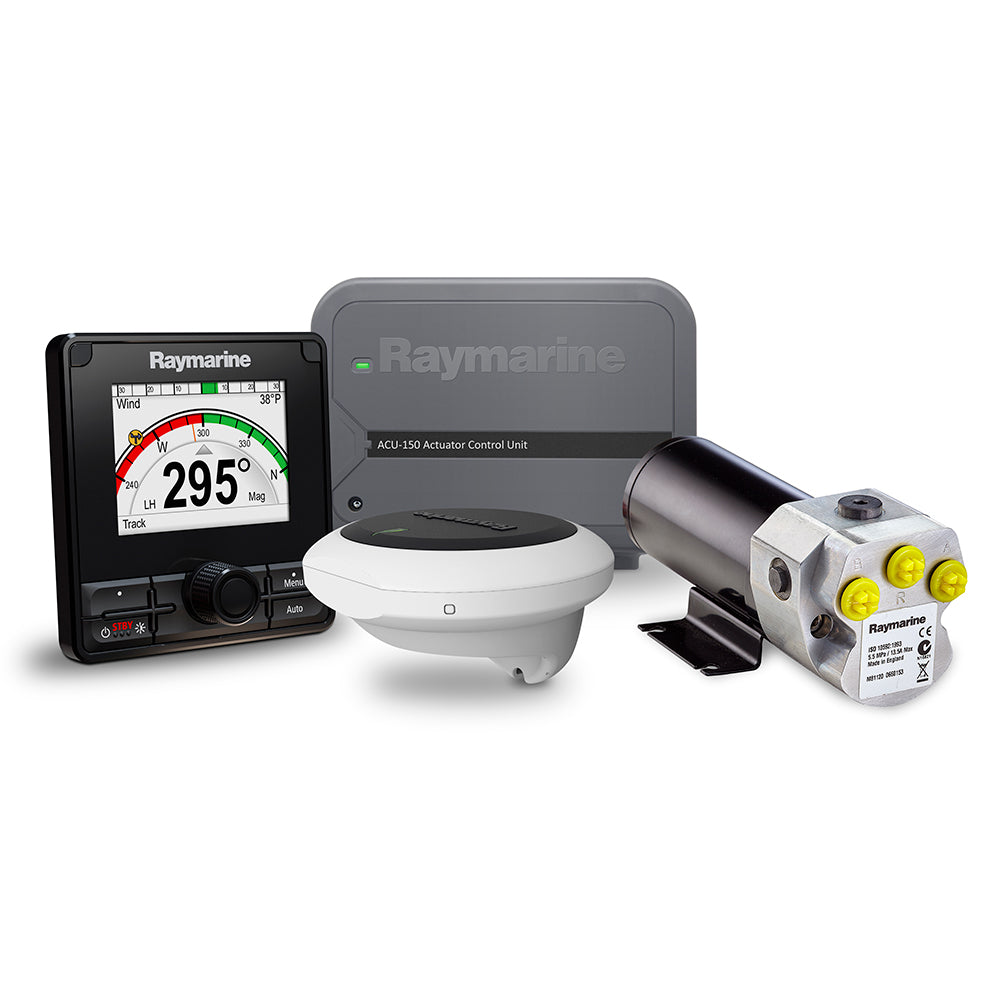

The Raymarine Evolution EV-150 Hydraulic Autopilot System Pack delivers a complete, ready-to-install autopilot solution for small to medium hydraulically steered powerboats. Built around a 9-axis EV sensor core, the system automatically adapts to your vessel's steering characteristics — no manual calibration needed. Raymarine's patented Hydro-Balance™ technology compensates for hydraulic elasticity, steering asymmetry, and torque steer, keeping you on course from trolling speed to wide-open throttle. TrackIQ™ algorithms tighten waypoint tracking by stabilizing GPS data using pitch, roll, yaw, and heave inputs. Built-in trolling patterns let the autopilot handle boat positioning while you focus on rigging and fishing.

Specifications:

• System: Evolution EV-150 Hydraulic Autopilot Pack
• Included controller: E70329 p70Rs Control Head
• Included sensor: E70096 EV-1 Sensor Core (9-axis)
• Included actuator control unit: E70430 ACU-150
• Included pump: M81120 Type 1 12V Hydraulic Pump
• Included cabling: R70160 Evolution Cable Kit
• Steering system compatibility: Hydraulic steering (outboard motors and rudder-reference-less systems supported)
• Steering ram capacity: 4.9 cu. in. (80 cc) to 14.0 cu. in. (230 cc)
• Electrical system: 12V DC only
• Key technologies: Hydro-Balance™, TrackIQ™, built-in trolling patterns
• Setup: Self-calibrating — no user adjustment required
