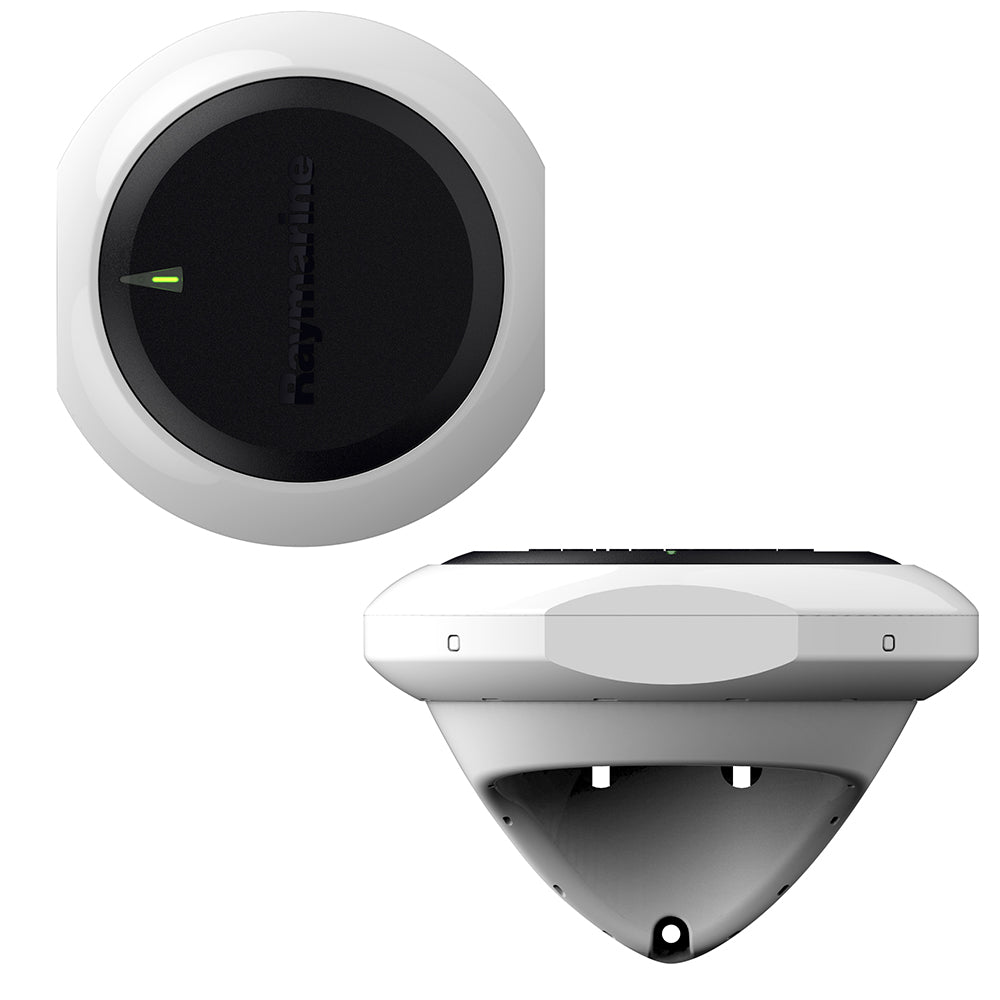

The Raymarine EV-2 Sensor Core sits at the heart of every Evolution autopilot system, combining a 9-axis motion sensor with the Evolution autopilot processor in one compact, sealed housing. Designed for the latest drive-by-wire steering systems, the EV-2 connects directly to Raymarine's SeaTalkng bus and includes a dedicated CAN Bus port for direct integration with steer-by-wire platforms — eliminating the need for a separate Autopilot Control Unit (ACU). Mount it above or below decks; the enclosure meets IPX6 and IPX7 waterproofing and submersion standards.

Specifications:

• 9-axis sensor monitors vessel heading, pitch, roll, and yaw in all three dimensions
• Autopilot processor integrated into the sensor core housing for simplified installation
• Solid-state sensor technology provides dynamic heading accuracy within 2 degrees in all conditions
• Auto-compensation for onboard magnetic fields; reliable heading accuracy in northern and southern extremes
• Flexible mounting — above or below deck; fully sealed IPX6 and IPX7 rated enclosure
• SeaTalkng connectivity to the autopilot control head and ACU
• Dedicated CAN Bus port for direct connection to steer-by-wire systems including ZF Pod Drives, Yamaha Helm Master, Volvo IPS, and SeaStar Solutions Optimus
• Single CAN Bus connection eliminates the need for a separate Autopilot Control Unit (ACU)
• Delivers fast, reliable heading data for MARPA, radar overlay, and heading modes on Raymarine multifunction displays
