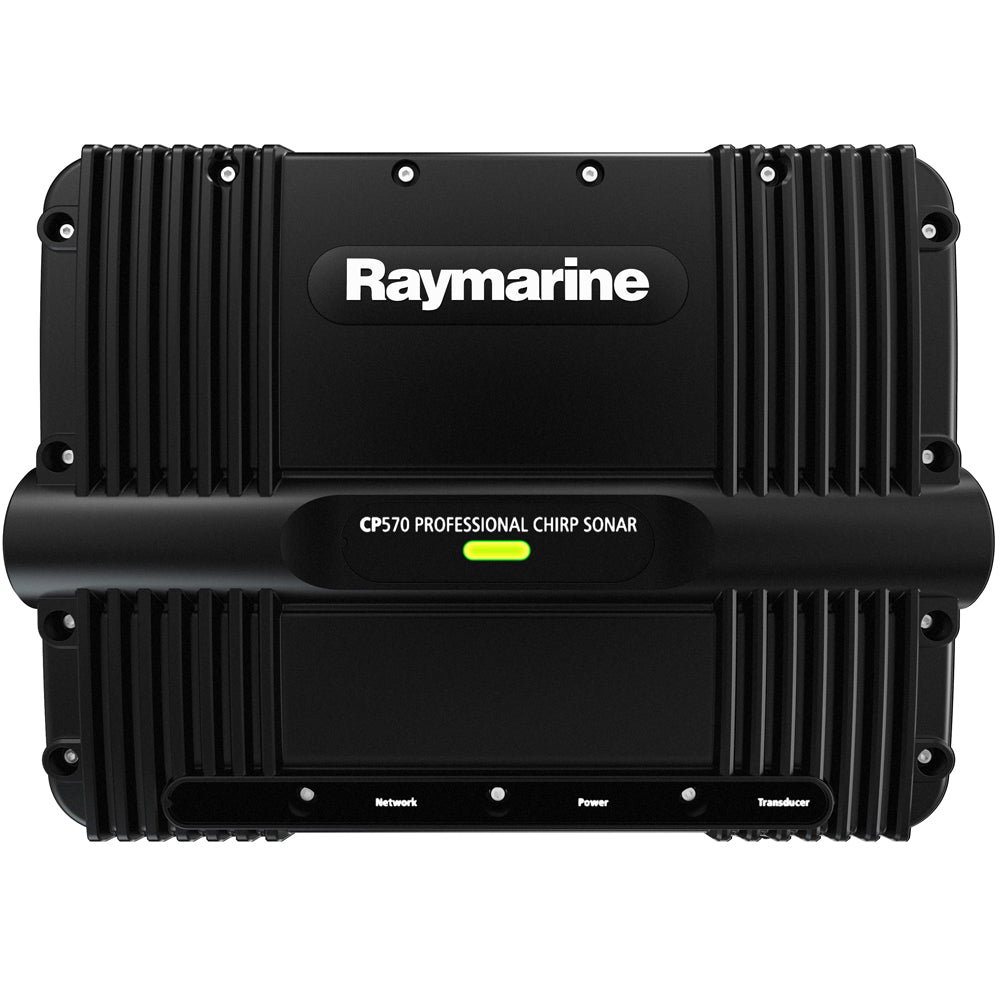

The Raymarine CP570 is a professional-grade CHIRP sonar module built for serious offshore and tournament anglers who demand precision target separation, deep-water bottom tracking, and high-resolution sonar imagery. Two fully independent 2kW CHIRP channels deliver up to 4kW combined output, letting you simultaneously monitor different depths of the water column while the module's advanced filtering strips out noise for clean, reliable readings. TruZoom™ magnification and ultra-fast ping rate processing keep you locked onto fish targets and bottom structure even in rough offshore conditions. Compatible with Raymarine aSeries, cSeries, eSeries, and gS Series multifunction displays running LightHouse II.

Specifications:

• Sonar Type: Wide Spectrum CHIRP
• Maximum Output Power: 4kW combined using 2 independent CHIRP channels
• Frequency Range: Dual independent CHIRP channels from 25 to 250kHz
• Depth Range: 10,000 ft (3,000 m)
• TruZoom™ magnification mode for enhanced target detail without resolution loss
• Automatic transducer identification via Airmar Xducer ID
• Airmar Wide Beam transducer compatible
• Optional low, medium, and high CHIRP frequency transducers available in standard or wide-beam
• Waterproofing: IPX6-rated rugged aluminum enclosure
• Compatibility: aSeries | cSeries | eSeries | gS Series
• Nominal Supply Voltage: 12/24V DC
• Power Consumption: 30.6W maximum
• Connections: Power | RayNet network connector (10/100 Mb/s) | Transducer
