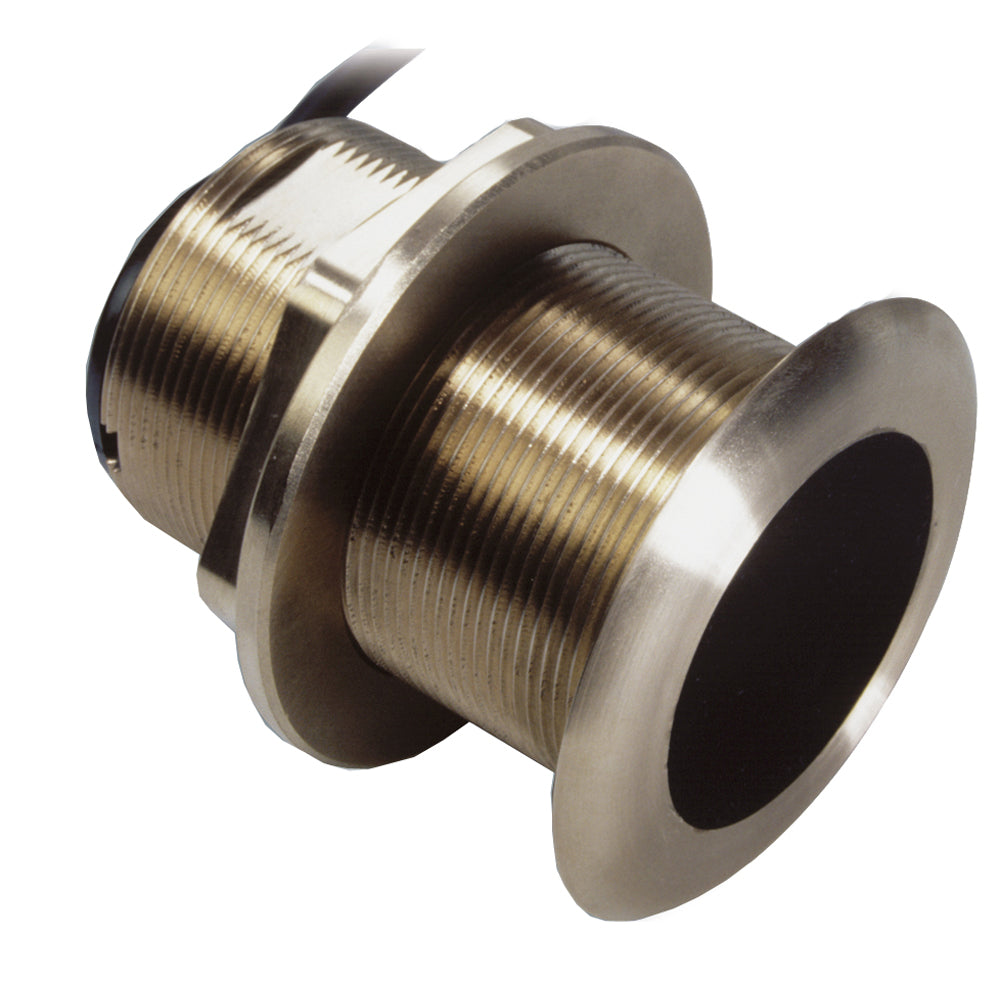

The Raymarine B60-20 is a bronze thru-hull transducer engineered for hulls with 16°–24° deadrise angles. Its internally tilted ceramic element eliminates the need for a fairing block by providing built-in deadrise compensation, projecting a true vertical sonar beam for accurate depth returns. The nearly flush profile extends only 5 mm (3/16") beyond the hull surface, keeping drag to a minimum. Compatible with Raymarine DSM250, DSM300, DSM300G, DSM30, and CP300 black-box sounders.

Specifications:

• Transducer Type: Tilted Element — 20° deadrise compensation
• Designed for hull deadrise angles: 16°–24°
• Compatible modules: Raymarine DSM250 / DSM300 / DSM300G / DSM30 / CP300
• Housing material: Bronze
• Frequencies: 50 kHz / 200 kHz
• Power: 600 W RMS
• Performance level: Mid-performance
• Sensing: Depth and Temperature
• Hull protrusion: 5 mm (3/16") — nearly flush mount
