Raymarine B60-12, 12 Degree Tilted Element Transducer f/DSM250 / DSM30 / DSM300 / DSM300G / CP300
Raymarine B60-12, 12 Degree Tilted Element Transducer f/DSM250 / DSM30 / DSM300 / DSM300G / CP300
Capt. Joel will email you the moment this lands. No spam, one message.
Similar electronics we have in stock now
Garmin ECHOMAP Ultra 2 LiveScope Plus Bundle
$2,699.99 · In stock
Garmin LiveScope™ Plus System w/GLS 10™ & LVS34 Transducer
$1,647.99 · In stock
Raymarine EV-150 Evolution Core Pack - No Drive
$1,699.99 · In stock
Not sure what fits your boat? Call (360) 504-8112

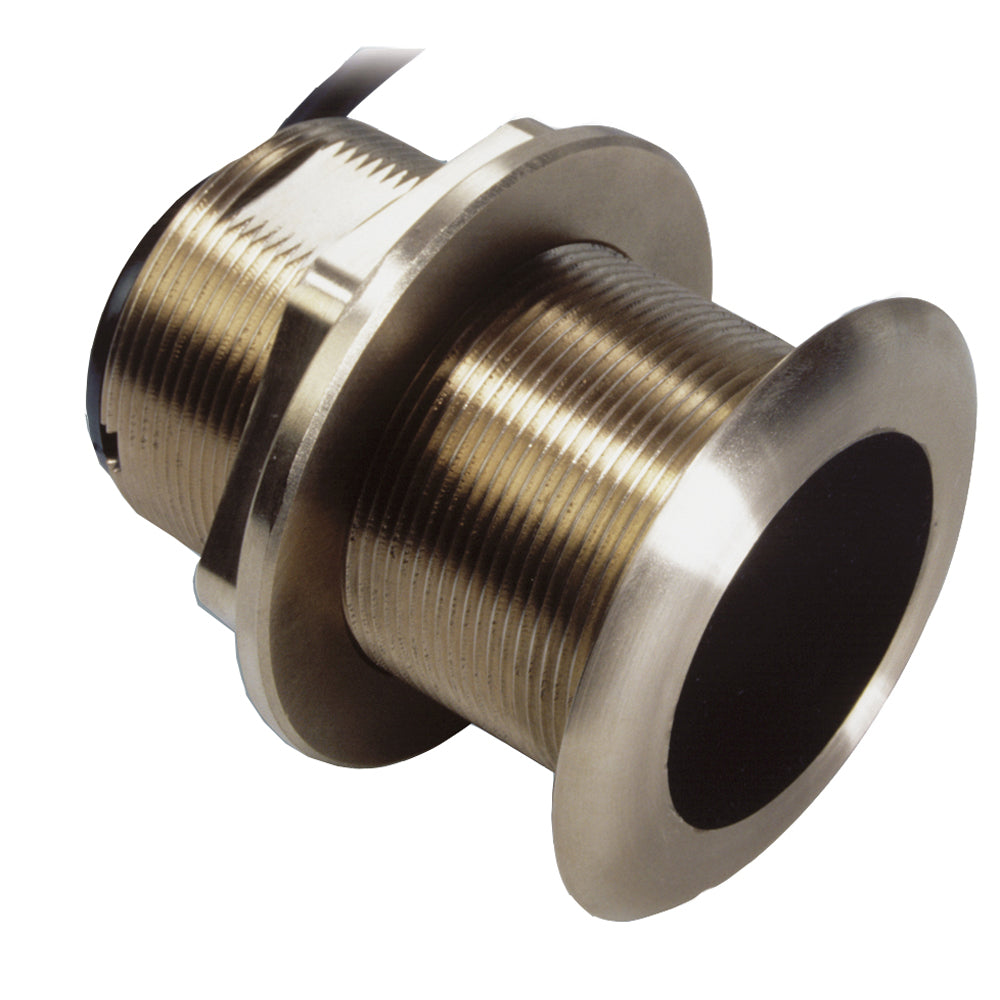

The Raymarine B60-12 is a bronze through-hull transducer with a 12° tilted internal ceramic element, engineered to deliver a true vertical beam on hulls with 8°–15° deadrise angles — no fairing block required. The nearly flush profile adds minimal drag, with only 5 mm (3/16") protruding below the hull, while the vertical beam orientation produces clean echo returns for accurate depth and temperature readings.
Specifications:
- Compatible with: Raymarine DSM250, DSM300, DSM300G, DSM30, CP300
- Deadrise compensation: 12° tilted element, suited for 8°–15° deadrise angles
- Material: Bronze housing
- Measurements: Depth and temperature
- Frequency: 50/200 kHz
- Power: 600W RMS
- Performance class: Mid-performance
- Hull protrusion: 5 mm (3/16") — nearly flush mount, no fairing required
