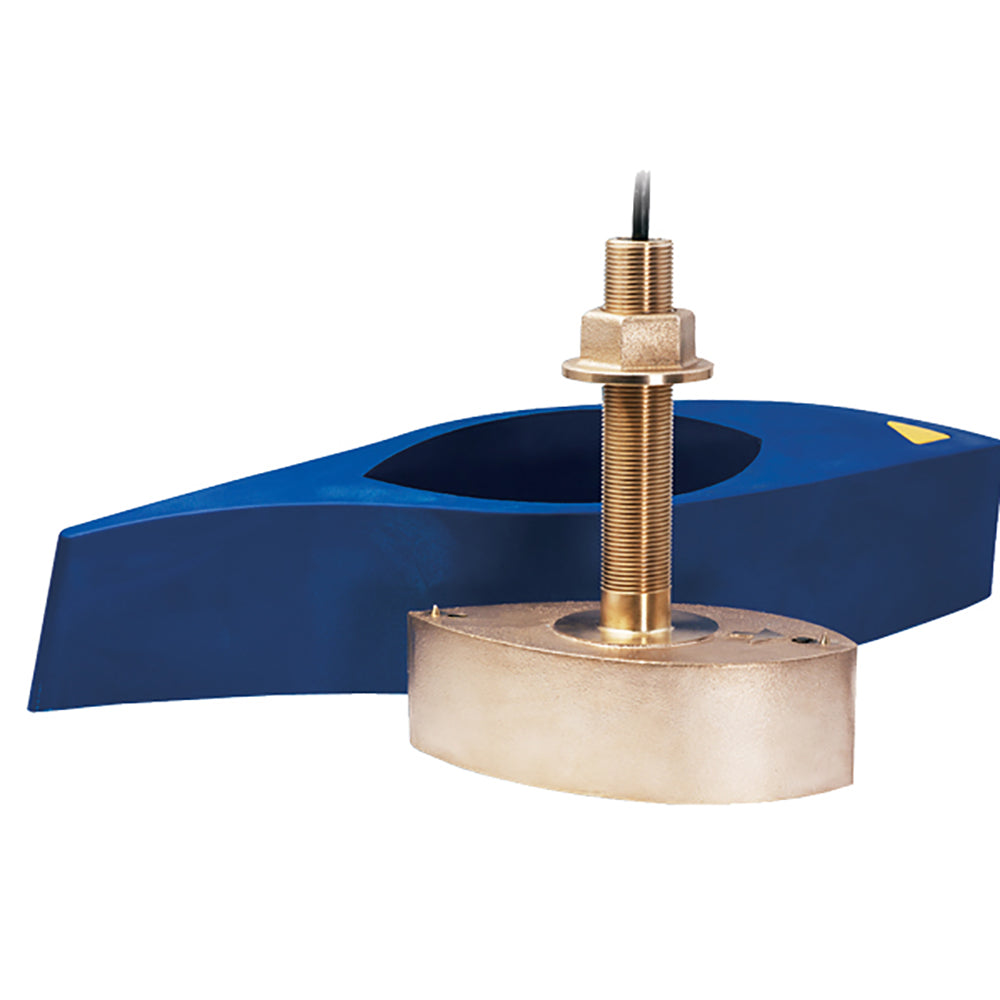

The Raymarine B265LM is a bronze CHIRP thru-hull transducer delivering both depth and temperature readings across dual frequency bands. Designed for fiberglass or wood hulls with a deadrise angle between 0° and 20°, it connects via a CP450C plug and delivers 1 kW of power for reliable bottom-tracking performance in Pacific Northwest waters.

Specifications:

• Transducer type: Depth and Temperature
• Installation: Thru-hull
• Hull deadrise: 0° to 20°
• Compatible hull materials: Fiberglass or wood
• Construction: Bronze
• Connector: CP450C plug on cable
• Frequency range: Low 42–65 kHz, Medium 85–135 kHz
• Power output: 1 kW
• Low frequency beamwidth: 25° to 16°
• Medium frequency beamwidth: 16° to 11°
