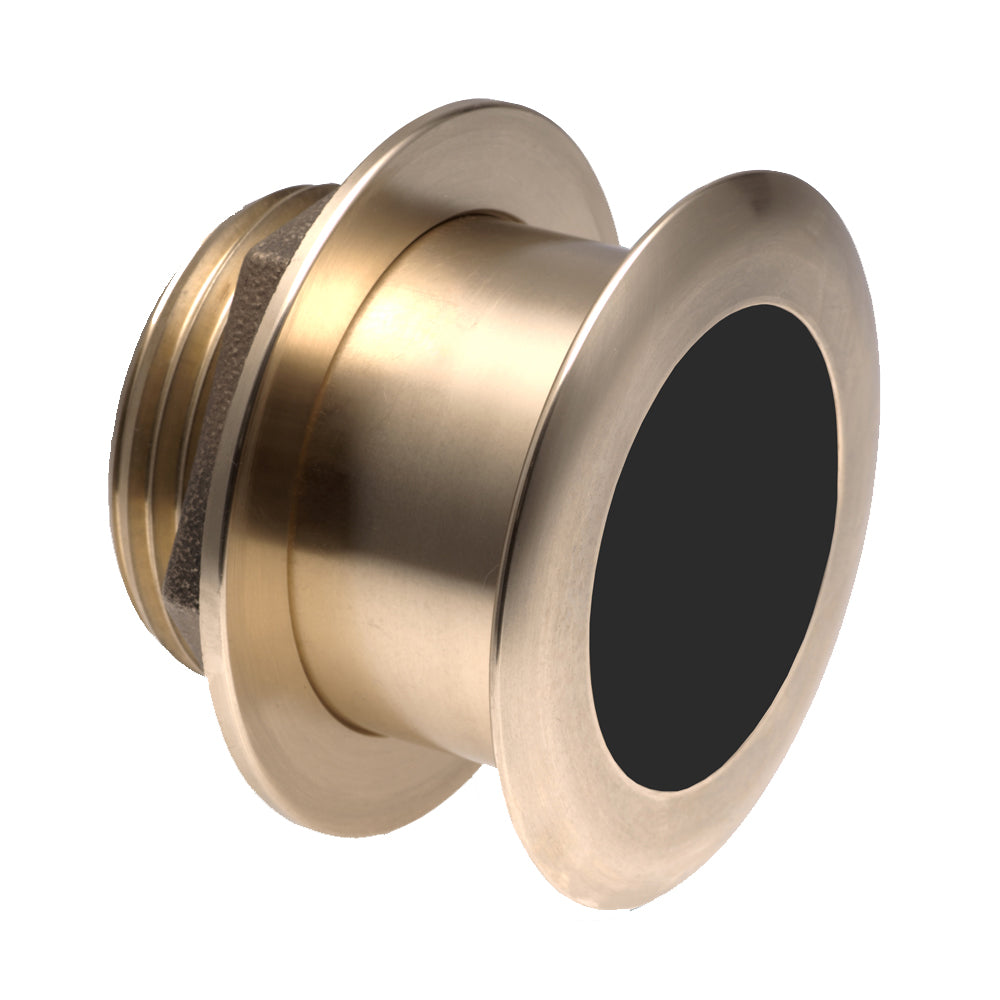

Raymarine B175H-W 20° Bronze Thru-Hull Tilted Element Transducer - 1kW
Raymarine B175H-W 20° Bronze Thru-Hull Tilted Element Transducer - 1kW
The Raymarine B175H-W is a 1kW bronze thru-hull transducer engineered for fiberglass and wood hulls with 16–24° deadrise. Its tilted-element design compensates for hull angle, keeping the sonar beam pointed straight down for accurate depth and water temperature readings down to 800 feet. The wide-beam frequency range of 150–250 kHz delivers sharp bottom detail, and the urethane-protected element holds up to the demands of saltwater use. Note that all wide-beam models ship with a 2-meter pigtail; a separate extension cable is required to complete the installation — compatible options include the 10m extension cables A80327 and A80328 for single B75/B175 operation.
Specifications:
- Installation Type: Thru-hull
- Element Material: Urethane
- Housing Material: Bronze
- Power (RMS): 1kW
- Maximum Depth: 800 ft
- Frequency: 150–250 kHz
- Records: Depth and temperature
- Approved Hull Materials: Fiberglass, wood
- Supported Deadrise: 16–24°
- Cable Length: 6 ft (2 m) pigtail
- Compatible Extension Cables: A80327, A80328 (10m, single B75/B175 operation)
