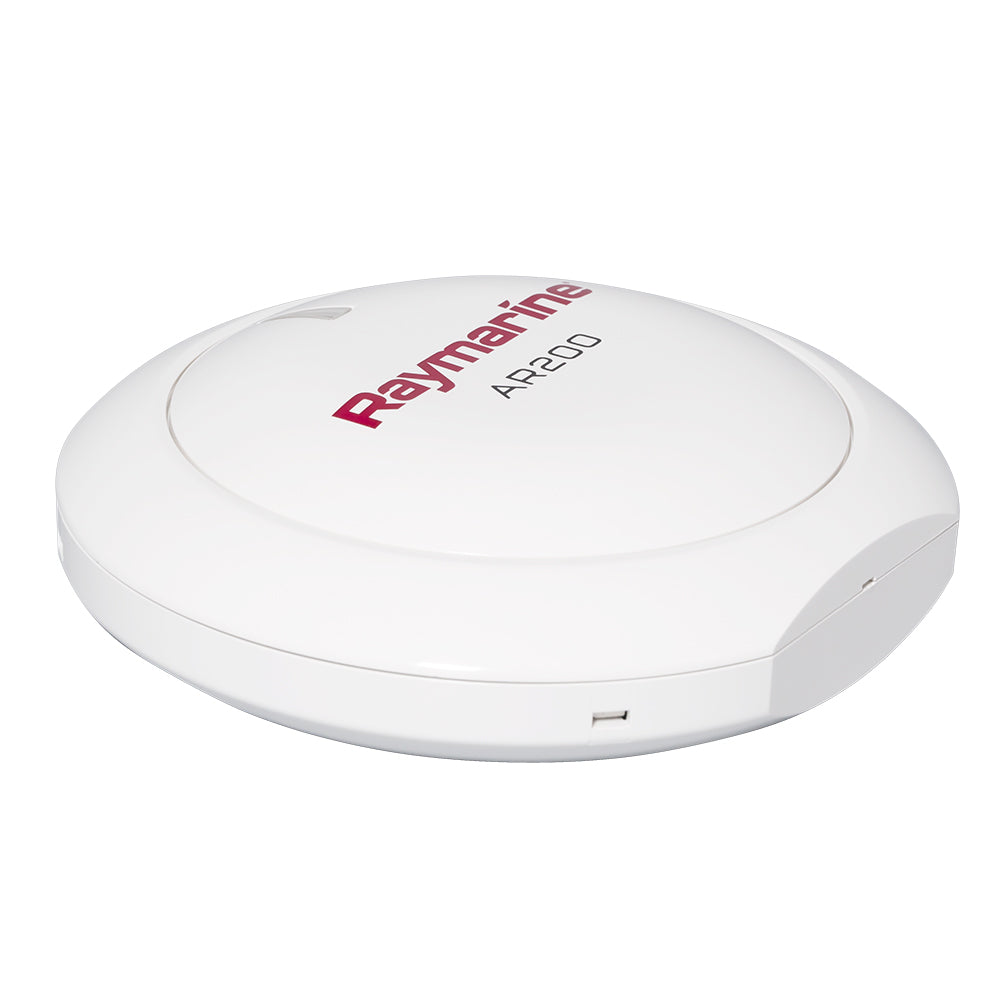

The Raymarine AR200 combines a 28-channel GNSS receiver with a 9-axis Attitude and Heading Reference System (AHRS) sensor to deliver real-time position, heading, pitch, and roll data to compatible Axiom multifunction displays. Paired with a compatible IP camera, it unlocks ClearCruise™ Augmented Reality overlays directly on your Axiom MFD — giving you a sharper, data-enriched view of your surroundings on the water.

Specifications:

• 9-axis AHRS (Attitude and Heading Reference System) sensor
• 28-channel GPS receiver
• 10 Hz position update rate
• Satellite differential GPS compatible; Space-Based Augmentation System (SBAS) enabled with WAAS, EGNOS, MSAS, and GAGAN support
• Enables ClearCruise™ Augmented Reality features on compatible Axiom MFDs when used with a compatible IP camera
• NMEA 2000 compliant
• IPX6 / IPX7 waterproof rating

In the Box:

• AR200 module
• Mounting trim (top)
• Mounting tray (bottom)
• Bulkhead (wall) bracket
• 3x large bulkhead bracket fixings (pan head pozi DIN7981-ST 3.9x22 C Z A4 stainless steel)
• 4x small surface mount fixings (pan head pozi DIN7981-ST 2.9x13 C Z A4 stainless steel)
• Small sealing ring
• Large sealing ring
• 6 m (19.7 ft) SeaTalkNG white cable
• Documentation

Resources:

• Installation Guide (PDF)
