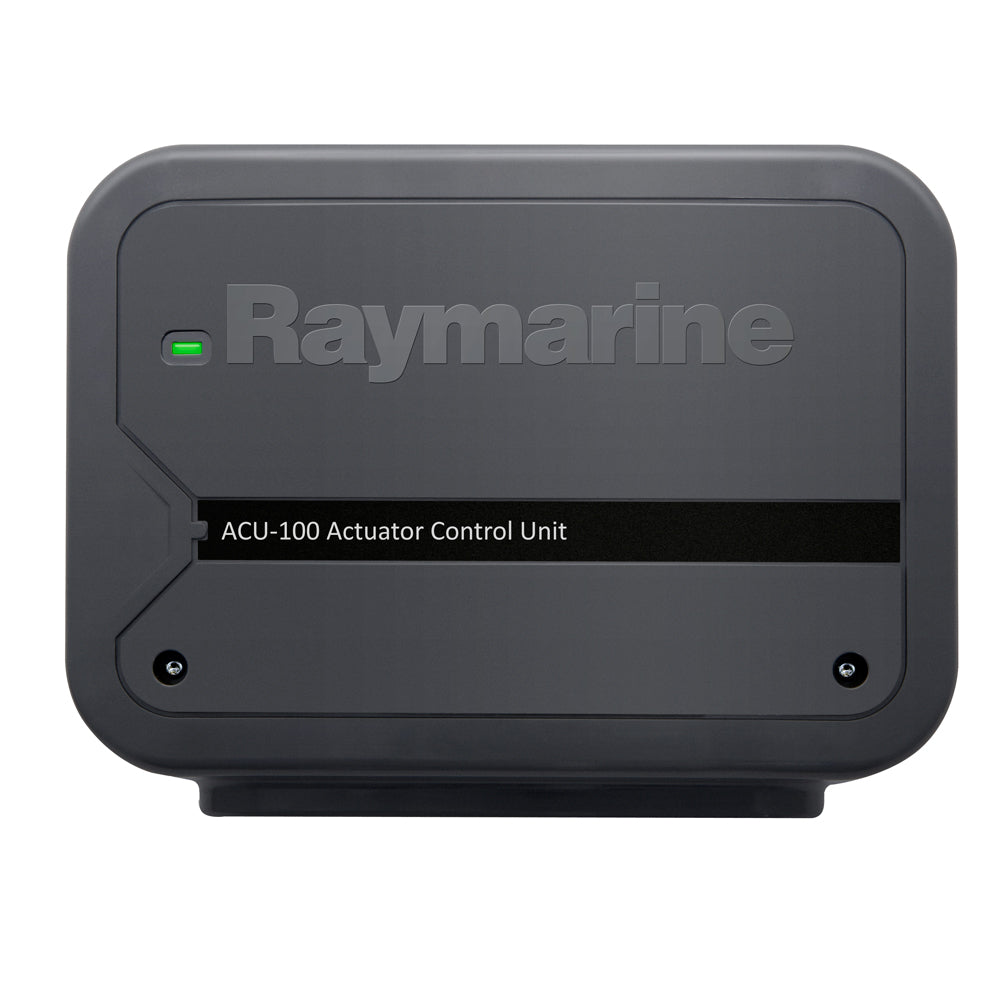

The Raymarine ACU-100 Actuator Control Unit delivers reliable autopilot drive power to your steering system while connecting directly to your SeaTalk^ng network. Designed for 12V linear or mechanical drive systems, this compact unit handles continuous drive current demands and fits neatly into protected helm or below-deck installations.

Specifications:

• Drive Current Output: 7 A continuous maximum at supply voltage
• Drive Clutch Output: No clutch connection
• Connections: Rudder reference sensor, power, drive motor, ground
• Nominal Supply Voltage: 12 V
• Operating Voltage Range: 10.8 V to 15.6 V DC
• Power Consumption (Standby, Main Power Supply): 300 mA at 12 V
• Power Consumption (Standby, SeaTalk^ng Supply): No power supply to SeaTalk^ng
• SeaTalk^ng LEN (Load Equivalency Number): 1
• SeaTalk^ng Power Out: No power supply to SeaTalk^ng
• Data Connections: SeaTalk^ng
• Operating Temperature: -20°C to +55°C (-4°F to +131°F)
• Storage Temperature: -30°C to +70°C (-22°F to +158°F)
• Relative Humidity: 93% maximum
• Waterproof Rating — Connector Panel: IPX2
• Waterproof Rating — Drive Electronics: IPX6
• Dimensions (W x H x D): 180 mm x 140 mm x 52 mm (7.1 in x 5.5 in x 2.0 in)
• Weight: 0.6 kg (1.32 lbs)
• Conformance — Europe: 2004/108/EC
• Conformance — Australia and New Zealand: C-Tick, Compliance Level 2
