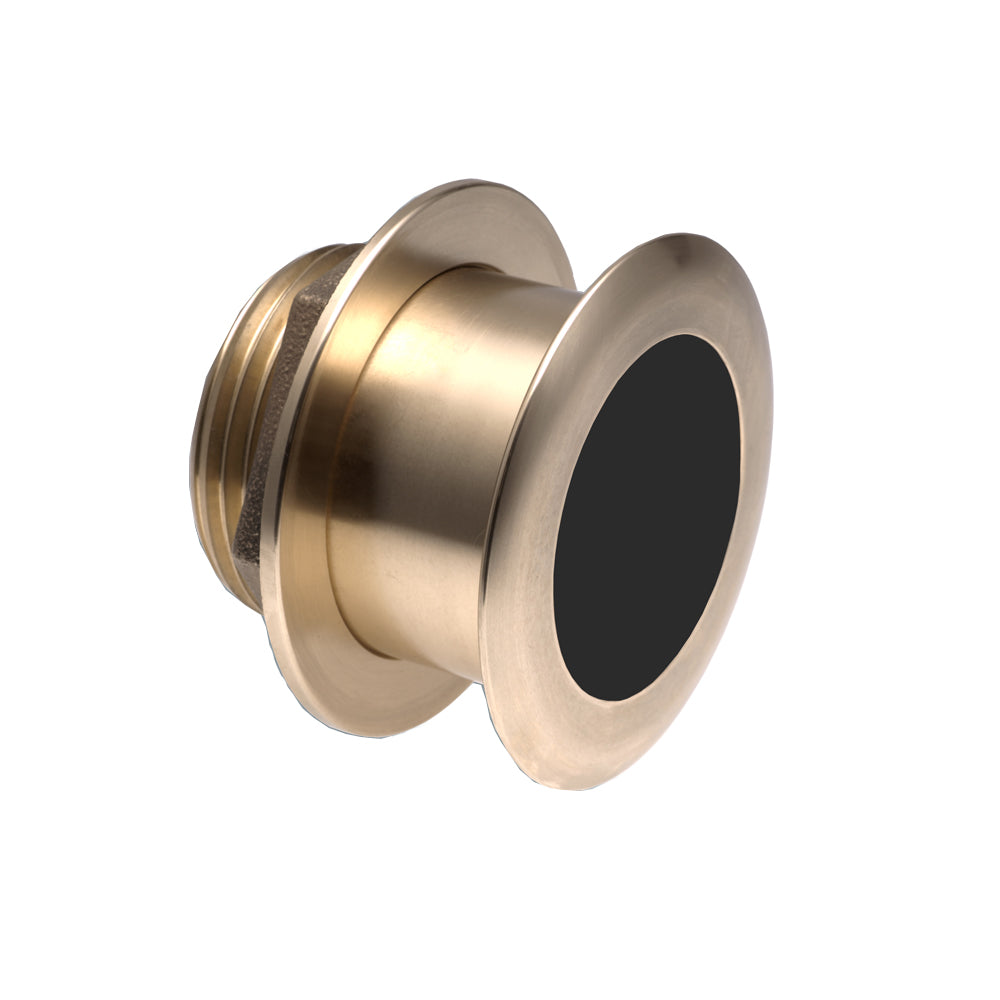

The Raymarine B164 Tilted Element transducer delivers 1kW of high-performance sonar power in a low-profile bronze housing — no fairing required. Designed for hulls with 16°–24° deadrise angles, the 20° tilted version keeps the ceramic array angled inside the housing so the beam fires straight down regardless of hull geometry. The flush-mount design protrudes less than 6.35 mm below the hull surface, making it fully compatible with trailer rollers and bunks. Compatible with Raymarine DSM250 and DSM300 sounder modules.

Specifications:

• Model: B164 Tilted Element
• Tilt angle: 20° (designed for 16°–24° deadrise hulls)
• Power: 1 kW RMS
• Frequencies: 50/200 kHz
• Sensing: Depth and temperature
• Housing material: Bronze
• Hull protrusion: Less than 6.35 mm (0.25 in)
• Mount style: Flush mount, no fairing required
• Compatible with: Raymarine DSM250 and DSM300 sounder modules
• Trailer-safe: Compatible with rollers and bunks

Resources:

• Owner's Manual (PDF)
• Product Brochure (PDF)
