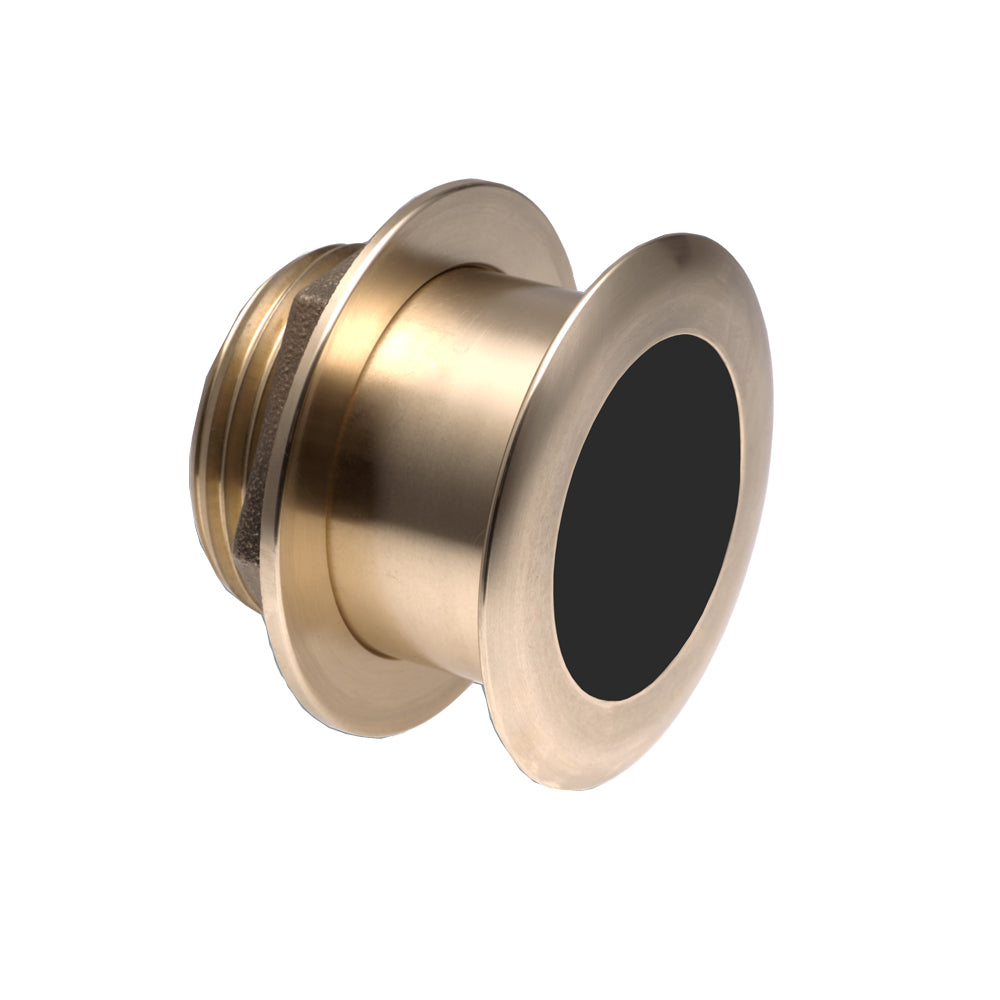

The Raymarine B164 Tilted Element transducer brings 1kW performance to hulls with 8°–15° deadrise angles — no fairing required. The flush-mount bronze housing extends less than 6.35 mm (0.25 in) below the hull, so it sits safely on trailer rollers and bunks without risk of damage. Inside the housing, ceramic arrays are angled to deliver a perfectly vertical beam, keeping maximum sonar energy focused directly beneath the boat. Compatible with Raymarine DSM250 and DSM300 sounder modules.

Specifications:

• Model: B164 Tilted Element
• Tilt angle: 12 degrees (designed for 8°–15° deadrise hulls)
• Compatible modules: Raymarine DSM250, DSM300
• Frequencies: 50/200 kHz
• Power output: 1 kW RMS
• Sensing: Depth and temperature
• Housing material: Bronze
• Hull protrusion: Less than 6.35 mm (0.25 in)
• Mount style: Flush mount, no fairing required
• Trailer compatible: Yes — safe on rollers and bunks

Resources:

• Owner's Manual (PDF)
• Product Brochure (PDF)
