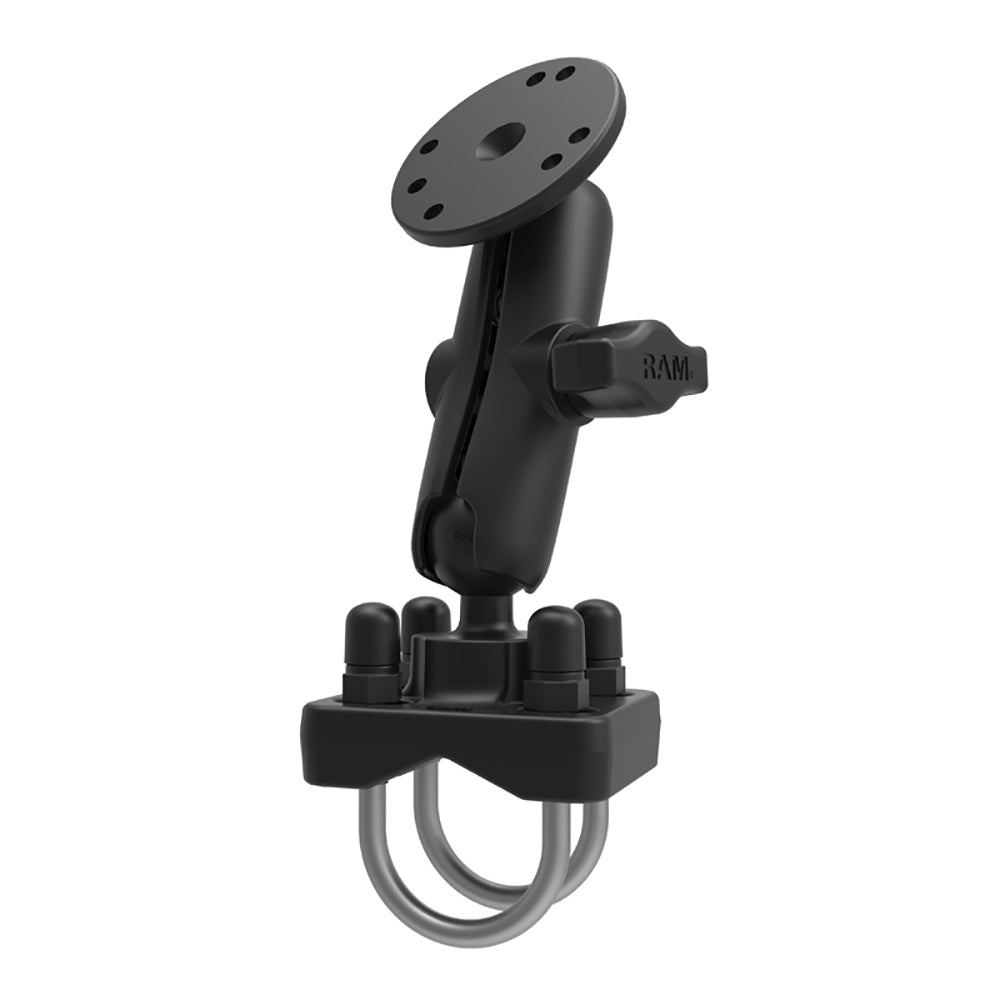

RAM® Double U-Bolt Rail Mount for Smaller Rails

The RAM-B-101-235U consists of a double socket arm, one round 2.5" diameter round base with the universal AMPS hole pattern and stainless steel double u-bolt base that will fit pipes from 1" to 1.25" in diameter. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles.

Hardware Included:

• (2) 1/4"-20 U-Bolts for 1" - 1.25" Rails
• (4) 1/4"-20 Nylock Nuts
• (4) Rubber Caps

Features:

• CLAMP RANGE: 1" - 1.25" diameter
• SOCKET-TO-SOCKET LENGTH: 3"
• HOLE PATTERN: 4-Hole AMPS: 1.181" x 1.496", 3-Hole 120-Degree: 1.812" Diameter
• BALL/SOCKET SIZE: B Size (1")
• WEIGHT CAPACITY: 2 lbs
• MATERIAL: Marine-grade aluminum
