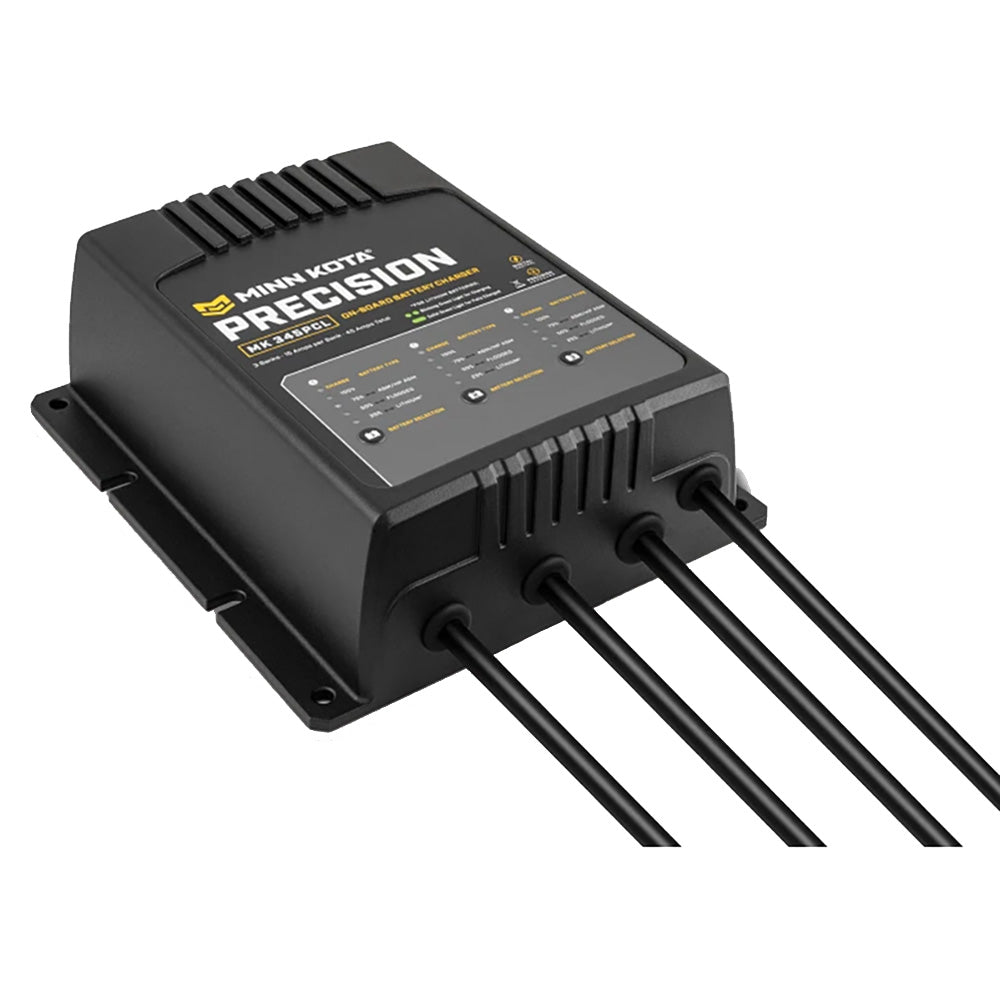

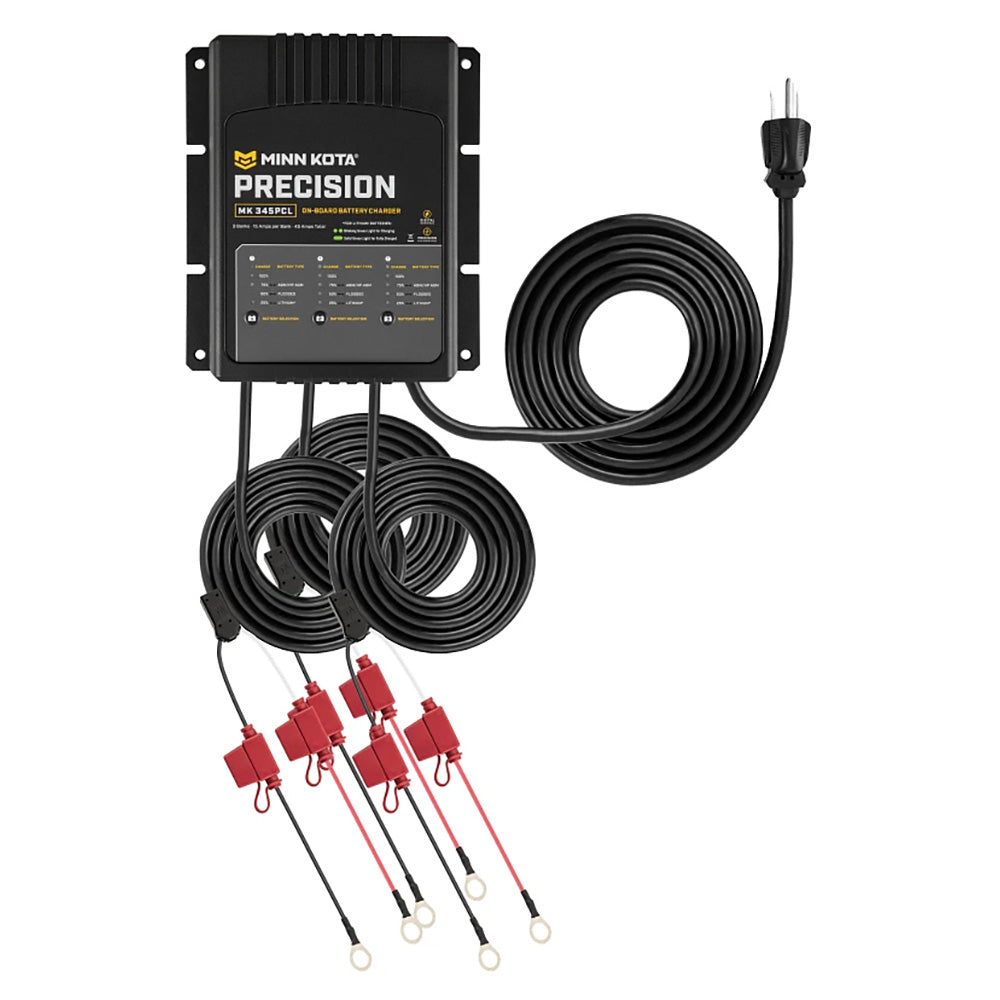

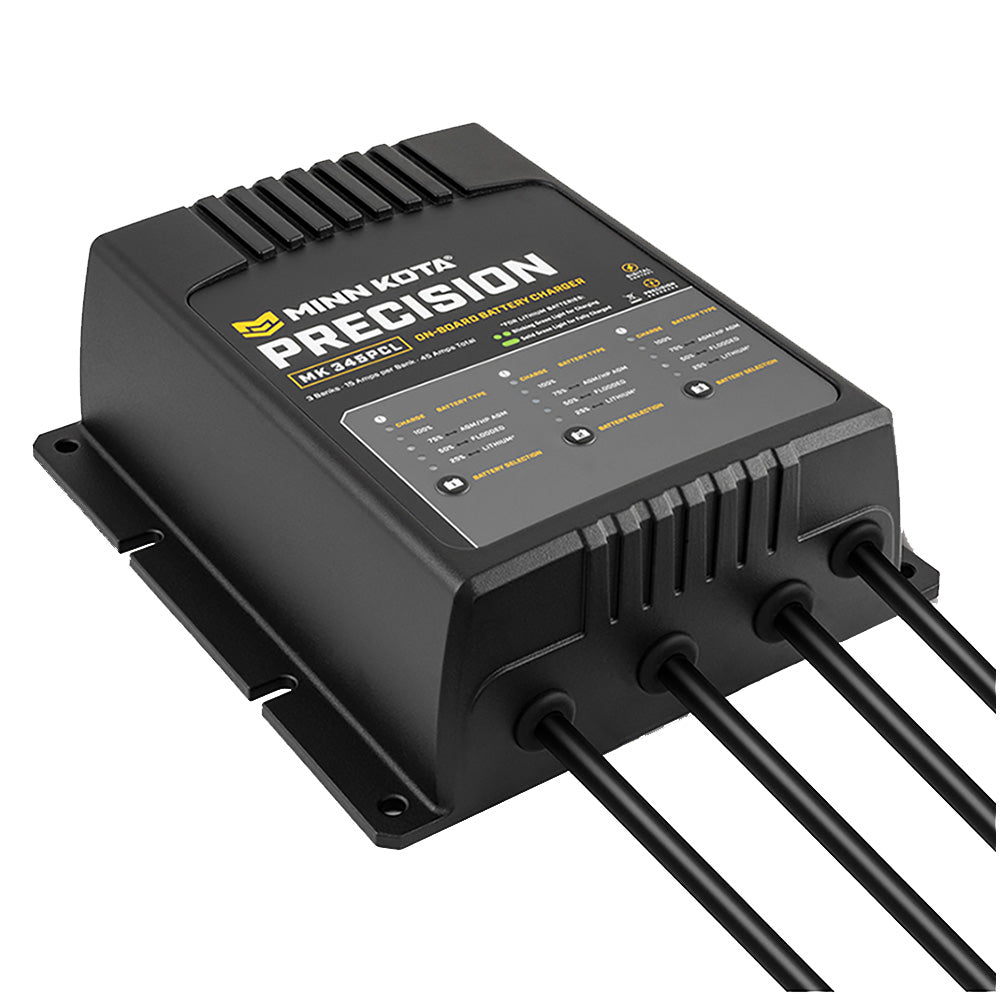

The Minn Kota MK-345 PCL is a 3-bank, 45-amp total on-board charger optimized for 12-volt LiFePO4 lithium batteries — while also supporting AGM and flooded lead-acid chemistries. Per-bank battery-type selection, automatic temperature compensation, and microprocessor-driven multi-stage charging keep each battery receiving a precise, protected charge every cycle. The digital control system can even recover a dead lithium battery from standby automatically, and waterproof, shock- and vibration-resistant construction makes it a reliable permanent install on any vessel.

Specifications:

• Charger Style: On-Board
• Banks: 3
• Output per Bank: 15 amps
• Total Wattage: 470W
• Charge Time: 3–5 hours
• Power Source: On-Shore AC (120V)
• Compatible Battery Types: 12V Lithium (LiFePO4), 12V AGM, 12V Flooded Lead Acid
• 12V Lithium LiFePO4 Optimized: Yes
• Battery Type Selection: Per-bank selection for Lithium (LiFePO4), AGM, or flooded lead acid
• Automatic Temperature Compensation: Yes — senses and adjusts to ambient temperature for accurate charging
• Low-Line Voltage Compensation: Yes — compensates when AC outlet output falls below 120V
• Battery Equalization: Yes — automatic cleaning/protection each cycle (flooded lead-acid); manual deep-equalization available on demand
• Digital Control: Microprocessor-based; automatically wakes dead 12V LiFePO4 batteries from standby
• Automatic Multi-Stage Charging: Yes
• LED Indicator Lights: Yes — displays charge stage, maintenance mode, error notifications, and full-charge status
• Waterproof Construction: Yes — also shock-resistant and vibration-resistant
• Saltwater Compatible: Yes
• Battery Connection: Ring Terminal
• Power Cord Length: 8.5 ft
• Battery Lead Length: 6 ft
• Product Dimensions: 3.25 in × 8.5 in × 9.5 in
• Product Weight: 15.6 lb
• Warranty: 3-year full replacement warranty
