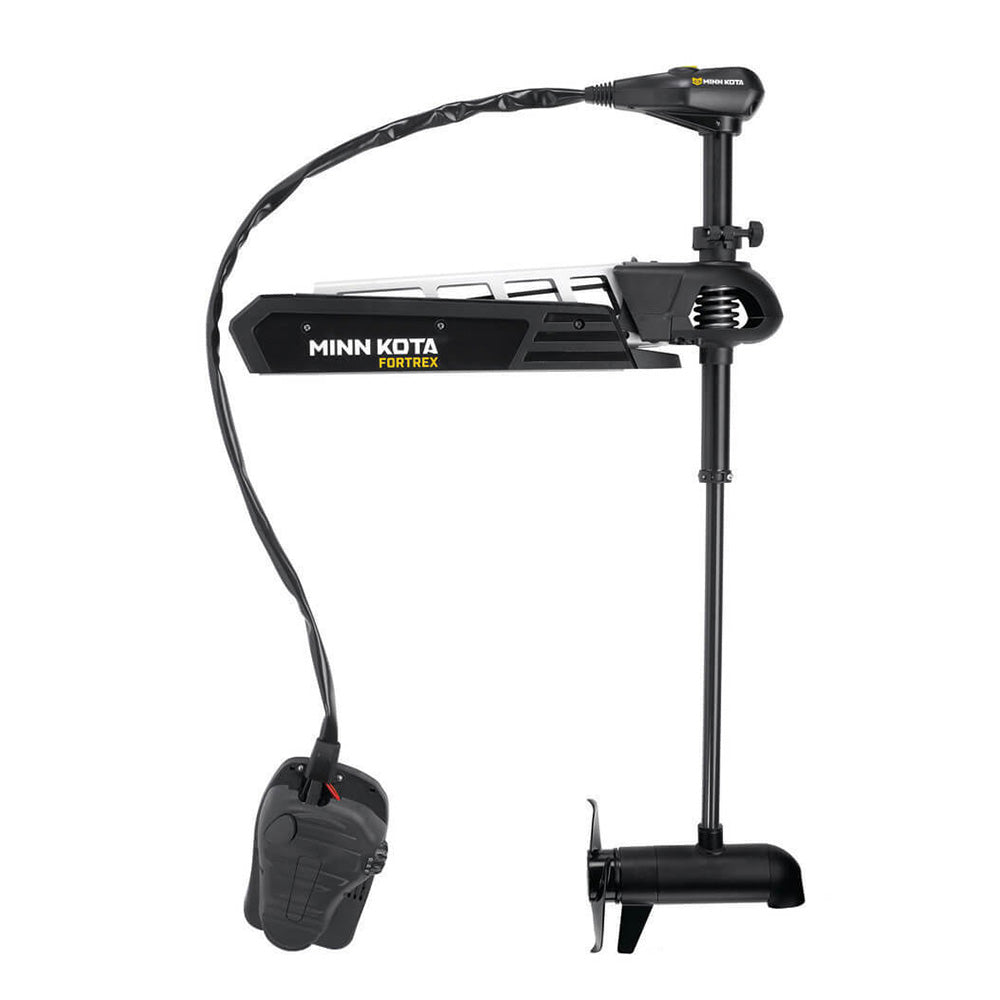

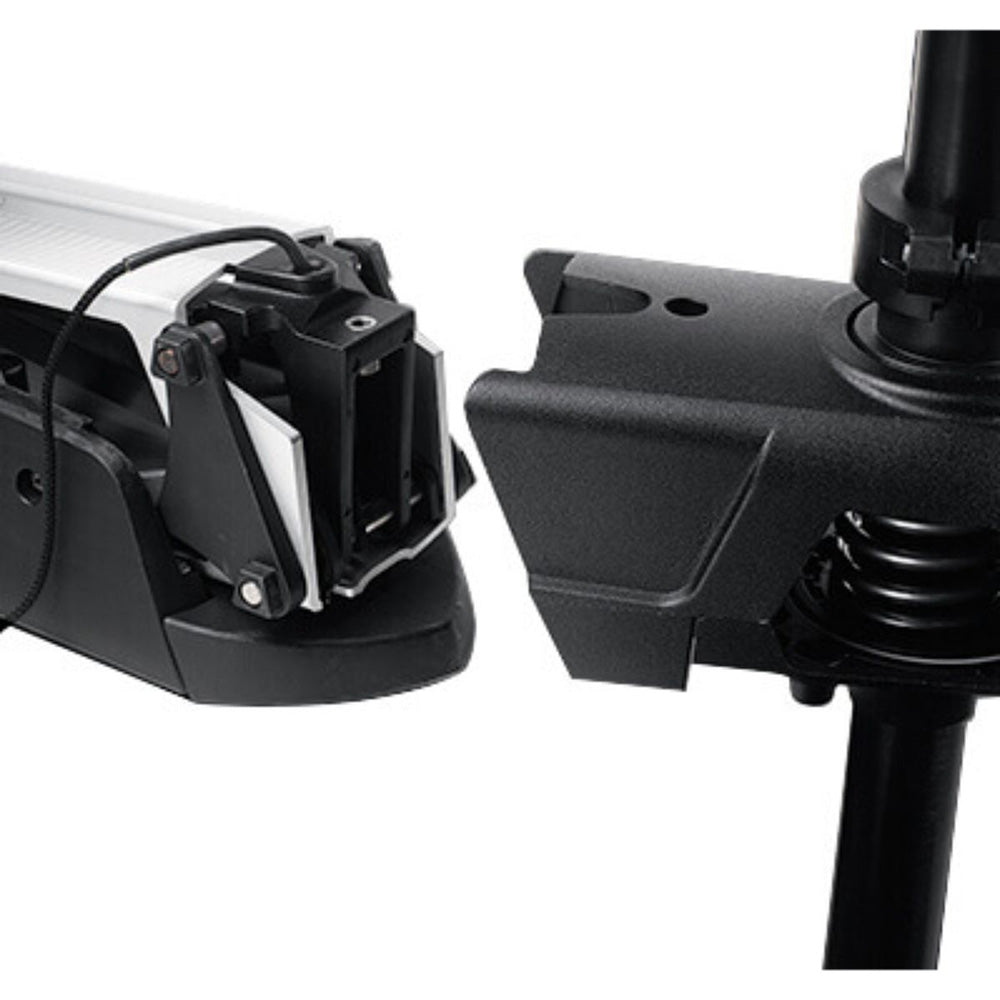

The Minn Kota Fortrex 80 is a 24-volt, 80-pound-thrust bow-mount trolling motor built around an anodized aluminum Mono-Arm Design, a patented Lift-Assist mount, and built-in Dual Spectrum CHIRP sonar that routes the transducer and all wiring internally through the shaft. A Removable Bowguard 360° bracket breaks away on impact from any angle and resets automatically, while the Counter-Tension Stabilizer eliminates play and steering torque for years of silent operation. The indestructible composite shaft carries a lifetime guarantee from Minn Kota.

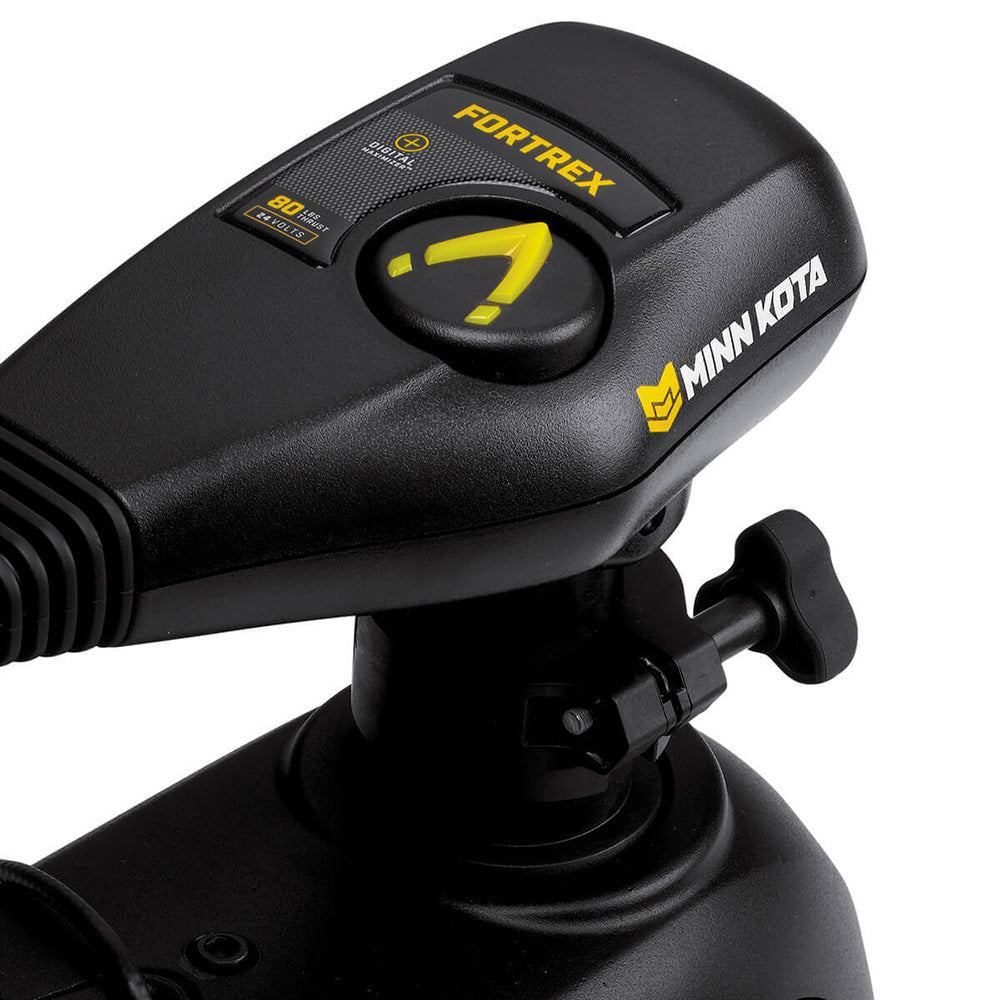

The heel-toe cable-steer foot pedal delivers ultra-responsive speed and direction control, and the Digital Maximizer provides up to five times longer run time per charge by delivering only the power actually needed. Humminbird CHIRP sonar covers a wide frequency range for more accurate, detailed returns of fish, structure, and bottom compared to traditional sonar. The Weedless Wedge 2 prop uses swept-back flared blades to power through weeds and debris without the battery drain of chopping and hacking.

Specifications:

• Use Environment: Freshwater
• Shaft Length: 45" (also available in 52")
• Max Thrust: 80 lbs.
• Voltage: 24V
• Max Amp Draw: 56A
• Motor Style: Cable-steer
• Mount Style: Mono-arm
• Mounting Location: Bow-mount
• Control: Foot pedal (heel-toe / cable-steer)
• Speeds: Variable
• Digital Maximizer: Yes
• Lift-Assist: Yes (stainless steel, nitrogen gas-charged spring)
• Bowguard: Yes — Removable Bowguard 360° with dual-bearing system
• Counter-Tension Stabilizer: Yes
• Built-In Sonar: Dual Spectrum CHIRP
• Illuminated Directional Indicator: Yes
• Push-to-Test Battery Meter: Yes
• Prop: Weedless Wedge 2
• Composite Shaft: Indestructible, guaranteed for life
• Spot-Lock: No
• AutoPilot: No
• Wireless Remote: No
• Power Trim: No
• Power Steering: No
• Auto Stow/Deploy: No
• One-Boat Network Compatible: No
• QUEST Series: No

Available in 45" and 52" -- choose your option below.
